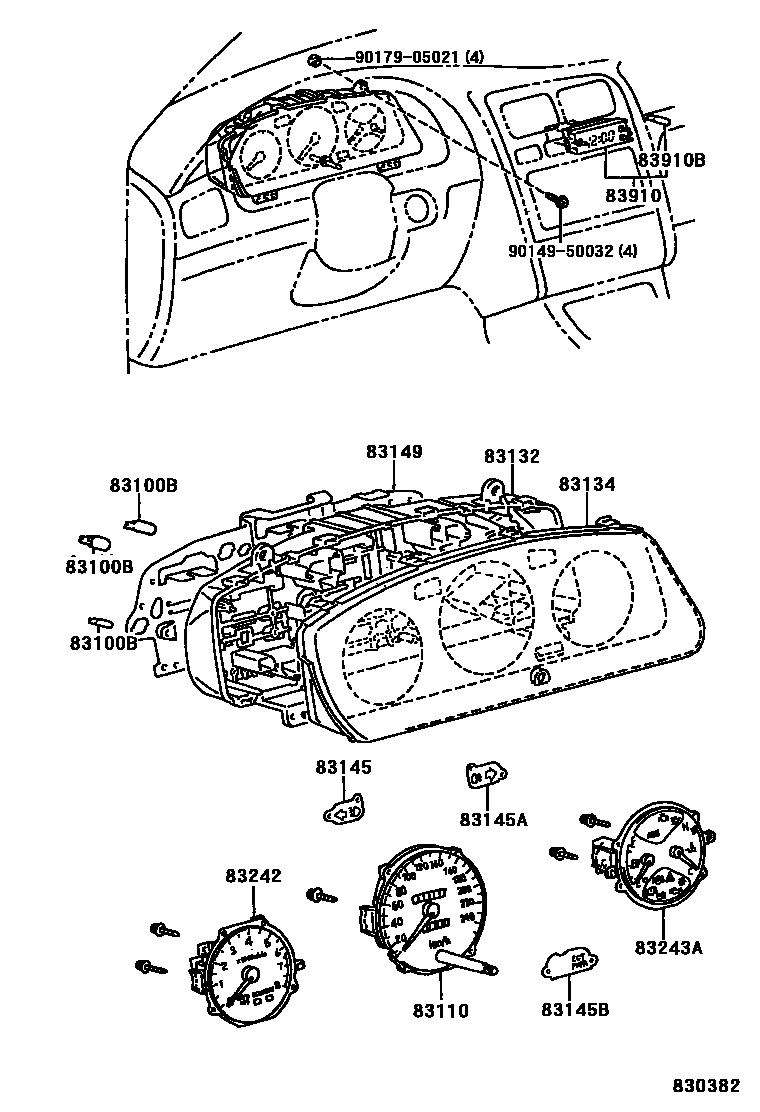

METER

0001 1W(TACHOMETER) VDO 0002 1

83100BBULB, COMBINATION METER, NO.1

main83120-05010×14iAT190,CT190,ST191..UKP..MTM; AT190..UKP..ATM; ST191..UKP..ATM199601-199710

12V 1.2W

main83120-05020×3iAT190,CT190,ST191..UKP199601-199710

12V 3.4W

main83120-05030×4iAT190,CT190,ST191..UKP199601-199710

12V 3.4W,GREEN CAP

83110SPEEDOMETER ASSY

main83110-05021iAT190,ST191..UKP199601-199710

main83110-05042iAT190,ST191..UKP199601-199710

W(TACHOMETER)

main83110-05081iCT190..UKP199601-199710

83132CASE, COMBINATION METER

main83841-05060iAT190,CT190,ST191..UKP199601-199710

83134COVER, COMBINATION METER, NO.1

main83138-05020iAT190,CT190,ST191..UKP199601-199710

83145LENS, METER, NO.1

main83145-05010iAT190,CT190,ST191..UKP199601-199710

83145ALENS, METER, NO.2

main83145-05020iAT190,CT190,ST191..UKP199601-199710

83145BLENS, METER, NO.3

main83831-05060iAT190,CT190,ST191..UKP199601-199710

83149PLATE, METER CIRCUIT

main83861-05060iAT190,ST191..UKP199601-199710

main83861-05200iCT190..UKP199601-199710

83242TACHOMETER ASSY, ENGINE

main83881-05060iAT190..UKP..MTM199601-199710

main83881-05070iAT190..UKP..ATM199601-199710

main83881-05100iST191..UKP..MTM199601-199710

main83881-05110iST191..UKP..ATM199601-199710

main83881-05140iCT190..UKP199601-199710

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-05060iAT190..UKP199601-199710

main83882-05100iST191..UKP199601-199710

main83882-05200iCT190..UKP199601-199710

83910CLOCK ASSY

main83910-05020iAT190,CT190,ST191..UKP199601-199710

83910BBULB, CLOCK INDICATOR

main90011-11003iAT190,CT190,ST191..UKP199601-199710

9014950032

main90149-50032

9017905021

main90179-05021

14 parts on this diagram · 2 diagrams in section
