WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1CLAMP & BRACKET 0006 1CLAMP & BRACKET 0007 1BATTERY CABLE 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1DOOR, ROOF 0011 1FLOOR, LUGGAGE 0012 1FLOOR, LUGGAGE 0013 1CABLE BOND

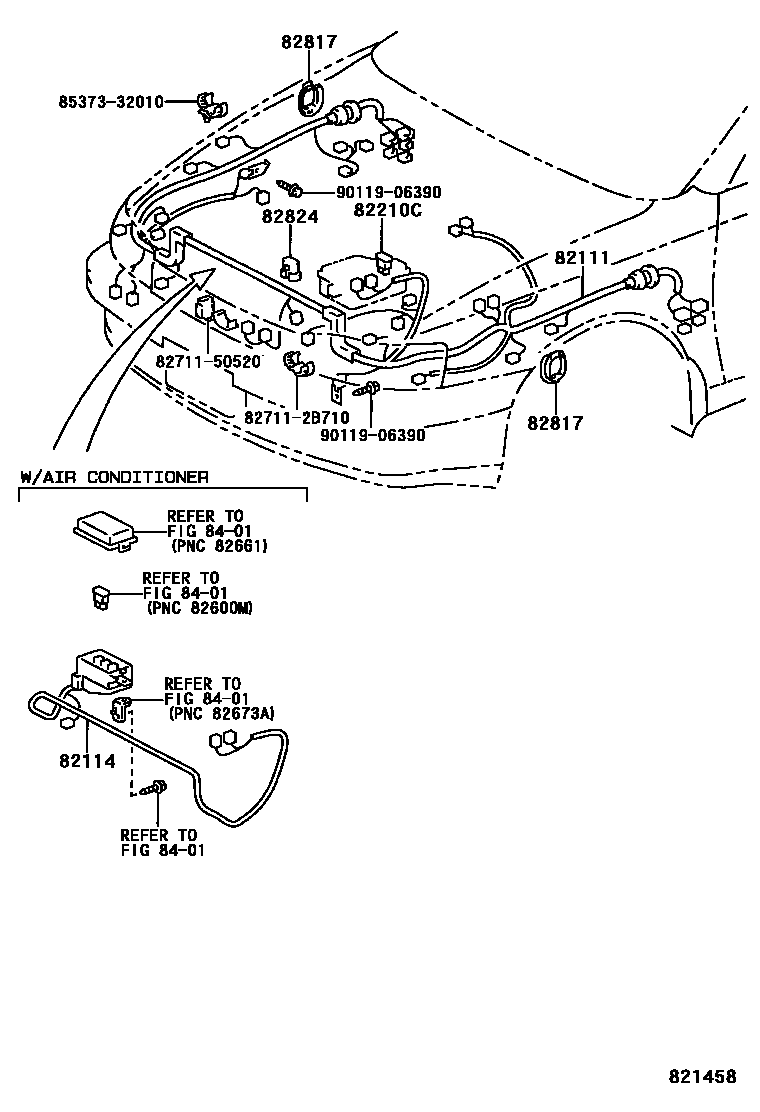

82111WIRE, ENGINE ROOM MAIN

main82111-05590iAT190..UKP..RHD199601-199710

main82111-05600iAT190..UKP..LHD199601-199710

main82111-05610iST191..UKP..RHD199601-199710

main82111-05620iST191..UKP..LHD199601-199710

main82111-05630iCT190..UKP199601-199710

82114WIRE, ENGINE ROOM, NO.4

main82114-20180iAT190,ST191..UKP199601-199710

82210CFUSIBLE LINK

main90982-08189iAT190,CT190..UKP199601-199710

40A,TERM.:FEMALE,GRN

main90982-08203iCT190..UKP199601-199710

80A,TERM.:MALE,BLK

main90982-08227iAT190,CT190,ST191..UKP199601-199710

50A,TERM.:FEMALE,RED

main90982-08246iAT190,CT190,ST191..UKP199601-199710

100A,TERM.:MALE,BLUE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2D040iAT190,CT190,ST191..UKP199601-199710

FENDER RH

main82817-2D090iAT190,CT190,ST191..UKP199601-199710

COWL

82824CONNECTOR, WIRING HARNESS

main82824-20050iAT190,CT190,ST191..UKP199601-199710

8401

827112B710WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B710

8271150520WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50520

8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32010

9011906390

main90119-06390

10 parts on this diagram · 13 diagrams in section
