INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-05010-B0iAT190,CT190,ST191..UKP199601-199710

GRAY,TRIM1#,8#

main81240-32031-B0iAT190,CT190,ST191..UKP199601-199710

W(MOON ROOF),GRAY,TRIM1#,8#

81240BBULB, ROOM LAMP, NO.1

main90080-81047iAT190,CT190,ST191..UKP199601-199710

12V 10W

main90981-14004iAT190,CT190,ST191..UKP199601-199710

12V 8W,W(MOON ROOF)

81241LENS, ROOM LAMP, NO.1

main81241-32031iAT190,CT190,ST191..UKP199601-199710

81260LAMP ASSY, GLOVE BOX

main81260-05010iAT190,CT190,ST191..UKP199601-199710

81260ALAMP ASSY, MAP

main81260-20180-B0iAT190,CT190,ST191..UKP199601-199710

GRAY,TRIM1#,8#

81260BBULB(FOR GLOVE BOX)

main84999-05010iAT190,CT190,ST191..UKP199601-199710

12V 1.02W

81260CBULB(FOR MAP LAMP)

main90981-12014iAT190,CT190,ST191..UKP199601-199710

12V 10W

81261LENS AND COVER, MAP LAMP

main81261-20180-B0iAT190,CT190,ST191..UKP199601-199710

GRAY,TRIM1#,8#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-05010iAT190,CT190,ST191..UKP199601-199710

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81048iAT190,CT190,ST191..UKP199601-199710

12V 5.0W

9016445006

main90164-45006

9356054014

main93560-54014

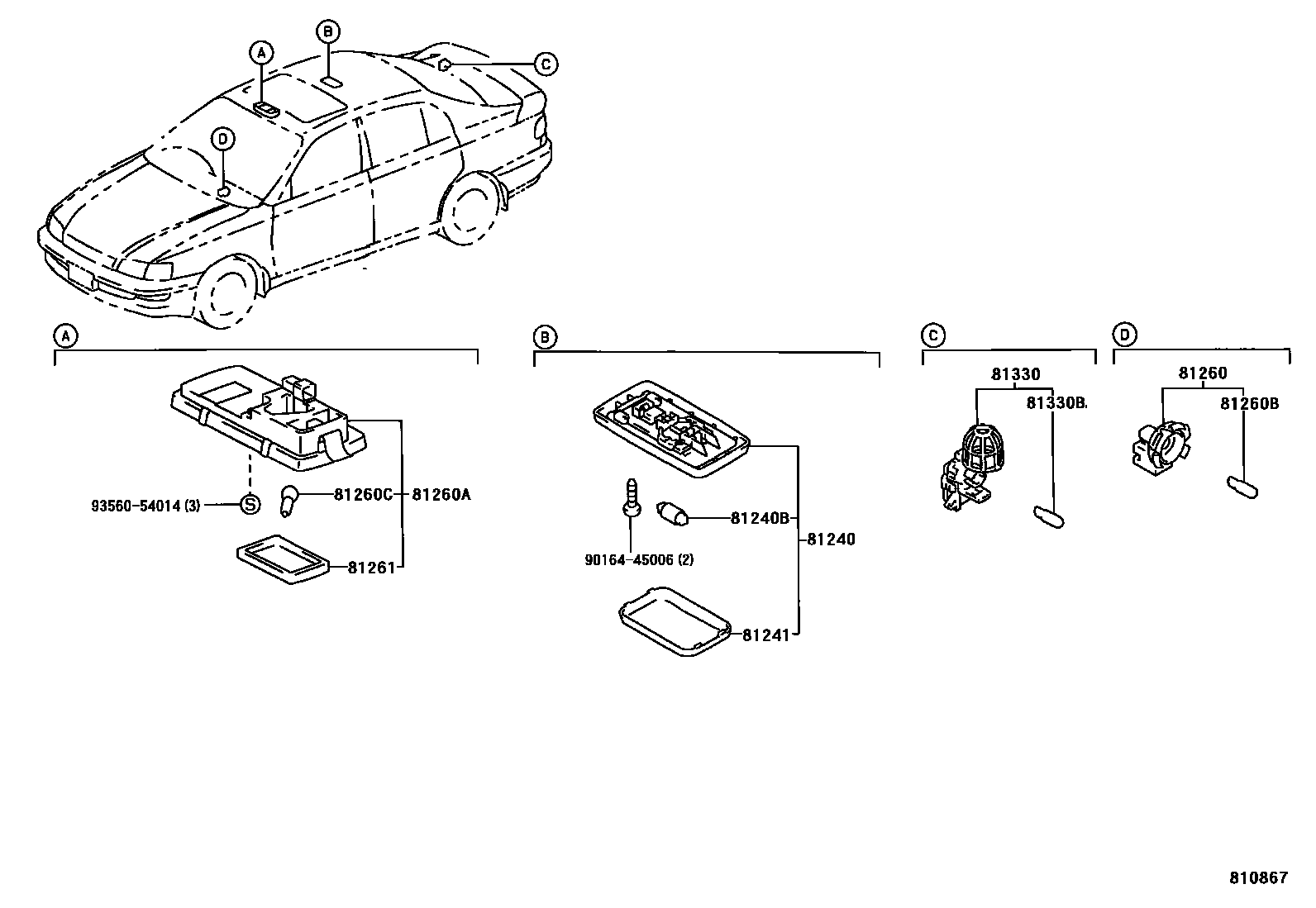

12 parts on this diagram · 1 diagram in section
