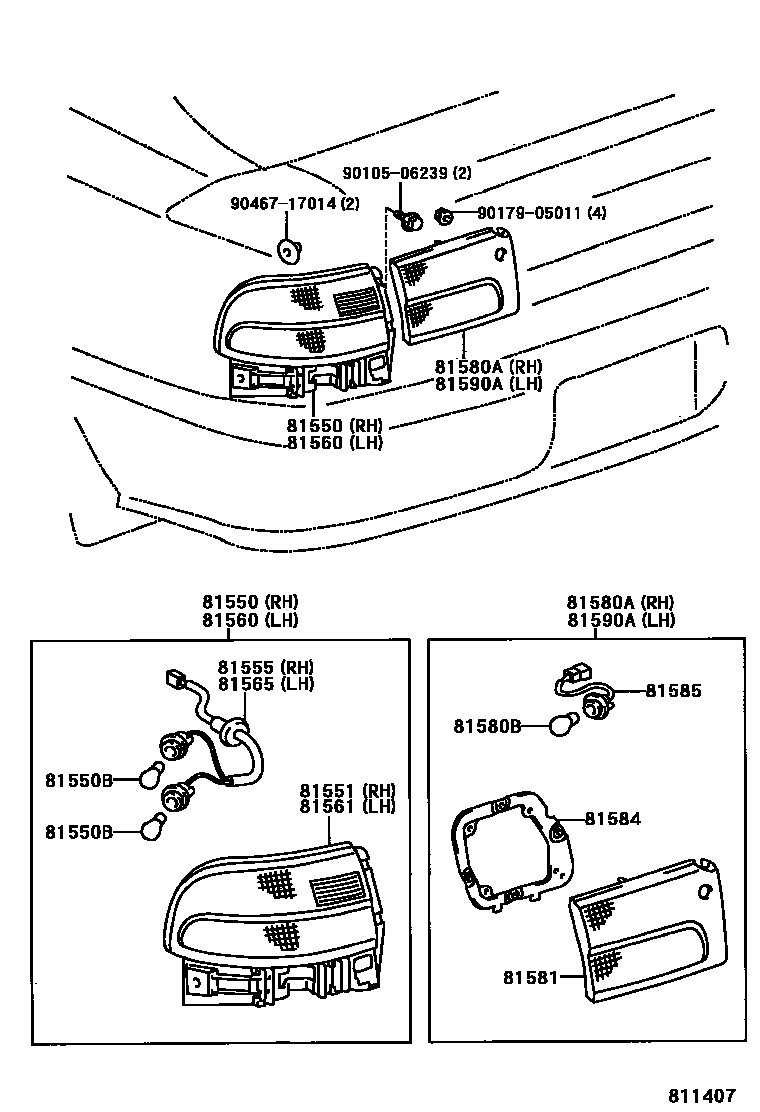

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-05030iAT190,CT190,ST191..UKP199601-199710

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81034iAT190,CT190,ST191..UKP199601-199710

12V 21/5W

main90080-81046iAT190,CT190,ST191..UKP199601-199710

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-05030iAT190,CT190,ST191..UKP199601-199710

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-05030iAT190,CT190,ST191..UKP199601-199710

81560LAMP ASSY, REAR COMBINATION, LH

main81560-05030iAT190,CT190,ST191..UKP199601-199710

81561LENS, REAR COMBINATION LAMP, LH

main81561-05030iAT190,CT190,ST191..UKP199601-199710

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-05030iAT190,CT190,ST191..UKP199601-199710

81580ALAMP ASSY, REAR

main81580-05050iAT190,CT190,ST191..UKP199601-199710

81580BBULB (FOR REAR LAMP)

main90080-81035iAT190,CT190,ST191..UKP199601-199710

12V 21W

81581LENS, REAR LAMP

main81581-05050iAT190,CT190,ST191..UKP199601-199710

RH

main81591-05050iAT190,CT190,ST191..UKP199601-199710

LH

81584PACKING, REAR LAMP RH

main81674-05010iAT190,CT190,ST191..UKP199601-199710

81585SOCKET & WIRE, REAR LAMP

main81675-05030iAT190,CT190,ST191..UKP199601-199710

81590ALAMP ASSY, REAR, LH

main81590-05050iAT190,CT190,ST191..UKP199601-199710

9010506239

main90105-06239

9017905011

main90179-05011

9046717014

main90467-17014

16 parts on this diagram · 1 diagram in section
