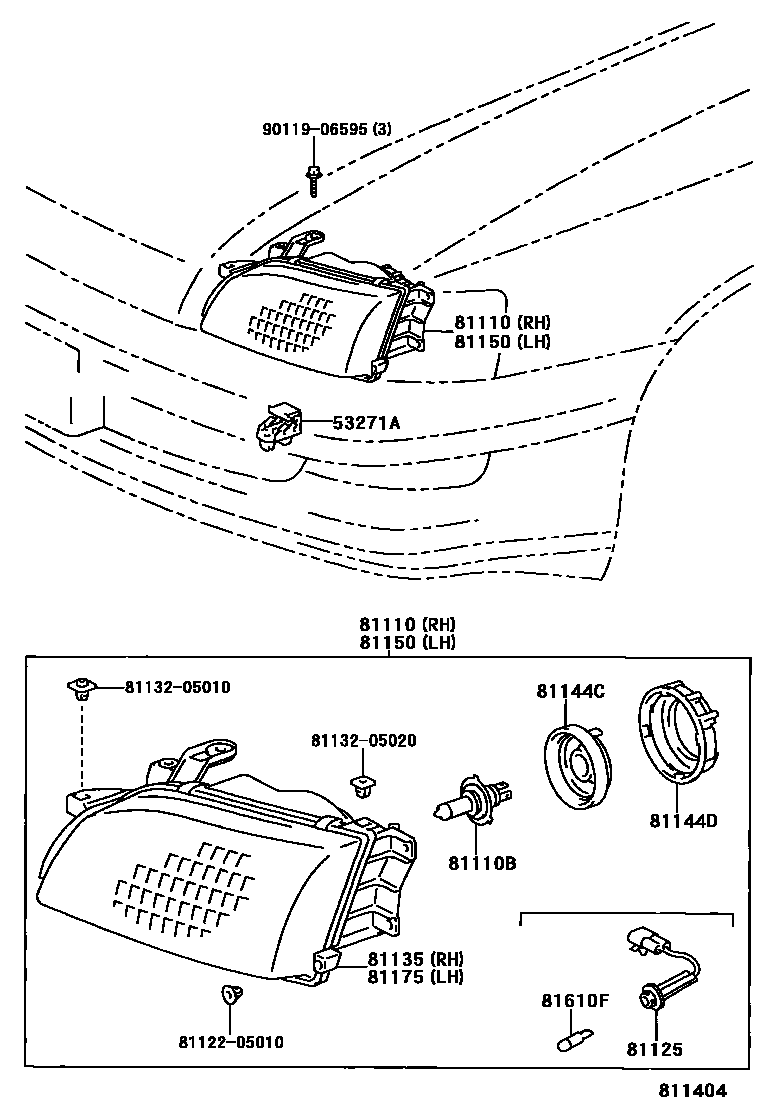

HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iAT190,CT190,ST191..UKP199601-199710

81110HEADLAMP ASSY, RH

main81110-05011iAT190,CT190,ST191..UKP..LHD199601-199710

main81110-05070iAT190,CT190,ST191..UKP..LHD; AT190,ST191..UKP..RHD199601-199710

2-HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81031×2iAT190,CT190,ST191..UKP199601-199710

12V 60/55W,*HAL *WH

81125CORD, HEADLAMP

main81125-2B650×2iAT190,CT190,ST191..UKP199601-199710

81135UNIT ASSY, HEADLAMP, RH

main81130-05010iAT190,CT190,ST191..UKP..LHD199601-199710

main81130-05060iAT190,CT190,ST191..UKP..LHD; AT190,ST191..UKP..RHD199601-199710

2-HALOGEN

81144CCOVER, HEADLAMP SOCKET

main81139-05010×2iAT190,CT190,ST191..UKP199601-199710

81144DCAP, HEADLAMP LOCKING

main81139-05020×2iAT190,CT190,ST191..UKP199601-199710

81150HEADLAMP ASSY, LH

main81150-05011iAT190,CT190,ST191..UKP..LHD199601-199710

main81150-05070iAT190,CT190,ST191..UKP..LHD; AT190,ST191..UKP..RHD199601-199710

2-HALOGEN

81175UNIT ASSY, HEADLAMP, LH

main81170-05010iAT190,CT190,ST191..UKP..LHD199601-199710

main81170-05060iAT190,CT190,ST191..UKP..LHD; AT190,ST191..UKP..RHD199601-199710

2-HALOGEN

81610FBULB(FOR CLEARANCE LAMP)

main90080-81030×2iAT190,CT190,ST191..UKP199601-199710

12V 5W

8112205010HOLDER, HEADLAMP

main81122-05010

8113205010NUT, HEADLAMP SELF LOCKING

main81132-05010

8113205020NUT, HEADLAMP SELF LOCKING

main81132-05020

9011906595

main90119-06595

14 parts on this diagram · 1 diagram in section
