MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-05901iAT190,ST191..UKP199601-199710

76087SPOILER SUB-ASSY, REAR NO.1

main76087-05900iAT190,ST191..UKP199601-199710

76088SPOILER SUB-ASSY, REAR NO.2

main76088-05900iAT190,ST191..UKP199601-199710

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-09120iAT190,CT190,ST191..UKP199601-199710

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-09120iAT190,CT190,ST191..UKP199601-199710

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-09130iAT190,CT190,ST191..UKP199601-199710

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-09130iAT190,CT190,ST191..UKP199601-199710

76835RETAINER, REAR SPOILER SIDE, NO.1

main76835-20030iAT190,ST191..UKP199601-199710

76836RETAINER, REAR SPOILER SIDE, NO.2

main76836-20030iAT190,ST191..UKP199601-199710

76865ARETAINER, SIDE MUDGUARD

main76865-20100iAT190,ST191..UKP199601-199710

76872APROTECTOR, REAR SPOILER, NO.1

main76872-20130iAT190,ST191..UKP199601-199710

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20110×3iAT190,ST191..UKP199601-199710

76874PROTECTOR, REAR SPOILER, NO.3

main76874-20100×2iAT190,ST191..UKP199601-199710

76879CLIP, REAR SPOILER, NO.1

main76879-20040×2iAT190,ST191..UKP199601-199710

76887BPROTECTOR, REAR SPOILER SIDE, NO.2

main76887-20070×2iAT190,ST191..UKP199601-199710

76888PROTECTOR, REAR SPOILER SIDE, NO.3

main76888-20070×2iAT190,ST191..UKP199601-199710

76899PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-20050×2iAT190,ST191..UKP199601-199710

9015960364

main90159-60364

9016450033

main90164-50033

9017906026

main90179-06026

9018906085

main90189-06085

9018906157

main90189-06157

9046710128

main90467-10128

9054006033

main90540-06033

9151160614

main91511-60614

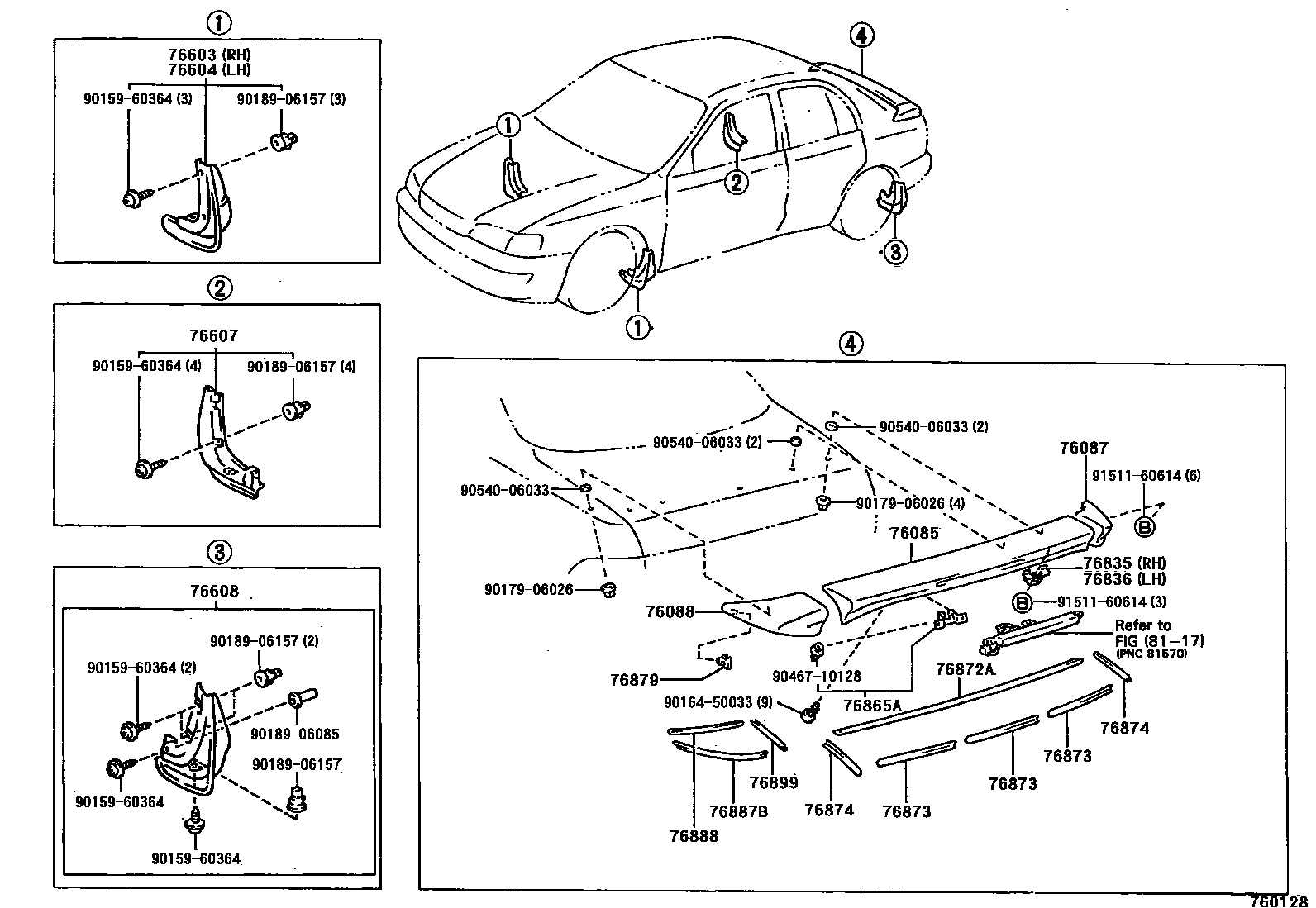

25 parts on this diagram · 1 diagram in section
