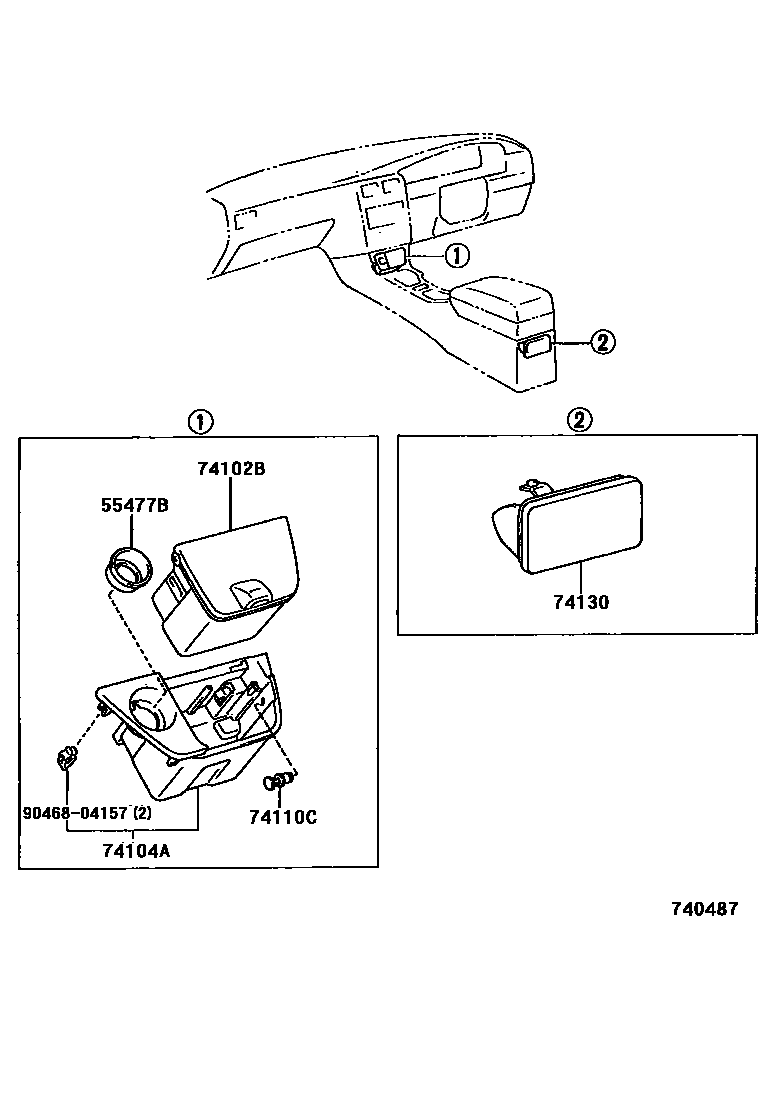

ASH RECEPTACLE

55477BBEZEL, CIGARETTE LIGHTER HOLE

main55477-05010iAT190,CT190,ST191..UKP199601-199710

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-05010-C0iAT190,ST191..UKP..RHD199601-199710

BLACK,TRIM1#,8#

main74102-05020-C0iAT190,CT190,ST191..UKP..LHD199601-199710

BLACK,TRIM1#,8#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-05010-C0iAT190,ST191..UKP..RHD199601-199710

BLACK,TRIM1#,8#

main74104-05020-C0iAT190,CT190,ST191..UKP..LHD199601-199710

BLACK,TRIM1#,8#

74110CCLIP, FRONT ASH RECEPTACLE, INNER

main90467-07113-22iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

74130RECEPTACLE ASSY, REAR ASH

main74109-05010-C0iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

9046804157

main90468-04157

6 parts on this diagram · 1 diagram in section
