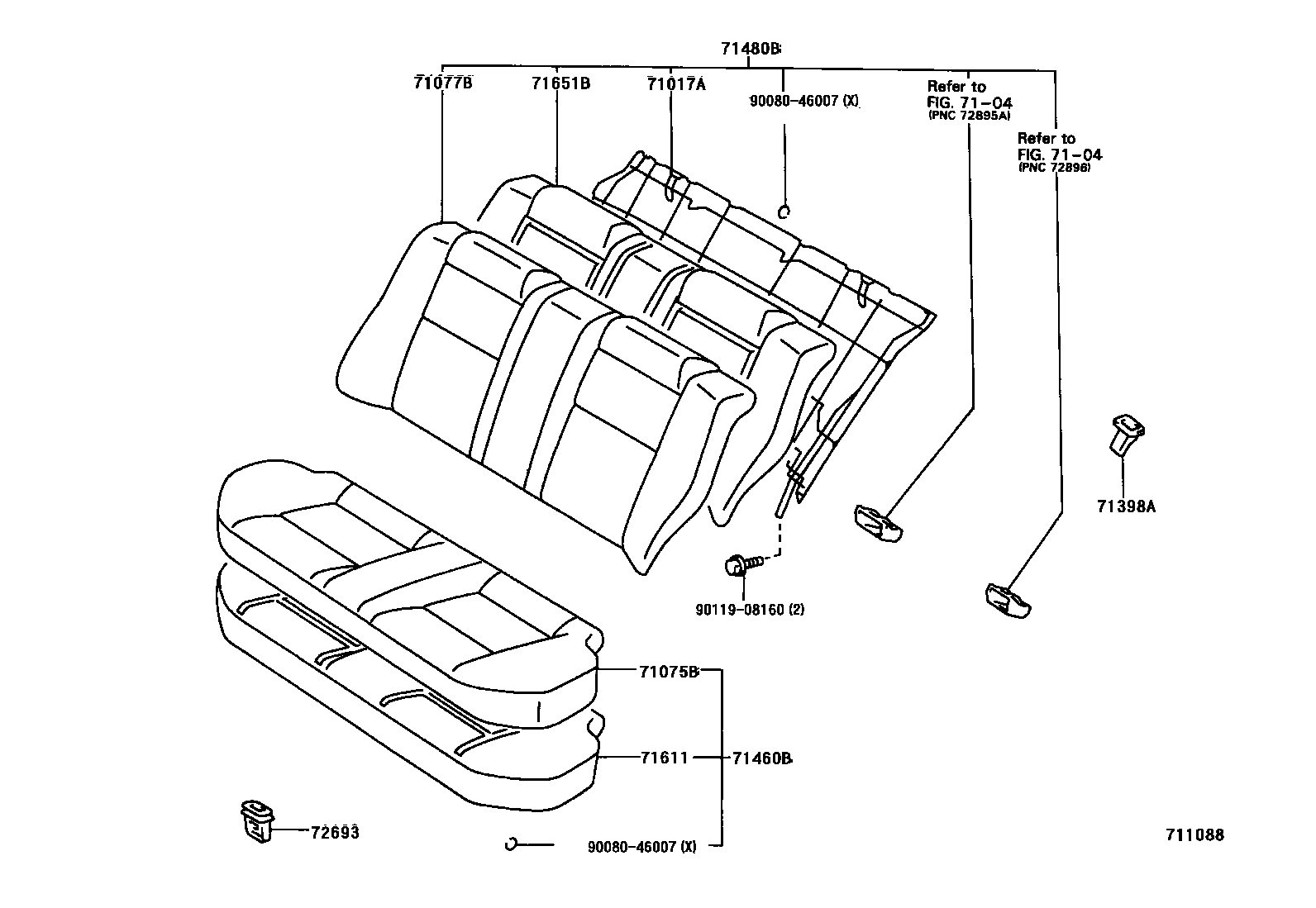

REAR SEAT & SEAT TRACK

0001 1BENCH SEAT 0002 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-05010iAT190,CT190,ST191..UKP199601-199710

71017AFRAME SUB-ASSY, REAR SEATBACK

main71017-05020iAT190..UKP199601-199710

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-05140-B1iAT190..UKP199601-199710

SHADOW GRAY,TRIM1#

main71075-05140-J1iAT190..UKP199601-199710

DK. BLUE,TRIM8#

main71075-05150-B0iCT190,ST191..UKP199601-199710

SHADOW GRAY,TRIM1#

main71075-05150-J0iCT190,ST191..UKP199601-199710

DK. BLUE,TRIM8#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-05100-B1iAT190..UKP199601-199710

SHADOW GRAY,TRIM1#

main71077-05100-J1iAT190..UKP199601-199710

DK. BLUE,TRIM8#

71398AHOLDER, REAR SEATBACK

main71398-12030×3iAT190..UKP199601-199710

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-05130-B0iAT190..UKP199601-199710

***,SHADOW GRAY,TRIM1#

main71460-05130-J0iAT190..UKP199601-199710

***,DK. BLUE,TRIM8#

main71460-05140-B0iCT190,ST191..UKP199601-199710

***,SHADOW GRAY,TRIM1#

main71460-05140-J0iCT190,ST191..UKP199601-199710

***,DK. BLUE,TRIM8#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-05180-B3iAT190..UKP199601-199710

***,SHADOW GRAY,TRIM1#

main71480-05180-J3iAT190..UKP199601-199710

***,DK. BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71503-05010iAT190,CT190,ST191..UKP199601-199710

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-05020iAT190..UKP199601-199710

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20040×4iAT190,CT190,ST191..UKP199601-199710

9008046007

main90080-46007

9011908160

main90119-08160

12 parts on this diagram · 2 diagrams in section
