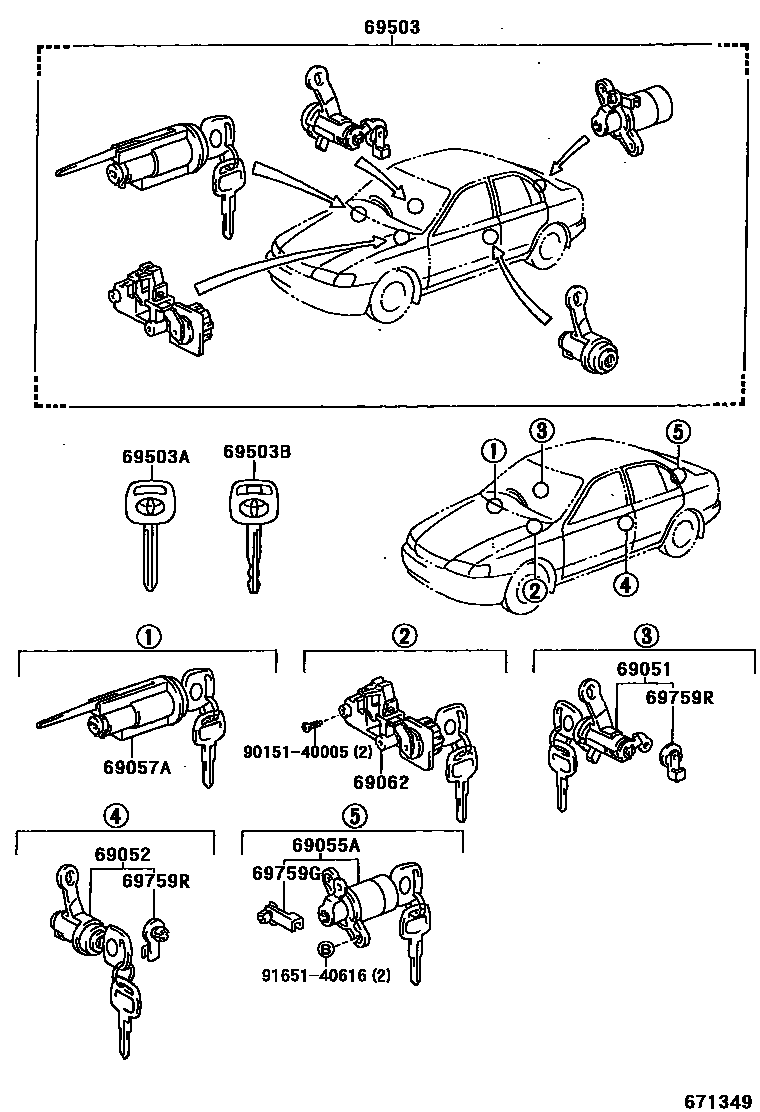

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-05010iAT190,CT190,ST191..UKP199601-199710

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-05010iAT190,CT190,ST191..UKP199601-199710

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-05010iAT190,CT190,ST191..UKP199601-199710

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-05010iAT190,CT190,ST191..UKP199601-199710

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-05010iAT190,CT190,ST191..UKP199601-199710

69503CYLINDER SET, LOCK

main69005-05010iAT190,CT190,ST191..UKP199601-199710

69503AKEY, BLANK

main90080-69007×2iAT190,CT190,ST191..UKP199601-199710

MASTER KEY

main90080-69008iAT190,CT190,ST191..UKP199601-199710

SUB KEY

69503BKEY, CUT

main69515-05010×2iAT190,CT190,ST191..UKP199601-199710

MASTER KEY(VALEO)

main69516-05010iAT190,CT190,ST191..UKP199601-199710

SUB KEY(VALEO)

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-20080iAT190,CT190,ST191..UKP199601-199710

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAT190,CT190,ST191..UKP199601-199710

RH

main69759-12090iAT190,CT190,ST191..UKP199601-199710

LH

9015140005

main90151-40005

9165140616

main91651-40616

12 parts on this diagram · 1 diagram in section
