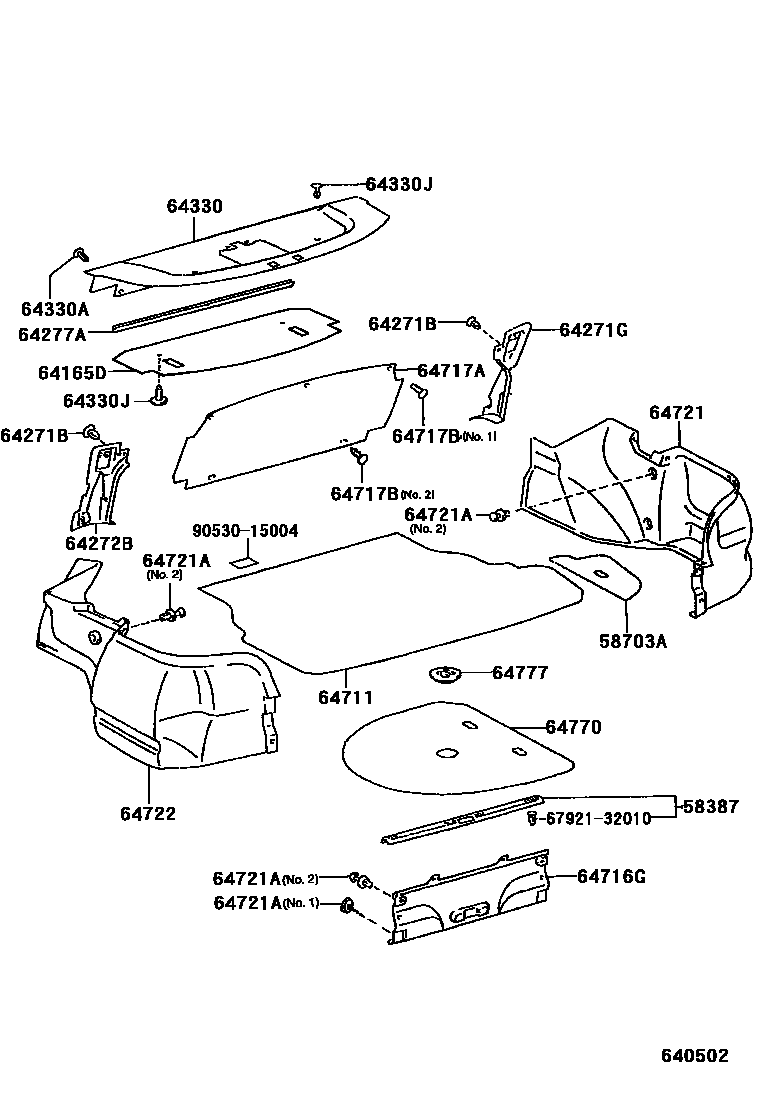

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM1#,8#
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
64165DCOVER, UPPER BACK PANEL HOLE, NO.1
64271BCLIP(FOR ROOM PARTITION BOARD)
64271GBOARD, ROOM PARTITION, RH
BLACK,TRIM1#,8#
64272BBOARD, ROOM PARTITION, LH
BLACK,TRIM1#,8#
64277AMOULDING, ROOM PARTITION TRIM
BLACK,TRIM1#,8#
64330PANEL ASSY, PACKAGE TRAY TRIM
SHADOW GRAY,TRIM1#; W(SPLITE REAR SEAT),SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#; W(SPLITE REAR SEAT),DK.BLUE,TRIM8#
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#; W(SPLITE REAR SEAT & HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
W(HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#; W(SPLITE REAR SEAT & HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#
W(HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
SHADOW GRAY,TRIM1#
DK.BLUE,TRIM8#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM1#,8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM1#,8#; W(SPLITE REAR SEAT),BLACK,TRIM1#,8#
BLACK,TRIM1#,8#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM1#,8#,NO.1
BLACK,TRIM1#,8#,NO.2
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,8#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
BLACK,TRIM1#,8#,NO.2
BLACK,TRIM1#,8#,NO.1
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,8#
64770COVER ASSY, SPARE WHEEL
64777CLAMP, SPARE WHEEL COVER
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9053015004
main90530-15004
21 parts on this diagram · 1 diagram in section
