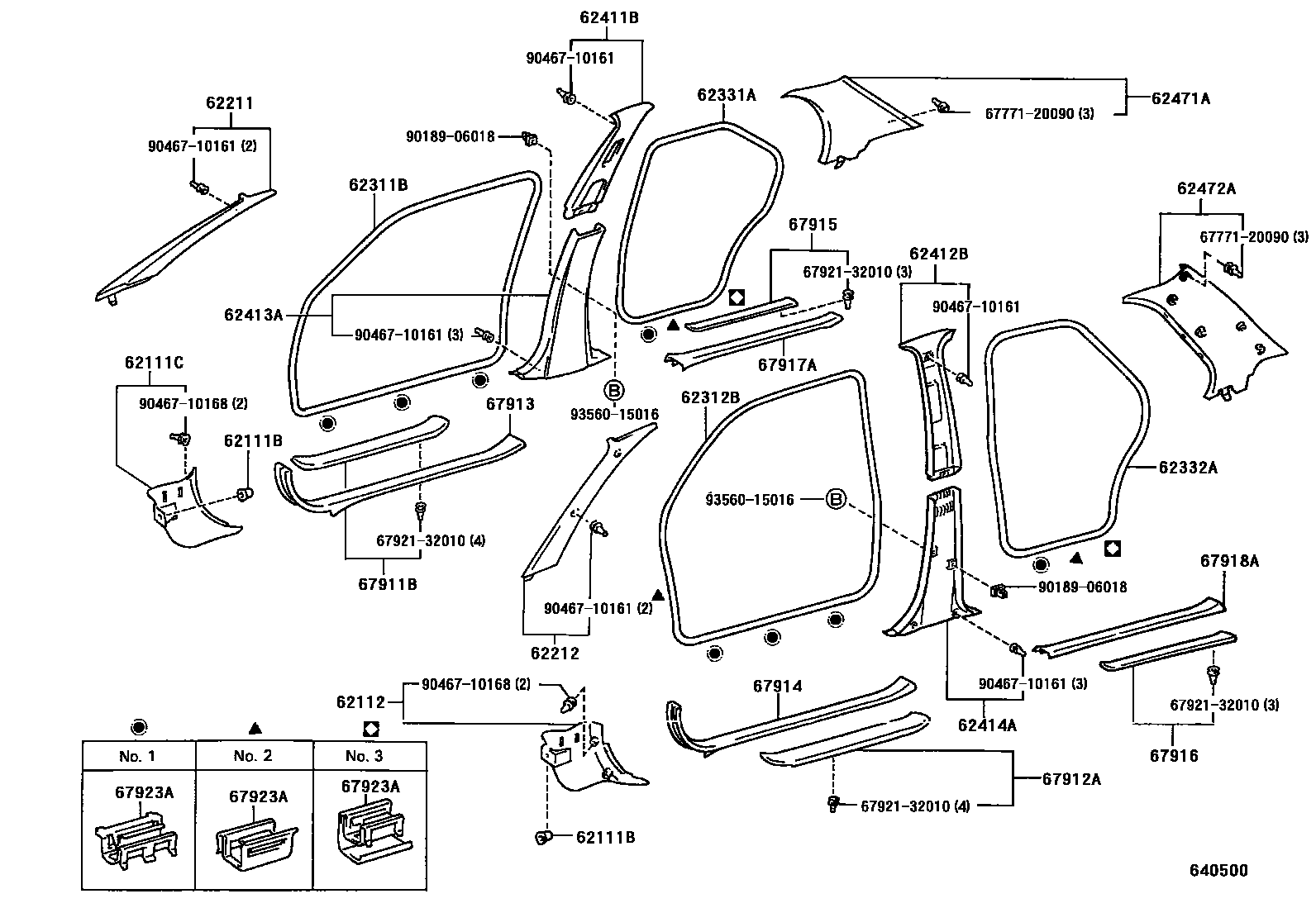

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
62111CBOARD, COWL SIDE TRIM, RH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
62112BOARD, COWL SIDE TRIM, LH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
62211GARNISH, FRONT PILLAR, RH
GRAY,TRIM1#,8#
62212GARNISH, FRONT PILLAR, LH
GRAY,TRIM1#,8#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
BLACK,TRIM1#,8#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
BLACK,TRIM1#,8#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
BLACK,TRIM1#,8#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
BLACK,TRIM1#,8#
62411BGARNISH, CENTER PILLAR, UPPER RH
GRAY,TRIM1#,8#
62412BGARNISH, CENTER PILLAR, UPPER LH
GRAY,TRIM1#,8#
62413AGARNISH, CENTER PILLAR, LOWER RH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
62414AGARNISH, CENTER PILLAR, LOWER LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
62471AGARNISH, ROOF SIDE, INNER RH
GRAY,TRIM1#,8#
62472AGARNISH, ROOF SIDE, INNER LH
GRAY,TRIM1#,8#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
BLACK,TRIM1#,8#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
BLACK,TRIM1#,8#
67913PLATE, FRONT DOOR SCUFF, RH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
67914PLATE, FRONT DOOR SCUFF, LH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
BLACK,TRIM1#,8#
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
BLACK,TRIM1#,8#
67917APLATE, REAR DOOR SCUFF, RH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
67918APLATE, REAR DOOR SCUFF, LH
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
NO.1
NO.2
NO.3
6777120090WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20090
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9018906018
main90189-06018
9046710161
main90467-10161
9046710168
main90467-10168
9356015016
main93560-15016
30 parts on this diagram · 1 diagram in section
