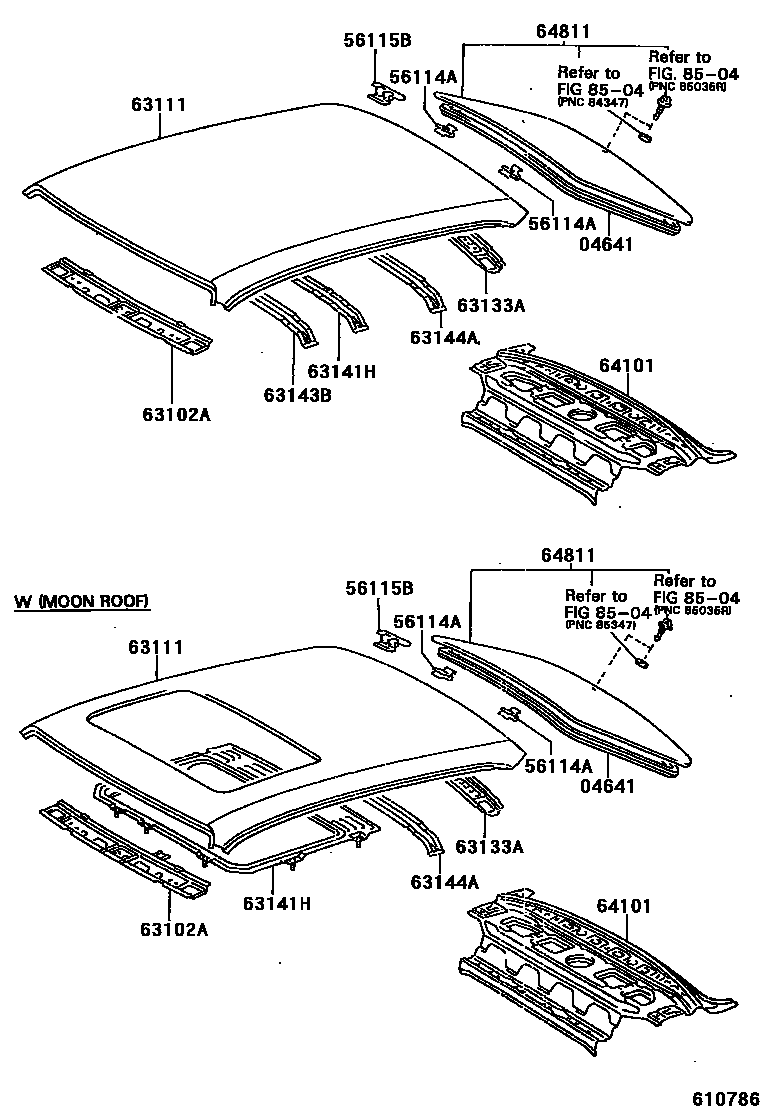

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iAT190,CT190,ST191..UKP199601-199710

56114ARETAINER, BACK WINDOW GLASS

main56114-20040iAT190,CT190,ST191..UKP199601-199710

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-20060iAT190,CT190,ST191..UKP199601-199710

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-05010iAT190,CT190,ST191..UKP199601-199710

main63102-05030iAT190,CT190,ST191..UKP199601-199710

W(MOON ROOF)

63111PANEL, ROOF

main63111-05090iAT190,CT190,ST191..UKP199601-199710

main63111-05100iAT190,CT190,ST191..UKP199601-199710

W(MOON ROOF)

63133AFRAME, BACK WINDOW, UPPER

main63133-05010iAT190,CT190,ST191..UKP199601-199710

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-05010iAT190,CT190,ST191..UKP199601-199710

W(MOON ROOF)

main63141-05020iAT190,CT190,ST191..UKP199601-199710

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-05030iAT190,CT190,ST191..UKP199601-199710

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-05010iAT190,CT190,ST191..UKP199601-199710

64101PANEL SUB-ASSY, UPPER BACK

main64101-05010iCT190,ST191..UKP199601-199710

W(REAR SPLIT SEAT)

main64101-05020iAT190..UKP199601-199710

main64101-05030iST191..UKP..RHD..MTM199601-199710

W(HIGH MOUNT STOP LAMP)

main64101-05030iST191..UKP..RHD..MTM199601-199710

W(REAR SPLIT SEAT & HIGH MOUNT STOP LAMP)

main64101-05040iAT190..UKP;ST191..UKP..ATM;ST191..UKP..LHD..MTM199601-199710

W(HIGH MOUNT STOP LAMP)

64811GLASS, BACK WINDOW

main64811-05011iAT190,CT190,ST191..UKP199601-199710

*EHT,T=4.0,GREEN

11 parts on this diagram · 2 diagrams in section
