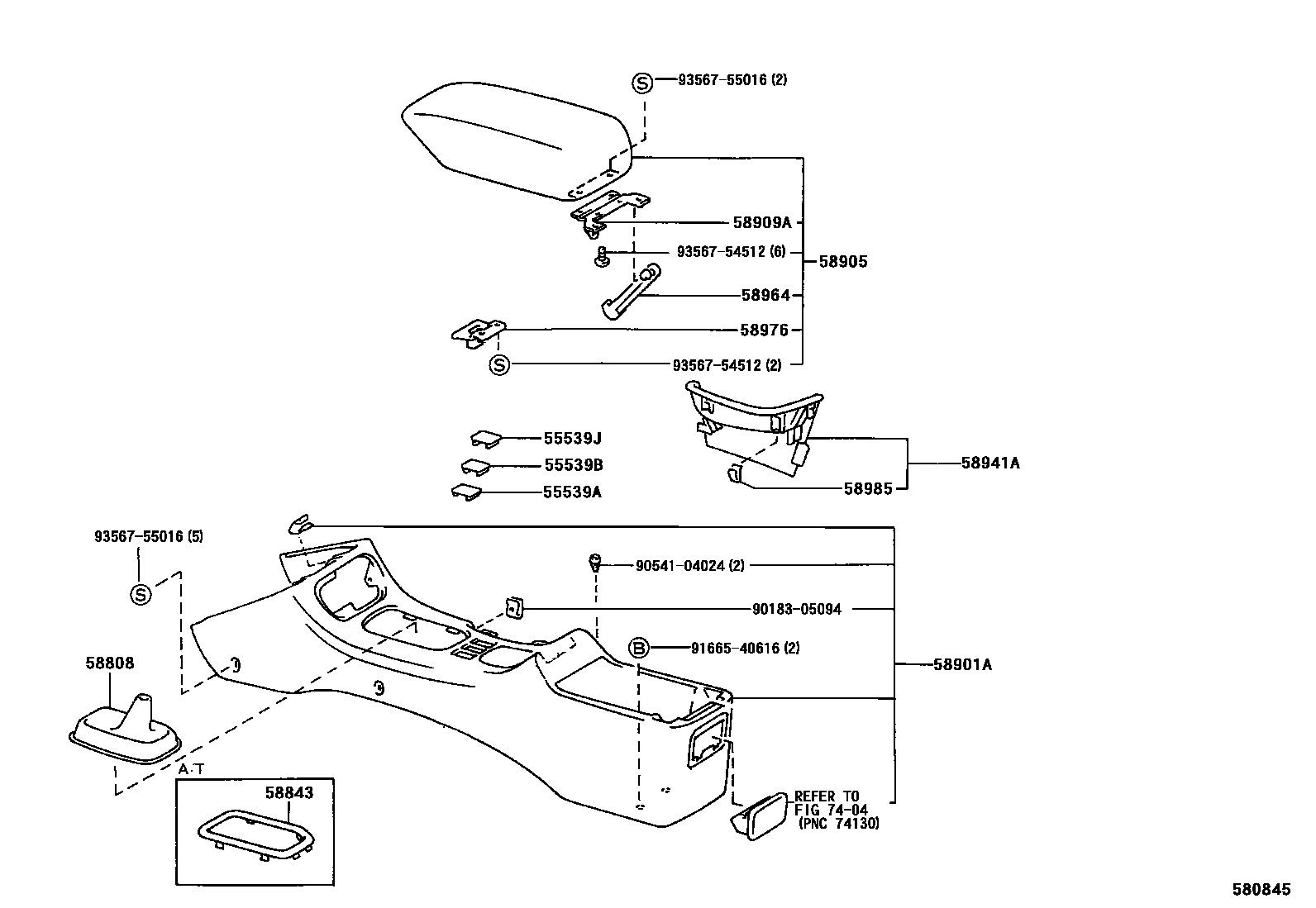

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-05010-B0iAT190,CT190,ST191..UKP199601-199606

SHADOW GRAY,TRIM1#

main55539-05010-J0iAT190,CT190,ST191..UKP199601-199606

DK. BLUE,TRIM8#

main55539-05020-B0iAT190,CT190,ST191..UKP199606-199710

SHADOW GRAY,TRIM1#

main55539-05020-J0iAT190,CT190,ST191..UKP199606-199710

DK.BLUE,TRIM8#

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-05010-B0iAT190,CT190,ST191..UKP199601-199606

SHADOW GRAY,TRIM1#

main55539-05010-J0iAT190,CT190,ST191..UKP199601-199606

DK. BLUE,TRIM8#

55539JCOVER, SPARE SWITCH HOLE

main55539-05010-B0iAT190,CT190,ST191..UKP199601-199606

SHADOW GRAY,TRIM1#

main55539-05010-J0iAT190,CT190,ST191..UKP199601-199606

DK. BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-05010-C1iAT190,ST191..UKP..RHD..MTM199601-199710

BLACK,TRIM1#,8#

main58808-05020-C1iAT190,CT190,ST191..UKP..LHD..MTM199601-199710

BLACK,TRIM1#,8#

58843BEZEL, SHIFTING HOLE

main58843-20060iST191..UKP..RHD..ATM199601-199710

main58843-20080iAT190,ST191..UKP..LHD..ATM199601-199710

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-05030-B0iAT190,ST191..UKP..RHD199601-199710

SHADOW GRAY,TRIM1#

main58901-05030-J0iAT190,ST191..UKP..RHD199601-199710

DK.BLUE,TRIM8#

main58901-05040-B0iAT190,CT190,ST191..UKP..LHD199601-199710

SHADOW GRAY,TRIM1#

main58901-05040-J0iAT190,CT190,ST191..UKP..LHD199601-199710

DK.BLUE,TRIM8#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-05010-B0iAT190,CT190,ST191..UKP199601-199710

SHADOW GRAY,TRIM1#

main58905-05010-J0iAT190,CT190,ST191..UKP199601-199710

DK. BLUE,TRIM8#

58909ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58909-05010iAT190,CT190,ST191..UKP199601-199710

58941ACOVER, PARKING BRAKE HOLE

main58904-05010-B0iAT190,ST191..UKP..RHD199601-199710

SHADOW GRAY,TRIM1#

main58904-05010-J0iAT190,ST191..UKP..RHD199601-199710

DK. BLUE,TRIM8#

main58904-05020-B0iAT190,CT190,ST191..UKP..LHD199601-199710

SHADOW GRAY,TRIM1#

main58904-05020-J0iAT190,CT190,ST191..UKP..LHD199601-199710

DK. BLUE,TRIM8#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-05010iAT190,CT190,ST191..UKP199601-199710

RH

main58965-05010iAT190,CT190,ST191..UKP199601-199710

LH

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT190,CT190,ST191..UKP199601-199710

58985RETAINER, CONSOLE BOX

main58985-20050iAT190,CT190,ST191..UKP199601-199710

7404

9018305094

main90183-05094

9054104024

main90541-04024

9166540616

main91665-40616

9356754512

main93567-54512

9356755016

main93567-55016

18 parts on this diagram · 1 diagram in section
