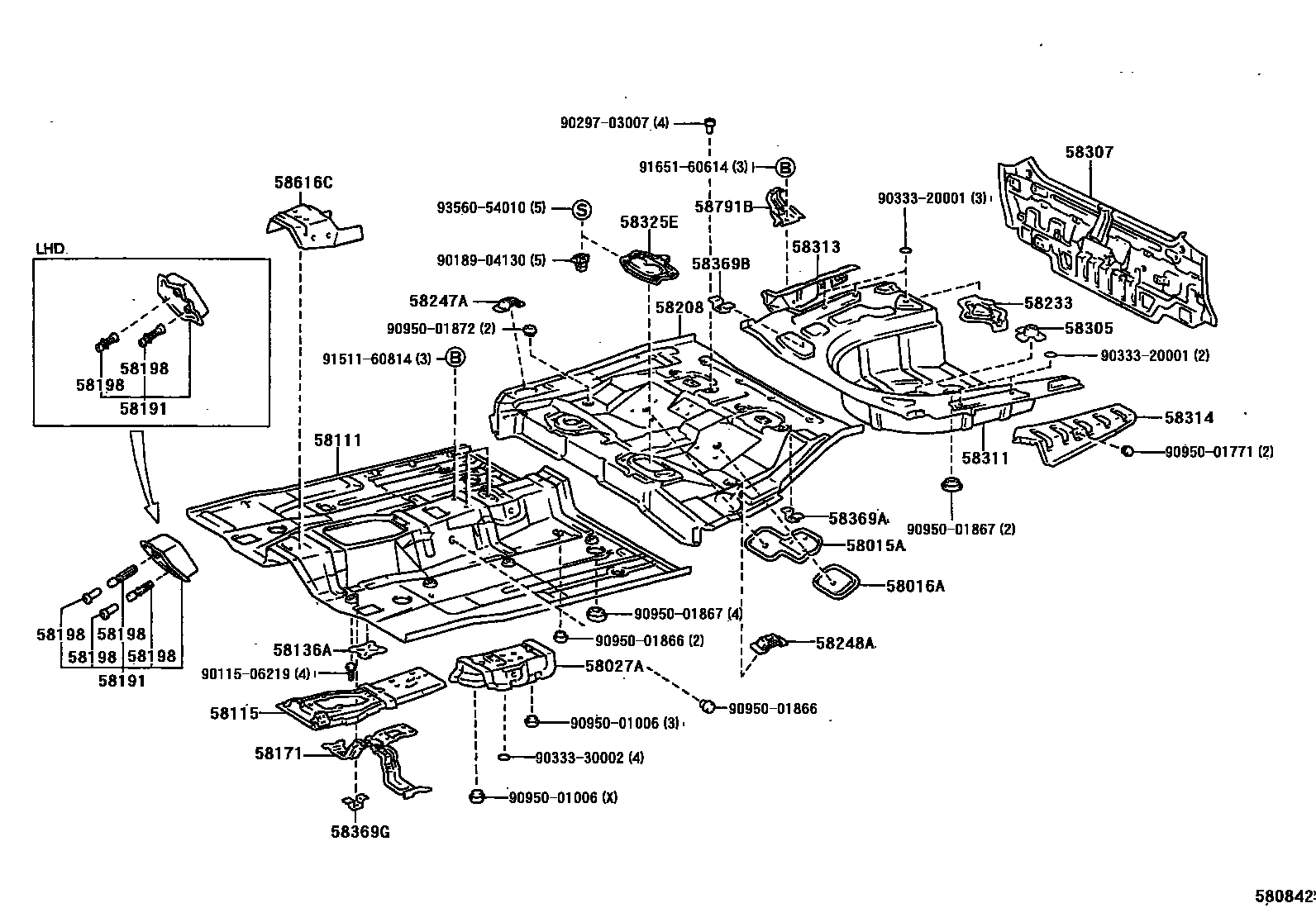

FLOOR PAN & LOWER BACK PANEL
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58136ACOVER, FRONT FLOOR SERVICE HOLE
RH
LH
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
L=39.3
L=46.6
L=100
L=84
L=28.5
58208PAN, CENTER FLOOR
W(REAR SPLIT SEAT)
58233BRACKET, EXHAUST PIPE MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
58616CPANEL, FRONT FLOOR SILENCER, NO.1
58791BCARRIER, JACK
9011506219
main90115-06219
9018904130
main90189-04130
9029703007
main90297-03007
9033320001
main90333-20001
9033330002
main90333-30002
9095001006
main90950-01006
9095001771
main90950-01771
9095001866
main90950-01866
9095001867
main90950-01867
9095001872
main90950-01872
9151160814
main91511-60814
9165160614
main91651-60614
9356054010
main93560-54010
37 parts on this diagram · 1 diagram in section
