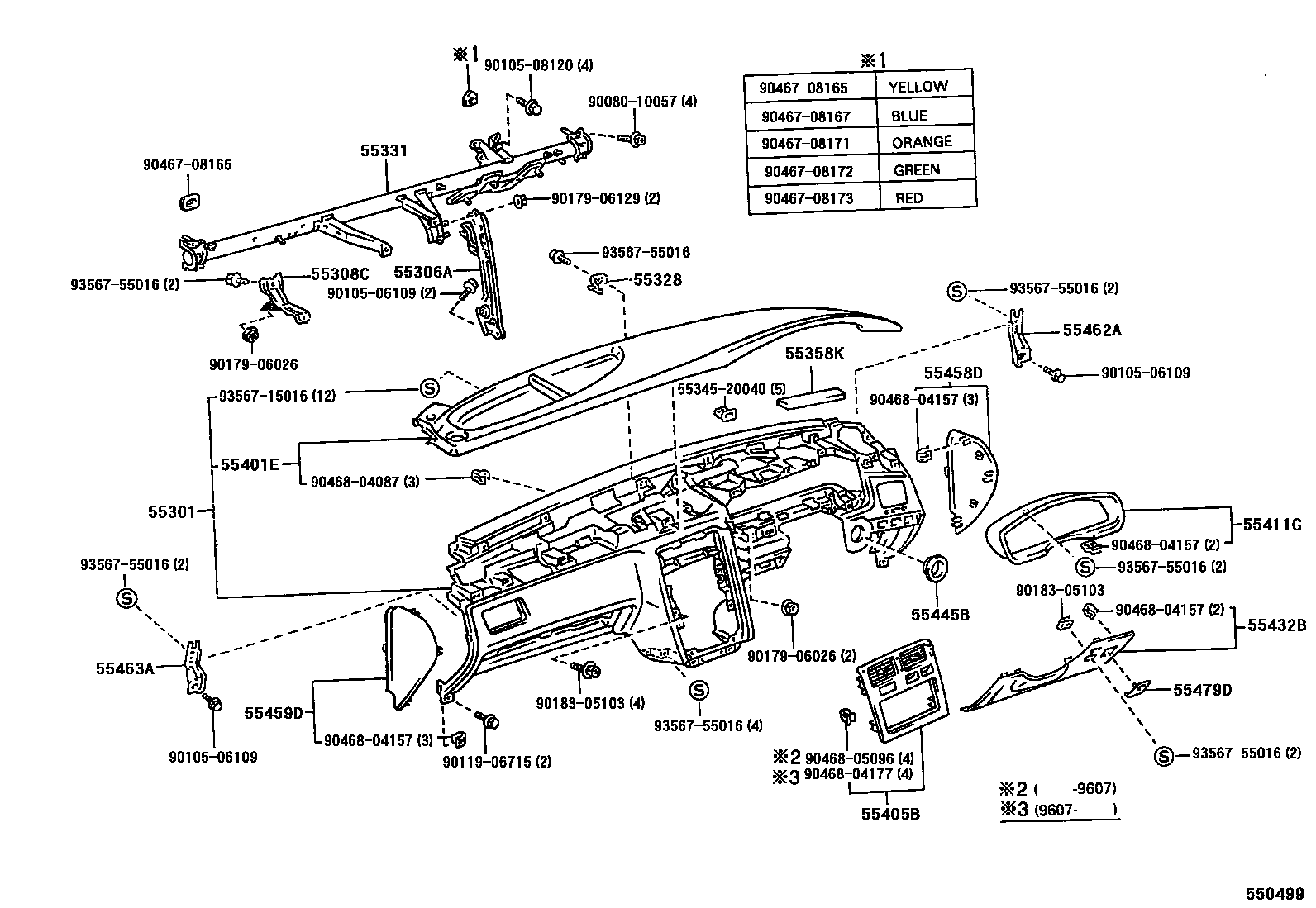

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-05010-B0iAT190,ST191..UKP..RHD199601-199710

SHADOW GRAY,TRIM1#

main55300-05010-J0iAT190,ST191..UKP..RHD199601-199710

DK. BLUE,TRIM8#

main55300-05020-B0iAT190,CT190,ST191..UKP..LHD199601-199710

SHADOW GRAY,TRIM1#

main55300-05020-J0iAT190,CT190,ST191..UKP..LHD199601-199710

DK. BLUE,TRIM8#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-05010iAT190,ST191..UKP..RHD199601-199710

main55306-05020iAT190,CT190,ST191..UKP..LHD199601-199710

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-05010iAT190,CT190,ST191..UKP199601-199710

55328PIN, INSTRUMENT PANEL, NO.1

main55328-20070×3iAT190,CT190,ST191..UKP199601-199710

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-05010iAT190,ST191..UKP..RHD199601-199612

main55330-05020iAT190,CT190,ST191..UKP..LHD199601-199612

main55330-05030iAT190,ST191..UKP..RHD199612-199710

main55330-05040iAT190,CT190,ST191..UKP..LHD199612-199710

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-05010×3iAT190,CT190,ST191..UKP199601-199710

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-05011-B0iAT190,ST191..UKP..RHD199601-199710

SHADOW GRAY,TRIM1#

main55401-05011-J0iAT190,ST191..UKP..RHD199601-199710

DK.BLUE,TRIM8#

main55401-05021-B0iAT190,CT190,ST191..UKP..LHD199601-199710

SHADOW GRAY,TRIM1#

main55401-05021-J0iAT190,CT190,ST191..UKP..LHD199601-199710

DK.BLUE,TRIM8#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20150iAT190,CT190,ST191..UKP..LHD199601-199710

main55405-20220iAT190,ST191..UKP..RHD199601-199710

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-05010iAT190,ST191..UKP..RHD199601-199710

main55411-05020iAT190,CT190,ST191..UKP..LHD199601-199710

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-05010-B0iAT190,ST191..UKP..RHD199601-199710

SHADOW GRAY,TRIM1#

main55432-05010-J0iAT190,ST191..UKP..RHD199601-199710

DK. BLUE,TRIM8#

main55432-05020-B0iAT190,CT190,ST191..UKP..LHD199601-199710

SHADOW GRAY,TRIM1#

main55432-05020-J0iAT190,CT190,ST191..UKP..LHD199601-199710

DK. BLUE,TRIM8#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20200iAT190,CT190,ST191..UKP199601-199710

55458DCOVER, INSTRUMENT LOWER, RH

main55458-05010-B0iAT190,CT190,ST191..UKP199601-199710

SHADOW GRAY,TRIM1#

main55458-05010-J0iAT190,CT190,ST191..UKP199601-199710

DK. BLUE,TRIM8#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-05010-B0iAT190,CT190,ST191..UKP199601-199710

SHADOW GRAY,TRIM1#

main55459-05010-J0iAT190,CT190,ST191..UKP199601-199710

DK. BLUE,TRIM8#

55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH

main55462-05010iAT190,CT190,ST191..UKP199601-199710

55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH

main55463-05010iAT190,CT190,ST191..UKP199601-199710

55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER

main55479-05010-B0iAT190,ST191..UKP..RHD199601-199710

SHADOW GRAY,TRIM1#

main55479-05010-J0iAT190,ST191..UKP..RHD199601-199710

DK. BLUE,TRIM8#

main55479-05020-B0iAT190,CT190,ST191..UKP..LHD199601-199710

SHADOW GRAY,TRIM1#

main55479-05020-J0iAT190,CT190,ST191..UKP..LHD199601-199710

DK. BLUE,TRIM8#

5534520040GARNISH, GLOVE COMPARTMENT, UPPER

main55345-20040

9008010057

main90080-10057

9010506109

main90105-06109

9010508120

main90105-08120

9011906715

main90119-06715

9017906026

main90179-06026

9017906129

main90179-06129

9018305103

main90183-05103

9046708165

main90467-08165

9046708166

main90467-08166

9046708167

main90467-08167

9046708171

main90467-08171

9046708172

main90467-08172

9046708173

main90467-08173

9046804087

main90468-04087

9046804157

main90468-04157

9046804177

main90468-04177

9046805096

main90468-05096

9356715016

main93567-15016

9356755016

main93567-55016

36 parts on this diagram · 4 diagrams in section
