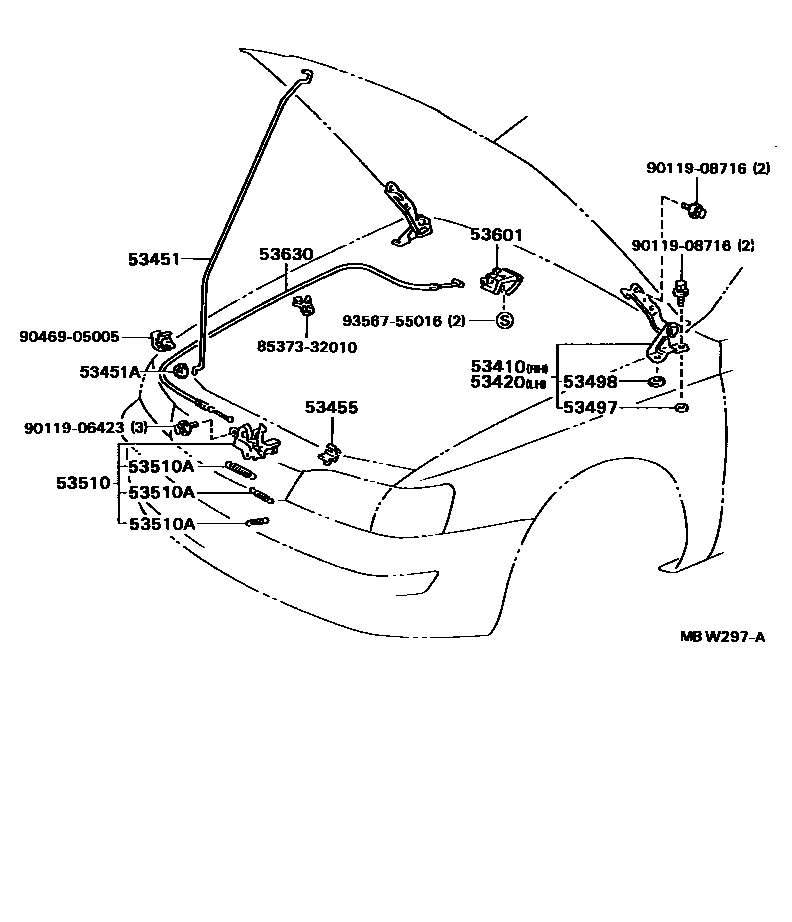

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-05010iAT190,CT190,ST191..UKP199601-199710

53420HINGE ASSY, HOOD, LH

main53420-05010iAT190,CT190,ST191..UKP199601-199710

53451ROD, HOOD SUPPORT

main53451-05010iAT190,ST191..UKP199601-199710

main53451-05020iCT190..UKP199601-199710

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15024iAT190,CT190,ST191..UKP199601-199710

53455CLAMP, HOOD SUPPORT ROD

main53455-20040iAT190,CT190,ST191..UKP199601-199710

53497PAD, HOOD HINGE, NO.1

main53498-05010×2iAT190,CT190,ST191..UKP199601-199710

53498PAD, HOOD HINGE, NO.2

main53498-05010×2iAT190,CT190,ST191..UKP199601-199710

53510LOCK ASSY, HOOD

main53510-20410iAT190,CT190,ST191..UKP..LHD199601-199710

main53510-20420iAT190,ST191..UKP..RHD199601-199710

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAT190,CT190,ST191..UKP..LHD199601-199710

WD=0.9,CW=21,WD=0.9,CW=21.0

main90506-09057iAT190,ST191..UKP..RHD199601-199710

WD=0.9,CW=23,WD=0.9,CW=23.0

main90506-12067iAT190,CT190,ST191..UKP199601-199710

WD=1.4,CW=7.25,WD=1.4,CW=7.25

main90506-20065iAT190,ST191..UKP..RHD199601-199710

WD=2.0,CW=16.0,WD=2.0,CW=16.0

main90506-20066iAT190,CT190,ST191..UKP..LHD199601-199710

WD=2.0,CW=17,WD=2.0,CW=17.0

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-16020-22iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-05010iAT190,ST191..UKP..RHD199601-199710

main53630-05020iAT190,CT190,ST191..UKP..LHD199601-199710

8537332010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-32010

9011906423

main90119-06423

9011908716

main90119-08716

9046905005

main90469-05005

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
