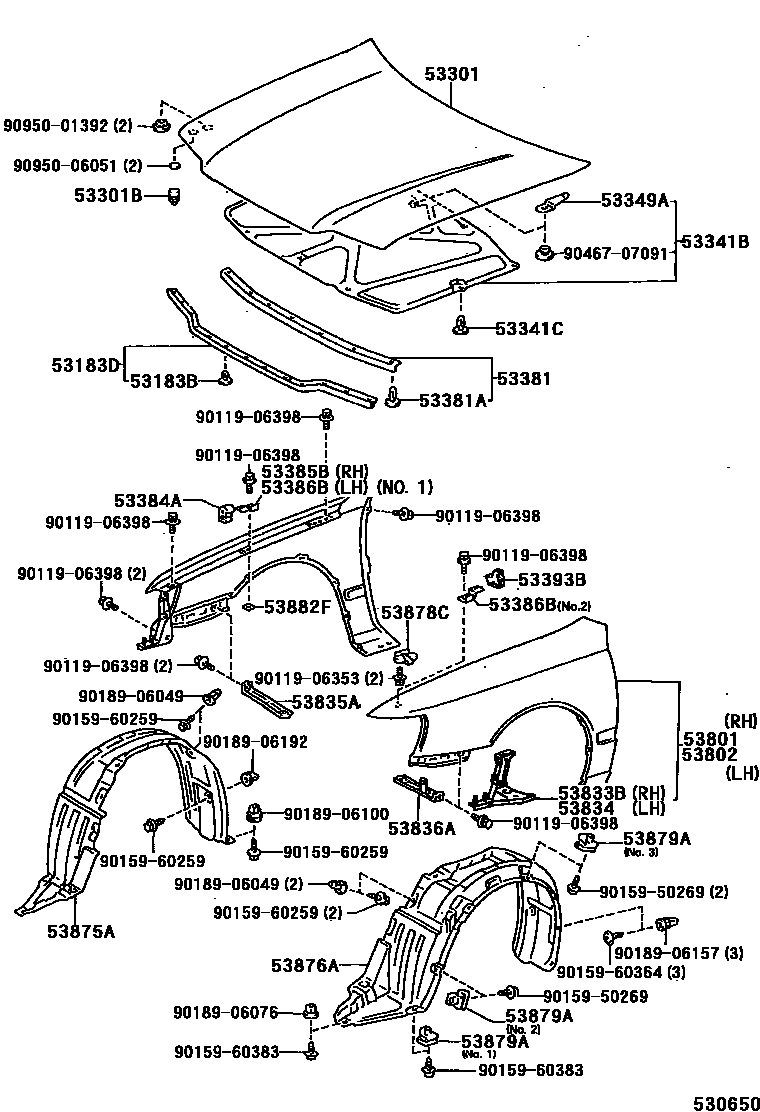

HOOD & FRONT FENDER
53183BCLIP(FOR HEADLAMP COVER SEAL)
sub90467-06084
53183DSEAL, HEADLAMP COVER TO HOOD
sub53183-20080
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53349ARETAINER, HOOD INSULATOR
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
sub90467-08011
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53393BPROTECTOR, HOOD, FRONT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53835ABRACE, FRONT FENDER TO APRON, RH
53836ABRACE, FRONT FENDER TO APRON, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
NO.3
NO.1
NO.2
53882FSEAL, FRONT FENDER
9011906353
main90119-06353
9011906398
main90119-06398
9015950269
main90159-50269
9015960259
main90159-60259
9015960364
main90159-60364
9015960383
main90159-60383
9018906049
main90189-06049
9018906076
main90189-06076
9018906100
main90189-06100
9018906157
main90189-06157
9018906192
main90189-06192
9046707091
main90467-07091
9095001392
main90950-01392
9095006051
main90950-06051
38 parts on this diagram · 1 diagram in section
