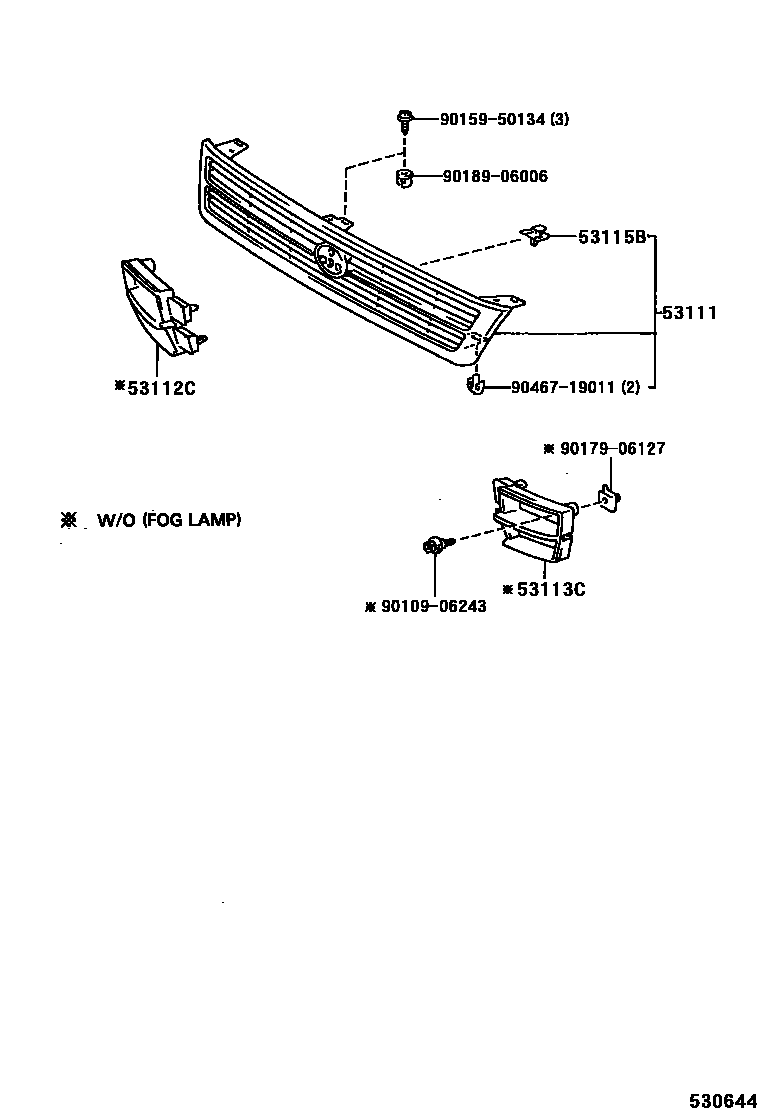

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53101-05020-A0iAT190,CT190,ST191..UKP199601-199710

SUPER WHITE 2,040

main53101-05020-B0iAT190,CT190,ST191..UKP199601-199710

DK.BL.GRAY ME,183

main53101-05020-B1iAT190,CT190,ST191..UKP199601-199710

SILVER ME,199

main53101-05020-C0iAT190,CT190,ST191..UKP199601-199710

BLACK ME,205

main53101-05020-D0iAT190,CT190,ST191..UKP199601-199710

SU.RED 3,3J6

main53101-05020-D1iAT190,CT190,ST191..UKP199601-199710

MAGENTA MC.,3L3

main53101-05020-H0iAT190,CT190,ST191..UKP199601-199710

DK.TURQUOISE.MC,742

main53101-05020-H1iAT190,CT190,ST191..UKP199601-199710

TURQUOISE M.M,746

main53101-05020-J0iAT190,CT190,ST191..UKP199601-199710

BLUE,8H6

main53101-05020-J1iAT190,CT190,ST191..UKP199601-199705

PURPLISH BLUE M.M.,8K9

53112CGRILLE, RADIATOR, LOWER RH

main53112-05010iAT190,CT190,ST191..UKP199601-199710

53113CGRILLE, RADIATOR, LOWER LH

main53113-05010iAT190,CT190,ST191..UKP199601-199710

53115BBRACKET, RADIATOR GRILLE

main53115-16010iAT190,CT190,ST191..UKP199601-199710

9010906243

main90109-06243

9015950134

main90159-50134

9017906127

main90179-06127

9018906006

main90189-06006

9046719011

main90467-19011

9 parts on this diagram · 1 diagram in section
