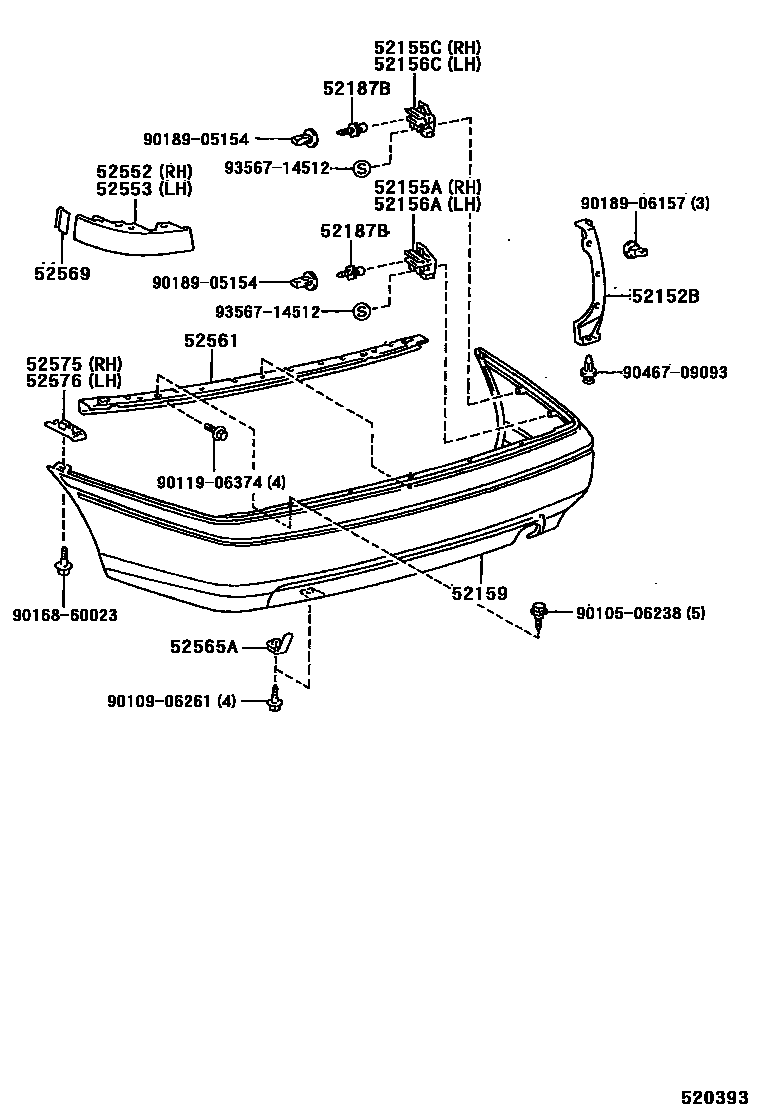

REAR BUMPER & BUMPER STAY
52152BEXTENSION, REAR BUMPER, RH
52155ASUPPORT, REAR BUMPER SIDE, RH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52159COVER, REAR BUMPER
52187BGUIDE, REAR BUMPER LOCATION
52552FILLER, REAR BUMPER, RH
52553FILLER, REAR BUMPER, LH
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52569PAD, REAR BUMPER FILLER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
9010506238
main90105-06238
9010906261
main90109-06261
9011906374
main90119-06374
9016860023
main90168-60023
9018905154
main90189-05154
9018906157
main90189-06157
9046709093
main90467-09093
9356714512
main93567-14512
22 parts on this diagram · 1 diagram in section
