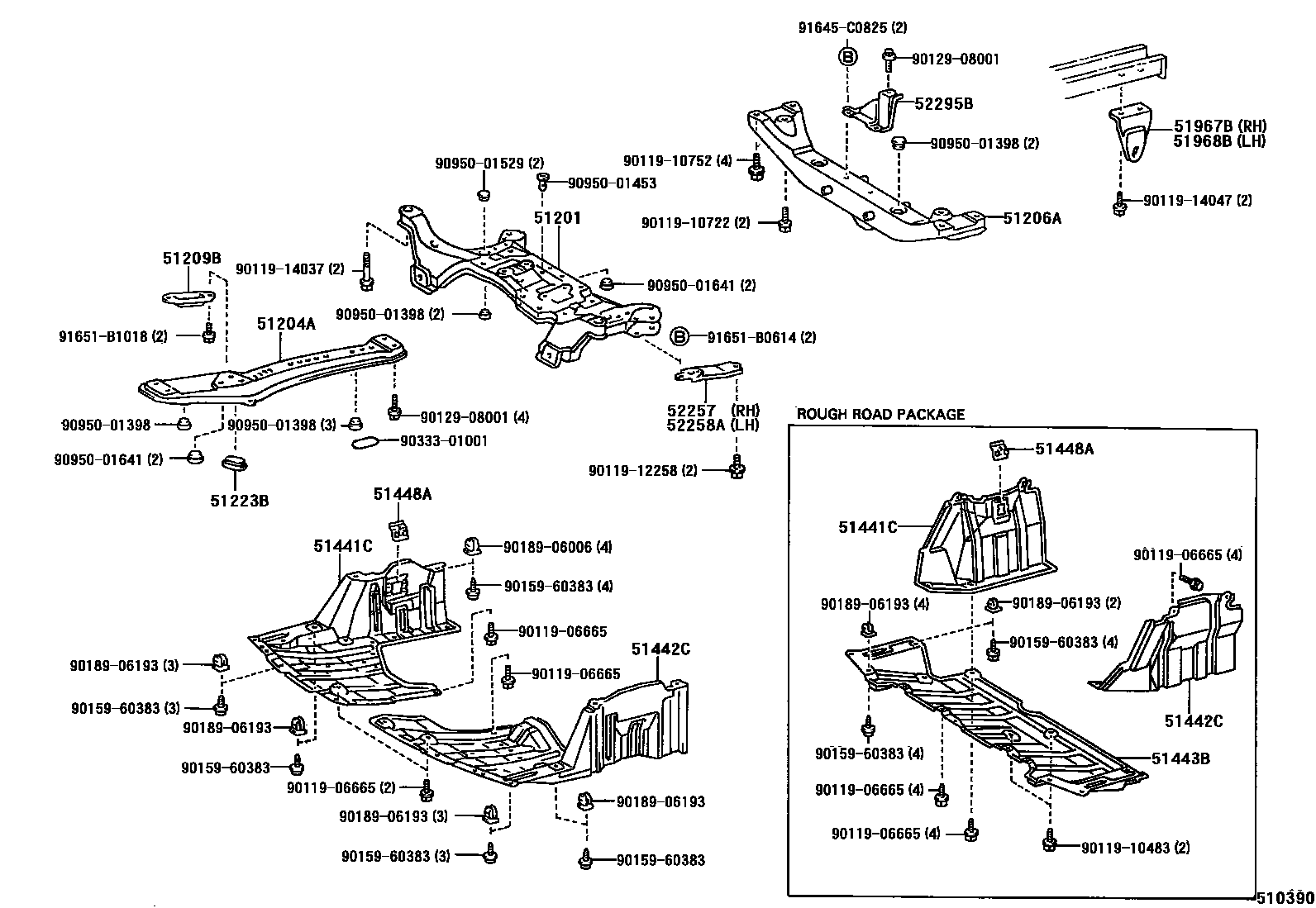

SUSPENSION CROSSMEMBER & UNDER COVER
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT
51223BCOVER, ENGINE MOUNTING HOLE
51441CCOVER, ENGINE UNDER, RH
ROUGH ROAD PACKAGE
51442CCOVER, ENGINE UNDER, LH
ROUGH ROAD PACKAGE
51443BCOVER, ENGINE UNDER, NO.3
ROUGH ROAD PACKAGE
51448ACOVER, ENGINE SIDE UNDER, RH
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
52257BRACE, FRONT SUSPENSION MEMBER, REAR RH
52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH
52295BBRACE, REAR SUSPENSION MEMBER, RH
9011906665
main90119-06665
9011910483
main90119-10483
9011910722
main90119-10722
9011910752
main90119-10752
9011912258
main90119-12258
9011914037
main90119-14037
9011914047
main90119-14047
9012908001
main90129-08001
9015960383
main90159-60383
9018906006
main90189-06006
9018906193
main90189-06193
9033301001
main90333-01001
9095001398
main90950-01398
9095001453
main90950-01453
9095001529
main90950-01529
9095001641
main90950-01641
91645C0825
main91645-C0825
91651B0614
main91651-B0614
91651B1018
main91651-B1018
33 parts on this diagram · 1 diagram in section
