FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-05110iST191..UKP..LHD..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05120iCT190..UKP;ST191..UKP..RHD..MTM;ST191..UKP..LHD..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05140iST191..UKP..RHD..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05350iAT190..UKP..LHD..MTM199601-199710

main48131-05360iAT190..UKP..RHD;AT190..UKP..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05400iST191..UKP..RHD..ATM199601-199710

ROUGH ROAD PACKAGE

48132SPRING, FRONT COIL, LH

main48131-05110iAT190..UKP..ATM;ST191..UKP..RHD..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05120iST191..UKP..RHD..ATM;ST191..UKP..LHD..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05140iCT190..UKP;ST191..UKP..LHD..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05350iAT190..UKP..RHD199601-199710

main48131-05360iAT190..UKP..LHD..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05400iST191..UKP..LHD..ATM199601-199710

ROUGH ROAD PACKAGE

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-05010iAT190,CT190,ST191..UKP199601-199710

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-05010iAT190,CT190,ST191..UKP199601-199710

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-05010iAT190,CT190,ST191..UKP199601-199710

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-05010iAT190,CT190,ST191..UKP199601-199710

48331BBUMPER, FRONT SPRING, RH

main48331-05020iAT190,CT190,ST191..UKP199601-199710

48331CBUMPER, FRONT SPRING, LH

main48331-05020iAT190,CT190,ST191..UKP199601-199710

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-05010iAT190,CT190,ST191..UKP199601-199710

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-05010iAT190,CT190,ST191..UKP199601-199710

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09150iAT190,CT190,ST191..UKP199601-199710

sub48510-09160

main48510-09160iAT190,CT190,ST191..UKP199601-199710

ROUGH ROAD PACKAGE

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09150iAT190,CT190,ST191..UKP199601-199710

sub48520-09160

main48520-09160iAT190,CT190,ST191..UKP199601-199710

ROUGH ROAD PACKAGE

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20410iAT190,CT190,ST191..UKP199601-199710

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAT190,CT190,ST191..UKP199601-199710

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAT190,CT190,ST191..UKP199601-199710

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20410iAT190,CT190,ST191..UKP199601-199710

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAT190,CT190,ST191..UKP199601-199710

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAT190,CT190,ST191..UKP199601-199710

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-20020iAT190,CT190,ST191..UKP199601-199710

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-20020iAT190,CT190,ST191..UKP199601-199710

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05010iAT190,CT190,ST191..UKP199601-199710

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05010iAT190,CT190,ST191..UKP199601-199710

48810LINK ASSY, FRONT STABILIZER, LH

main48810-05011iAT190,CT190,ST191..UKP199601-199706

sub48810-05012

main48810-20020iAT190,CT190,ST191..UKP199706-199710

sub48810-44010

48811BAR, STABILIZER, FRONT

main48811-05030iAT190,CT190,ST191..UKP199601-199710

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-05030iAT190,CT190,ST191..UKP199601-199710

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAT190,CT190,ST191..UKP199601-199610

main90179-10183iAT190,CT190,ST191..UKP199610-199710

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-05011iAT190,CT190,ST191..UKP199601-199706

sub48820-05012

main48820-20040iAT190,CT190,ST191..UKP199706-199710

sub48820-44010

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12040iAT190,CT190,ST191..UKP199601-199710

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-12040iAT190,CT190,ST191..UKP199601-199710

9017910095

main90179-10095

9161160822

main91611-60822

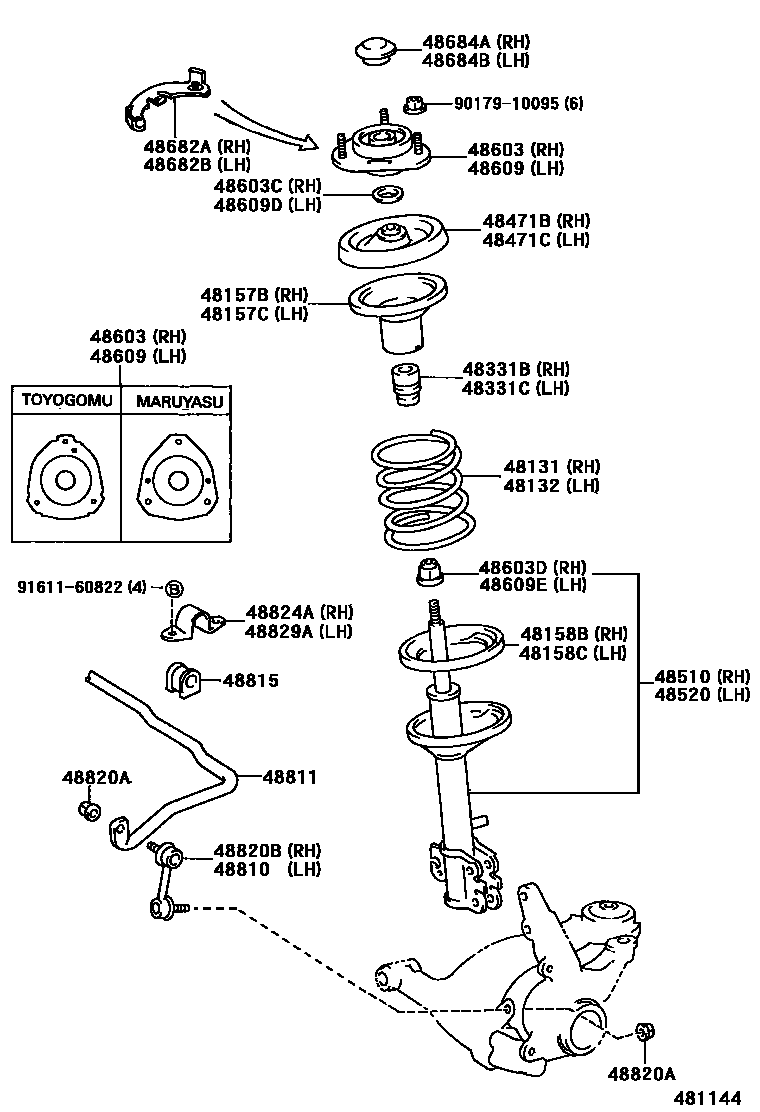

31 parts on this diagram · 1 diagram in section
