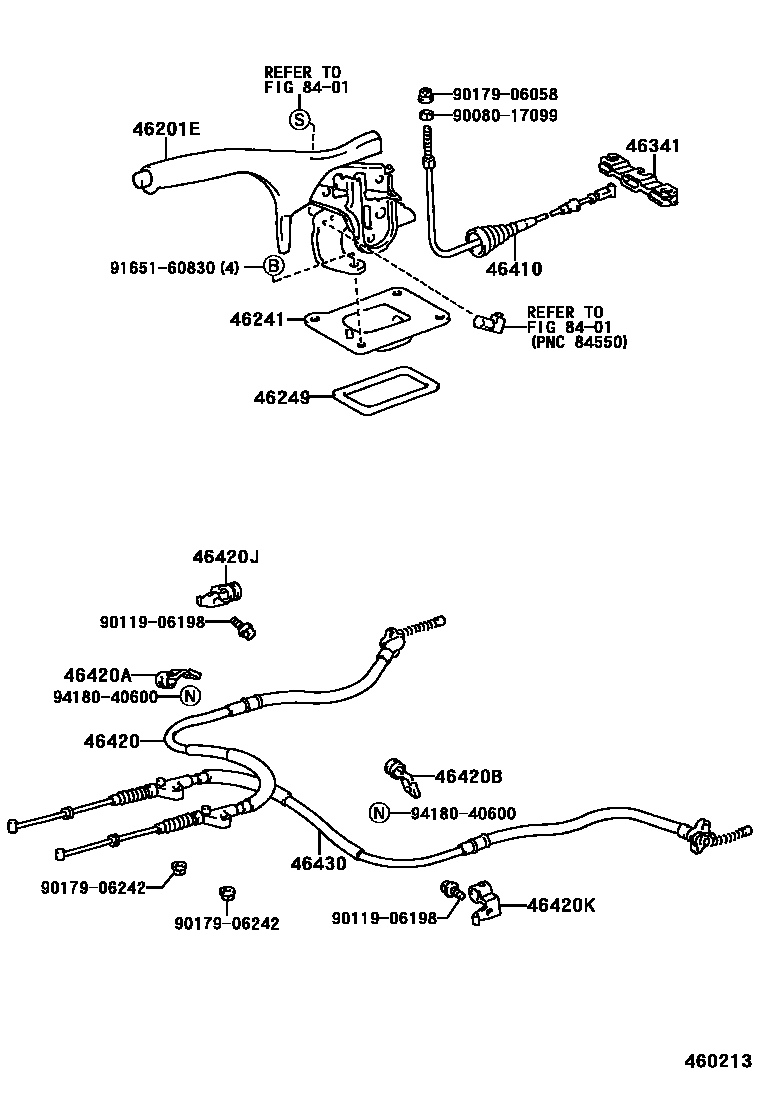

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-05010-C0iAT190,ST191..UKP..RHD199601-199710

BLACK,TRIM1#,8#

main46201-05020-C0iAT190,CT190,ST191..UKP..LHD199601-199710

BLACK,TRIM1#,8#

46241BOOT, PARKING BRAKE LEVER

main46241-20120iAT190,ST191..UKP..RHD199601-199710

main46241-20130iAT190,CT190,ST191..UKP..LHD199601-199710

46249SHIELD, PARKING BRAKE HOLE

main46249-05010iAT190,CT190,ST191..UKP199601-199710

46341EQUALIZER, PARKING BRAKE

main46341-05010iAT190,CT190,ST191..UKP199601-199710

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-05010iAT190,CT190,ST191..UKP199601-199710

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-05010iAT190,CT190,ST191..UKP199601-199710

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01771iAT190,CT190,ST191..UKP199601-199710

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01772iAT190,CT190,ST191..UKP199601-199710

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46451-20020iAT190,CT190,ST191..UKP199601-199710

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46451-20030iAT190,CT190,ST191..UKP199601-199710

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-05010iAT190,CT190,ST191..UKP199601-199710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008017099

main90080-17099

9011906198

main90119-06198

9017906058

main90179-06058

9017906242

main90179-06242

9165160830

main91651-60830

9418040600

main94180-40600

18 parts on this diagram · 1 diagram in section
