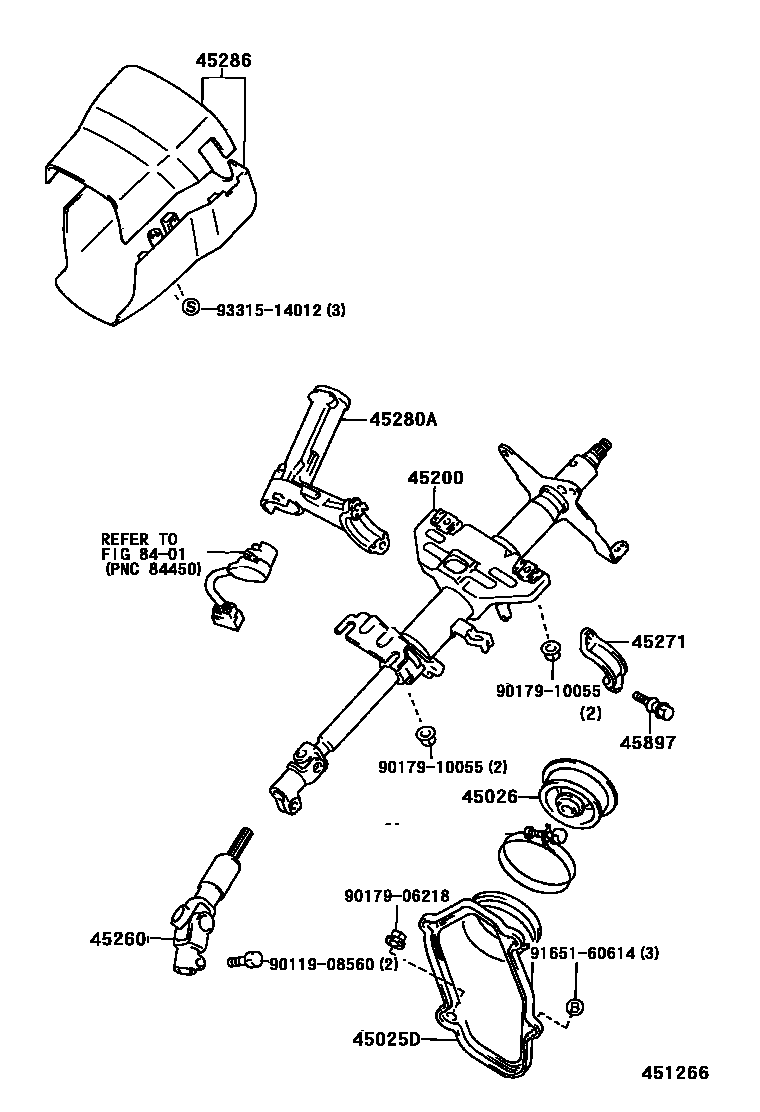

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-05010iAT190,ST191..UKP..RHD199601-199710

main45025-05030iAT190,CT190,ST191..UKP..LHD199601-199710

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-05010iAT190,CT190,ST191..UKP199601-199710

45200POST ASSY, STEERING

main45200-05080iAT190,ST191..UKP..RHD199601-199710

main45200-05100iAT190,CT190,ST191..UKP..LHD199601-199710

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-05010iAT190,ST191..UKP..RHD199601-199710

main45260-05030iAT190,CT190,ST191..UKP..LHD199601-199710

45271CLAMP, STEERING COLUMN, UPPER

main45271-05010iAT190,CT190,ST191..UKP199601-199710

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-05011iAT190..UKP199601-199710

main45280-05021iAT190..UKP; CT190,ST191..UKP199601-199710

W(FR & RR POWER WINDOW)

45286COVER, STEERING COLUMN

main45286-05908-C0iAT190,CT190,ST191..UKP199601-199710

BLACK,TRIM1#,8#

45897BOLT, STEERING LOCK SET

main45897-12020×2iAT190,CT190,ST191..UKP199601-199710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017906218

main90179-06218

9017910055

main90179-10055

9165160614

main91651-60614

9331514012

main93315-14012

14 parts on this diagram · 1 diagram in section
