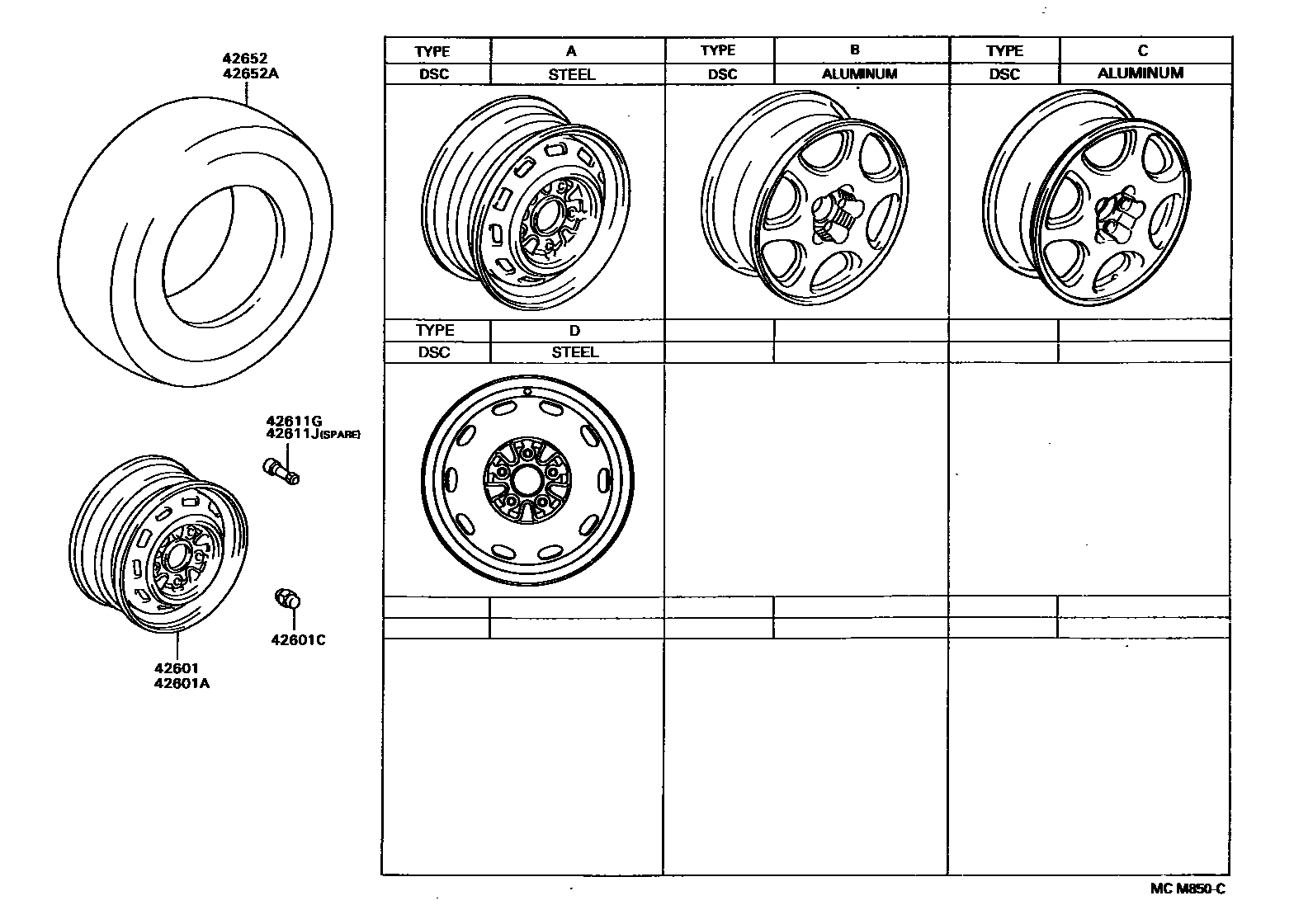

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-05010×4iAT190..UKP199601-199710

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-05020×4iAT190,CT190,ST191..UKP199601-199710

14X6J,TYPE D:REFER TO ILLUSTRATION

main42611-05030×4iAT190,CT190,ST191..UKP199601-199710

14X6J,TYPE B:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-05010iAT190..UKP199601-199710

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-05020iAT190,CT190,ST191..UKP199601-199710

14X6J,TYPE D:REFER TO ILLUSTRATION

main42611-05030iAT190,CT190,ST191..UKP199601-199710

14X6J,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iAT190,CT190,ST191..UKP199601-199710

main90942-01083×20iAT190,CT190,ST191..UKP199601-199710

W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90080-45010×4iAT190,CT190,ST191..UKP199601-199710

(L)

main90942-05009×4iAT190,CT190,ST191..UKP199601-199710

(J)

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45010iAT190,CT190,ST191..UKP199601-199710

(L)

main90942-05009iAT190,CT190,ST191..UKP199601-199710

(J)

42652TIRE

main42652-05080×4iAT190..UKP199601-199710

175/70R14

main42652-05120×4iAT190,CT190,ST191..UKP199601-199710

185/65R14,*B/S

main42652-05130×4iAT190,CT190,ST191..UKP199601-199710

185/65R14

42652ATIRE (FOR SPARE)

main42652-05080iAT190..UKP199601-199710

175/70R14

main42652-05120iAT190,CT190,ST191..UKP199601-199710

185/65R14,*B/S

main42652-05130iAT190,CT190,ST191..UKP199601-199710

185/65R14

7 parts on this diagram · 2 diagrams in section
