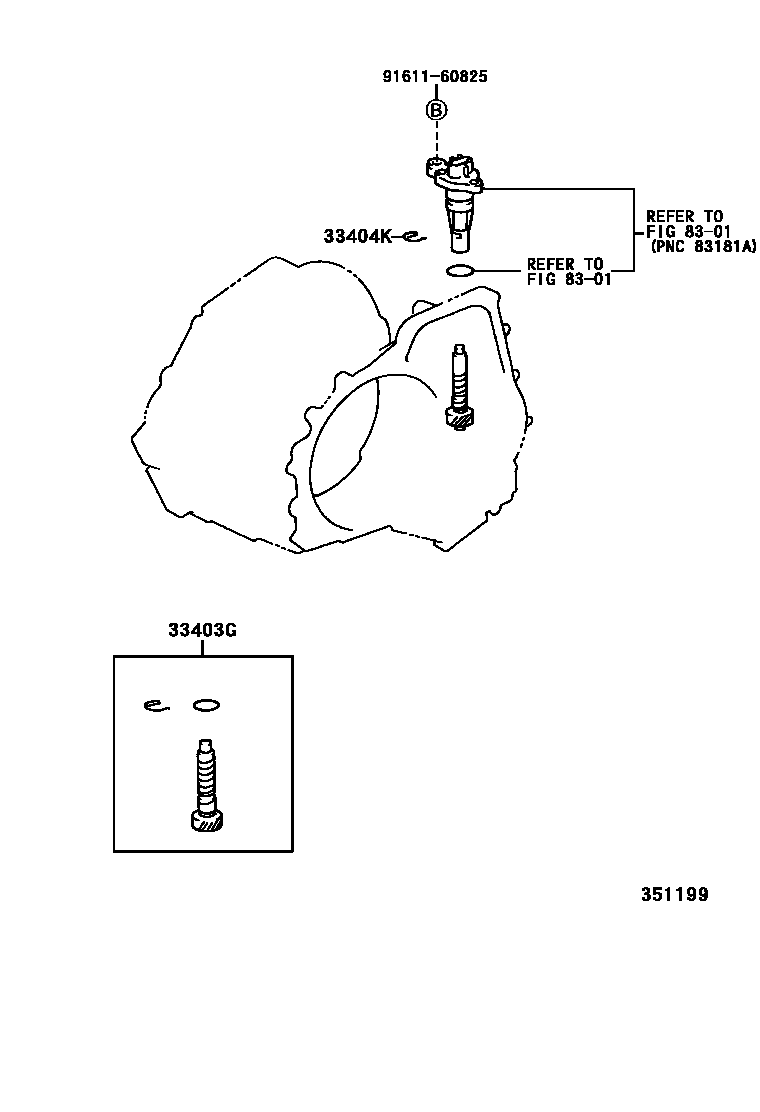

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1A245E 0002 1A241E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19455199601-199710

main33403-19535199601-199710

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005199601-199710

8301METER

→ Go to FIG 83-01

9161160825

main91611-60825

4 parts on this diagram · 2 diagrams in section
