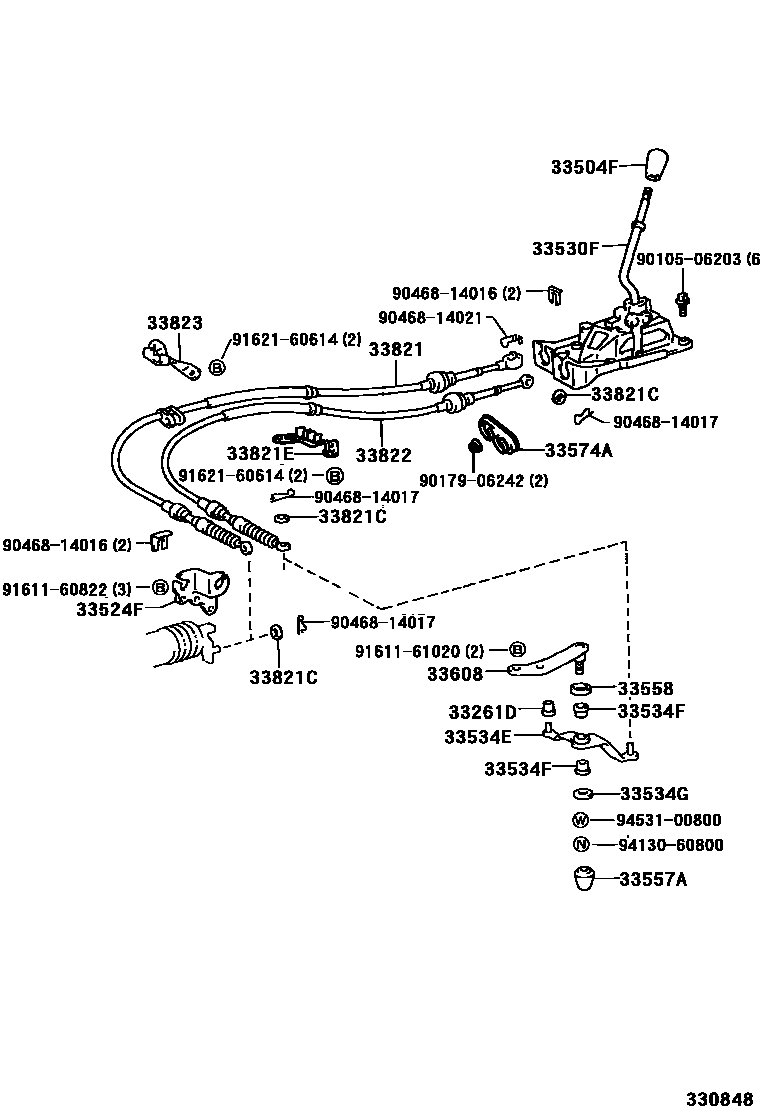

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33261DBUSH (FOR SHIFT & SELECT LEVER)

main33557-33010iAT190..UKP..MTM199601-199710

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05010-C0iAT190,CT190,ST191..UKP..MTM199601-199710

BLACK,TRIM1#,8#

main33504-05020-C0iAT190,CT190,ST191..UKP..MTM199601-199710

LEATHER,BLACK,TRIM1#,8#

main33542-20100-C0iST191..UKP..RHD..ATM199601-199710

BLACK,TRIM1#,8#

main33542-20150-C0iAT190,ST191..UKP..LHD..ATM199601-199710

BLACK,TRIM1#,8#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-12011iAT190..UKP..MTM199601-199710

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-05010iAT190,ST191..UKP..RHD..MTM199601-199710

main33530-05020iAT190,CT190,ST191..UKP..LHD..MTM199601-199710

33534ECRANK, SELECTING BELL, NO.2

main33534-16051iAT190..UKP..MTM199601-199710

main33534-33010iCT190,ST191..UKP..MTM199601-199710

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022iAT190,CT190,ST191..UKP..MTM199601-199710

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iAT190,CT190,ST191..UKP..MTM199601-199710

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iAT190,CT190,ST191..UKP..MTM199601-199710

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iAT190..UKP..MTM199601-199710

main33558-32010iCT190,ST191..UKP..MTM199601-199710

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-20350iAT190,CT190,ST191..UKP..MTM199601-199710

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-16021iAT190..UKP..MTM199601-199710

main33608-33010iCT190,ST191..UKP..MTM199601-199710

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-05010iAT190..UKP..MTM199601-199710

main33821-05020iST191..UKP..MTM199601-199710

main33821-05030iCT190..UKP199601-199710

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08023iAT190,CT190,ST191..UKP..MTM199601-199710

SHIFT LEVER SIDE

main90201-08077iAT190,CT190,ST191..UKP..MTM199601-199710

OD=30,TRANSAXLE SIDE

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main90949-01805iAT190,CT190,ST191..UKP..MTM199601-199710

main90949-01807iAT190..UKP..ATM199601-199710

main90949-01810iST191..UKP..ATM199601-199710

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-05010iAT190..UKP..MTM199601-199710

main33822-05020iST191..UKP..MTM199601-199710

main33822-05030iCT190..UKP199601-199710

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-05020iAT190,CT190,ST191..UKP..MTM199601-199710

main33823-20070iAT190..UKP..ATM199601-199710

main33823-20080iST191..UKP..ATM199601-199710

9010506203

main90105-06203

9017906242

main90179-06242

9046814016

main90468-14016

9046814017

main90468-14017

9046814021

main90468-14021

9161160822

main91611-60822

9161161020

main91611-61020

9162160614

main91621-60614

9413060800

main94130-60800

9453100800

main94531-00800

26 parts on this diagram · 5 diagrams in section
