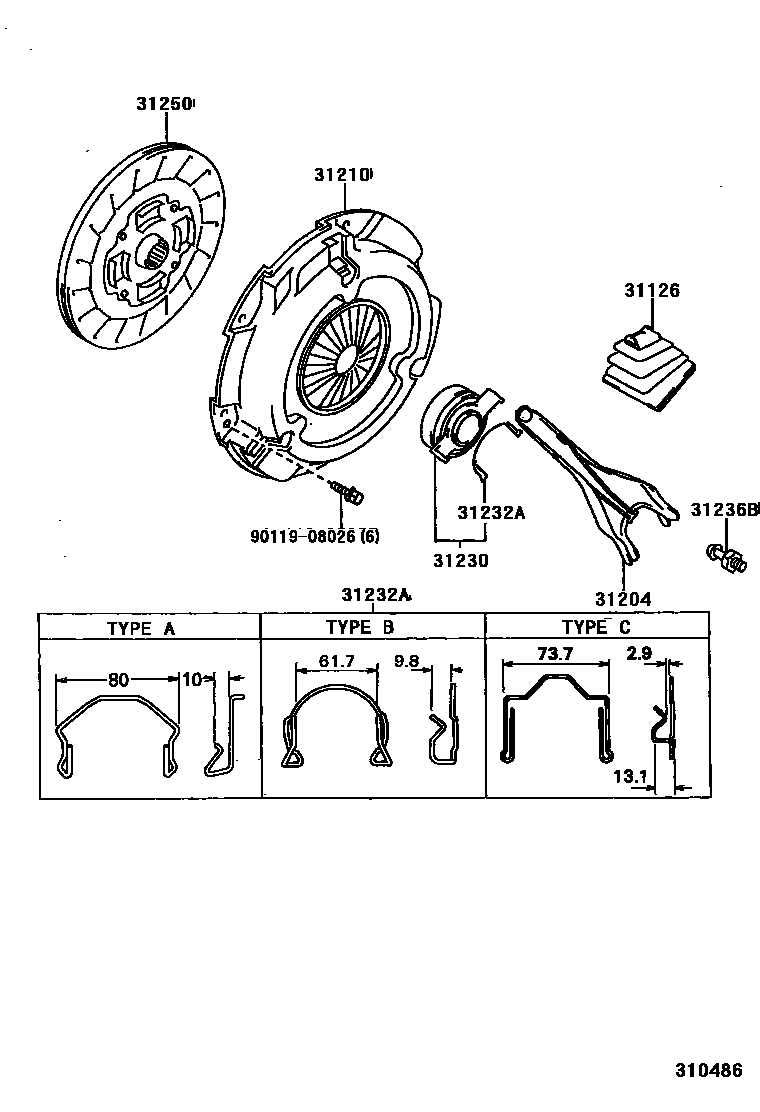

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAT190..UKP..MTM199601-199710

main31126-32010iCT190,ST191..UKP..MTM199601-199710

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iAT190..UKP..MTM199601-199710

main31204-20100iCT190,ST191..UKP..MTM199601-199710

31210COVER ASSY, CLUTCH

main31210-05010iAT190..UKP..MTM199601-199606

main31210-05011iAT190..UKP..MTM199606-199710

main31210-05020iCT190,ST191..UKP..MTM199601-199610

main31210-05021iCT190,ST191..UKP..MTM199610-199710

31230BEARING ASSY, CLUTCH RELEASE

main31230-05010iAT190..UKP..MTM199601-199710

main31230-05020iCT190,ST191..UKP..MTM199601-199710

31232ACLIP, RELEASE BEARING HUB

main31232-05010iAT190,CT190,ST191..UKP..MTM199601-199710

TYPE A:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12020iAT190..UKP..MTM199601-199710

main31236-32010iCT190,ST191..UKP..MTM199601-199710

31250DISC ASSY, CLUTCH

main31250-05010iAT190..UKP..MTM199601-199709

main31250-05011iAT190..UKP..MTM199709-199710

main31250-05020iST191..UKP..MTM199601-199710

main31250-05030iCT190..UKP199601-199710

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
