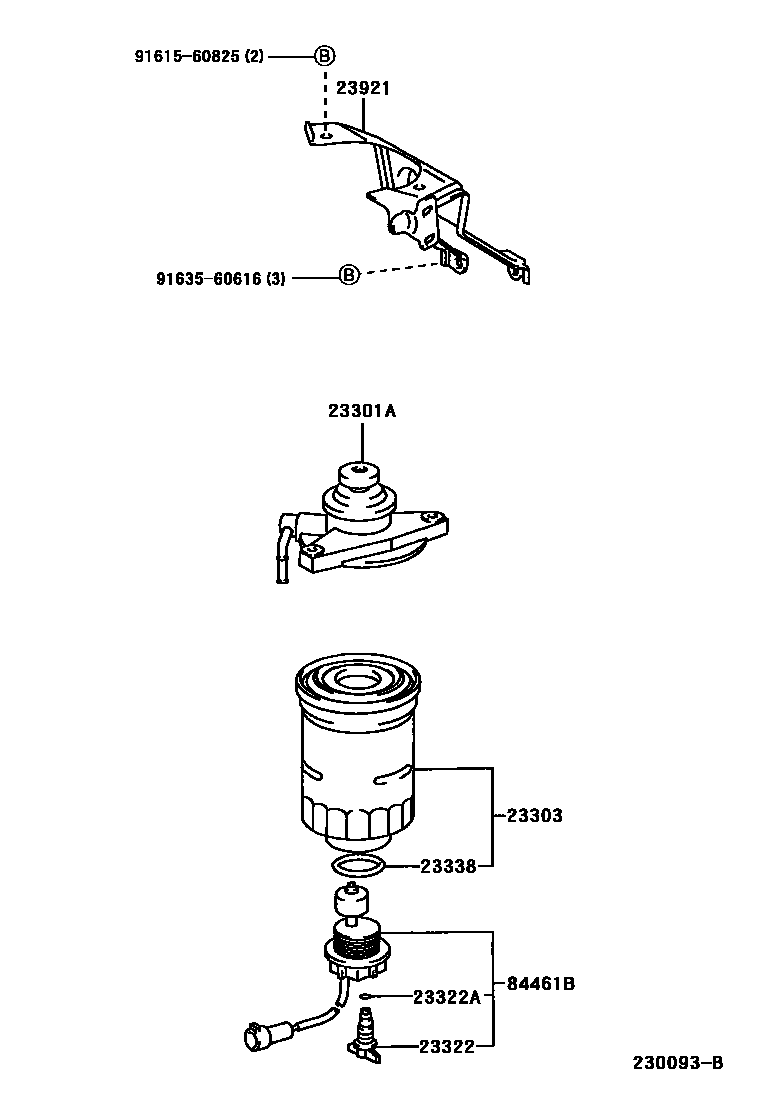

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23380-64450i2CT..CT190..UKP199601-199710

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i2CT..CT190..UKP199601-199710

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2CT..CT190..UKP199601-199710

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2CT..CT190..UKP199601-199710

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2CT..CT190..UKP199601-199710

23921SUPPORT, FUEL FILTER

main23921-64240i2CT..CT190..UKP199601-199710

84461BSWITCH, LEVEL WARNING

main84461-20090iCT190..UKP199601-199710

9161560825

main91615-60825

9163560616

main91635-60616

9 parts on this diagram · 1 diagram in section
