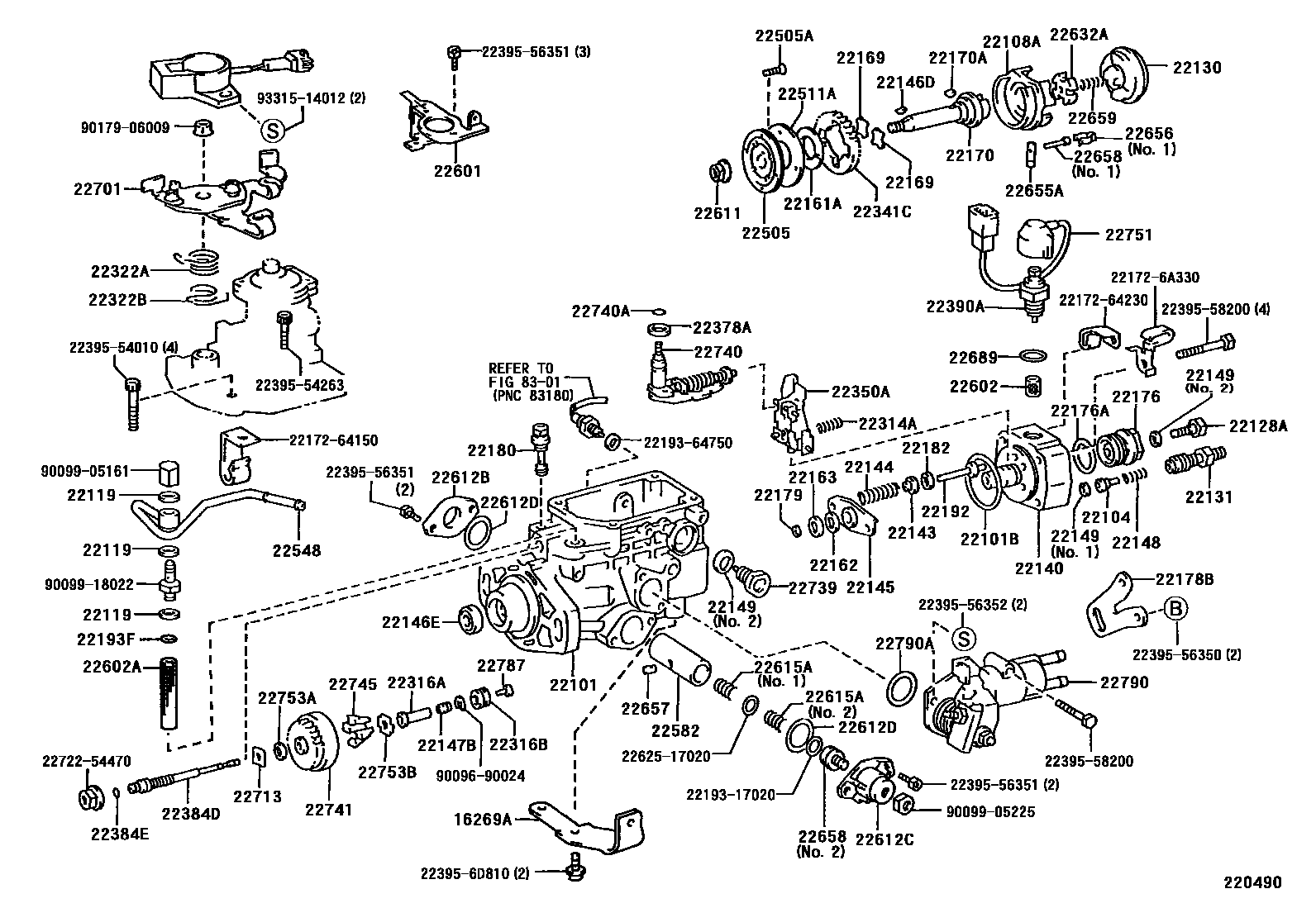

INJECTION PUMP BODY
16269ASUPPORT, WATER BY-PASS PIPE
22101HOUSING SUB-ASSY, INJECTION PUMP
22101BRING, O(FOR INJECTION PUMP HOUSING)
22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22108ARING SUB-ASSY, ROLLER
22119WASHER, AIR BLEEDER NIPPLE
22128ABOLT, DISTRIBUTIVE HEAD
22130CAMPLATE SUB-ASSY, FACE
22131HOLDER, DELIVERY VALVE
22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22143SEAT, SPRING UPPER
22144SPRING, PUMP PLUNGER
22145SEAT, SPRING, LOWER
22146DKEY(FOR DRIVE GEAR)
22146ESEAL(FOR DRIVE SHAFT)
22147BRING, GOVERNOR SLEEVE
22148SPRING, DELIVERY VALVE
22149GASKET, DELIVERY VALVE
NO.2
NO.1
NO.3
22161AWASHER, DRIVE SHAFT
22162PLATE, PLUNGER UPPER
22163PLATE, PLUNGER LOWER
22169JOINT, RUBBER
22170SHAFT SUB-ASSY, DRIVE
22170AKEY(FOR DRIVE SHAFT)
22176PLUG, DISTRIBUTIVE HEAD
22178BBRACKET(FOR INJECTION PUMP ASSY)
22179SHIM, PLUNGER ADJUSTING
T=1.9
T=2.0
T=2.3
T=2.4
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
22180VALVE SUB-ASSY, REGULATOR
22182PLATE, TAPPET ADJUSTING SHIM
T=0.5
T=0.8
T=1.0
T=1.2
T=1.5
T=1.8
22192GUIDE SUB-ASSY, PLUNGER SPRING
22193RING, O(FOR LEVER CONNECTING PIN)
22193FRING, O(FOR FUEL INJECTION PUMP FILTER)
22314ASPRING, LEVER SUPPORT
22316ASLEEVE, GOVERNOR
ID=0.85
ID=0.90
ID=0.80
22316BBEARING, BALL(FOR GOVERNOR SLEEVE)
22322ASPRING, RETURN
22322BSPRING, RETURN(INNER)
22341CGEAR, GOVERNOR DRIVE
22350AGOVERNOR ASSY, TORQUE CONTROL
22378AWASHER, GOVERNOR THRUST
22384DSHAFT, GOVERNOR
22384ERING, O(FOR GOVERNOR MAIN SHAFT)
22390ASOLENOID ASSY, FUEL CUT
sub22390-6A511
22505PUMP SUB-ASSY, FUEL FEED
22505ASCREW(FOR FUEL FEED PUMP)
22511ACOVER, FEED PUMP
22548NIPPLE, SWIVEL
22582PISTON ASSY, TIMER
22601BRACKET SUB-ASSY, IDLE UP
22602FILTER SUB-ASSY, FUEL INJECTION PUMP
22602AFILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22611NUT, TIMER ROUND
22612BCOVER, TIMER
22612CCOVER, TIMER
22612DRING, O(FOR TIMER COVER)
22615ASPRING, TIMER OUTER
K=0.16,L=32.3
K=0.18,L=32.0
K=1.7,L=27.9
K=0.15,L=32.5
K=0.17,L=32.2
K=0.19,L=31.9
22632ACOUPLING, INJECTION PUMP
22655APIN, TIMER SLIDE
22656CLIP, TIMER
NO.1
NO.2
22657CLIP, TIMER
22658STOPPER, TIMER
NO.2
NO.1
22659SPRING, COUPLING
22689WASHER(FOR SWIVEL NIPPLE)
22701LEVER SUB-ASSY, ADJUSTING
MARK 393
MARK 394
22713WASHER, GOVERNOR GEAR ADJUSTING
T=1.05
T=1.25
T=1.45
T=1.65
T=1.85
22739BOLT, GOVERNOR LINK SUPPORT
22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)
22741HOLDER SUB-ASSY, FLYWEIGHT
22745FLYWEIGHT, DISTRIBUTIVE PUMP
22751WIRE SUB-ASSY, FUEL CUT SOLENOID
22753AWASHER, FLYWEIGHT, NO.1
22753BWASHER, FLYWEIGHT, NO.2
22787PLUG, GOVERNOR SLEEVE
L=3.3
L=3.4
L=3.5
L=3.6
L=3.7
L=3.8
L=3.9
L=4.0
L=4.1
L=3.0
L=3.1
L=3.2
L=4.2
22790COVER SUB-ASSY, TIMER
22790ARING, O(FOR TIMER COVER)
8301
2217264150CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64150
2217264230CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-64230
221726A330CLIP, CONNECTOR SUPPORT, SOLENOID
main22172-6A330
2219317020RING, O(FOR LEVER CONNECTING PIN)
main22193-17020
2219364750RING, O(FOR LEVER CONNECTING PIN)
main22193-64750
2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54010
2239554263BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-54263
2239556350BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56350
2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56351
2239556352BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-56352
2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-58200
223956D810BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)
main22395-6D810
2262517020WASHER, TIMER SENSOR ADJUSTING
main22625-17020
2272254470NUT, GOVERNOR SHAFT ROCK
main22722-54470
9009690024
main90096-90024
9009905161
main90099-05161
9009905225
main90099-05225
9009918022
main90099-18022
9017906009
main90179-06009
9331514012
main93315-14012
98 parts on this diagram · 2 diagrams in section
