DISTRIBUTOR

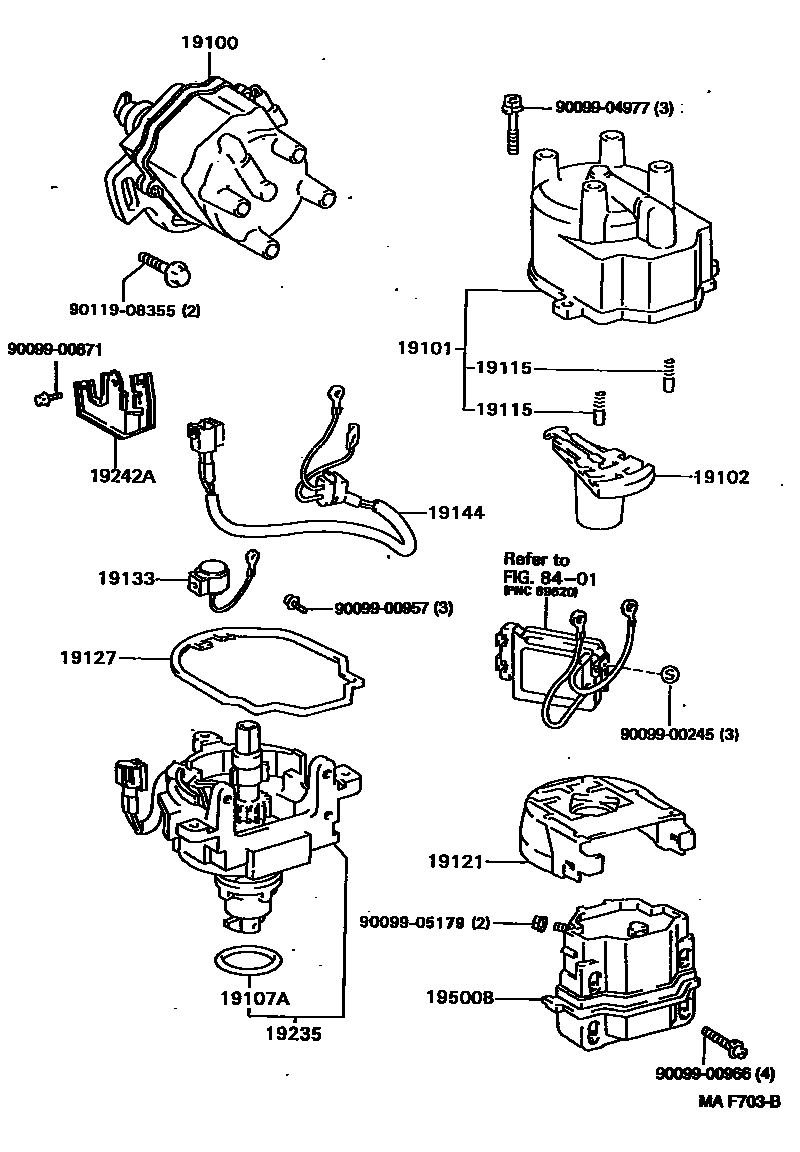

Parts diagram

19100DISTRIBUTOR ASSY

main19020-16260i199601-199710

main19050-74040i199601-199710

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199601-199710

main19101-74180i199601-199710

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199601-199710

main19102-11370i199601-199710

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14127i199601-199710

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010i199601-199710

19121COVER, DUST PROOF

main19121-11080i199601-199710

19127PACKING, DUST PROOF

main19127-15120i199601-199710

main19127-74050i199601-199710

19133CONDENSER, DISTRIBUTOR

main19133-16240i199601-199710

19144LEAD, DISTRIBUTOR BREAKER

main19144-16020i199601-199710

main19144-74100i199601-199710

19235HOUSING, DISTRIBUTOR

main19235-16270i199601-199710

main19235-74210i199601-199710

19242ACLAMP, CORD, NO.2

main19242-15180i199601-199710

19500BCOIL ASSY, IGNITION

main90919-02163i199601-199710

main90919-02164i199601-199710

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009900245

main90099-00245

9009900871

main90099-00871

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9011908355

main90119-08355

20 parts on this diagram · 2 diagrams in section
