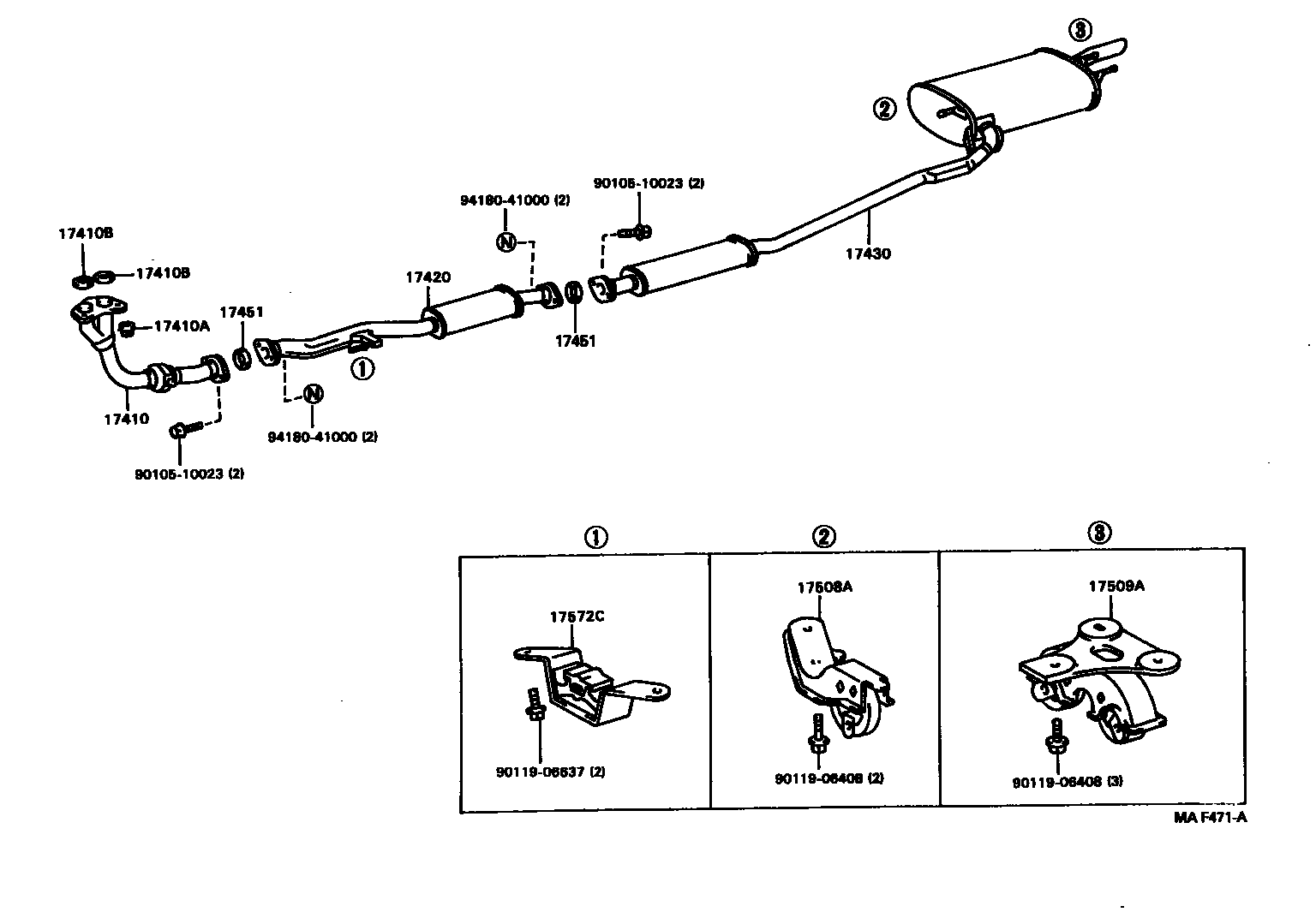

EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-02320199601-199710

main17410-03220199601-199710

main17410-0B010199601-199710

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070199601-199710

17410BGASKET, EXHAUST PIPE

main17451-64010199601-199710

main90917-06061199601-199710

main90917-06064199601-199710

17420PIPE ASSY, EXHAUST, CENTER

main17420-02110199601-199608

main17420-02111199608-199710

17430PIPE ASSY, EXHAUST, TAIL

main17430-02140199601-199710

main17430-0B020199601-199710

17451GASKET, EXHAUST PIPE

main90917-06046199601-199710

main90917-06048199601-199710

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-74030199601-199710

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-74110199601-199710

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-02020199601-199608

main17571-02030199608-199710

9010510023

main90105-10023

9011906408

main90119-06408

9011906637

main90119-06637

9418041000

main94180-41000

13 parts on this diagram · 3 diagrams in section
