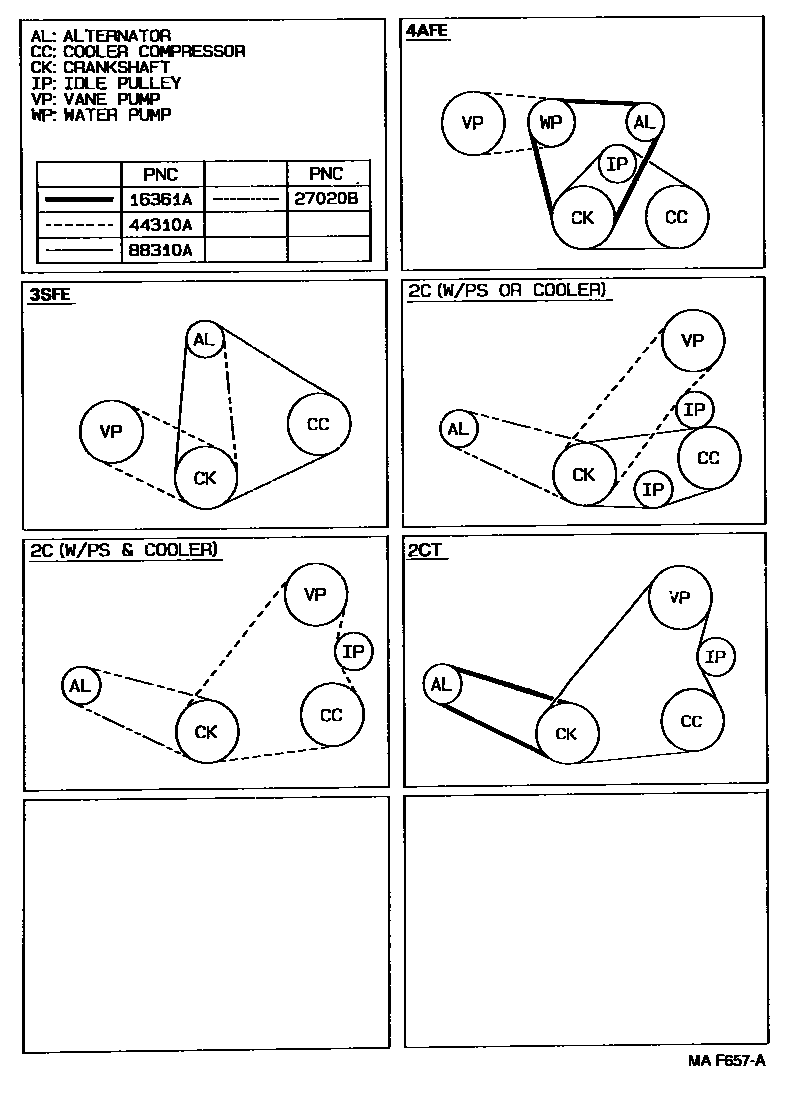

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91050i4AFE..AT190..UKP199601-199710

L=970

main90916-02372i2CT..CT190..UKP199601-199710

L=940

27020BBELT, V(FOR ALTERNATOR)

main90916-02370i3SFE..ST191..UKP199601-199710

44310ABELT, V(FOR VANE PUMP)

main90080-91078iAT190..UKP199601-199710

L=630

main90080-91079iST191..UKP199601-199710

L=760

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02345iST191..UKP199601-199710

L=1115,W(AIR CONDITIONER=DOP)

main99364-20850iAT190..UKP199601-199710

L=850

main99365-21130iST191..UKP199601-199710

L=1130,W(AIR CONDITIONER)

main99365-21210iCT190..UKP199601-199710

L=1210

4 parts on this diagram · 1 diagram in section
