ENGINE OIL PUMP

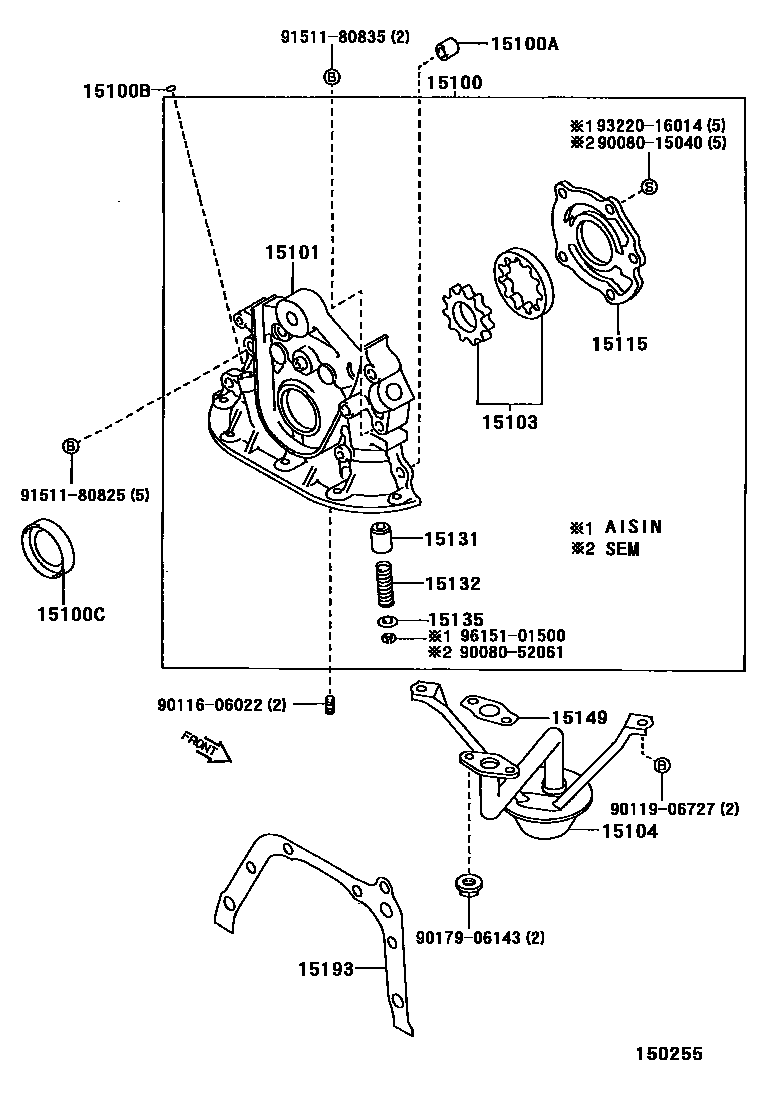

Parts diagram

15100PUMP ASSY, OIL

main15100-02030i199601-199710

SEM

main15100-15060i199601-199710

AISIN SEIKI

main15100-64040i199601-199710

main15100-74060i199601-199710

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i199601-199710

15100BRING, O(FOR OIL PUMP)

main15188-74050i199608-199710

main15188-88382i199601-199608

main96721-19010i199601-199710

15100CSEAL(FOR OIL PUMP)

main15165-74020i199601-199710

main90311-32018i199601-199702

main90311-32020i199702-199710

15101BODY SUB-ASSY, OIL PUMP

main15011-15060i199601-199710

AISIN SEIKI

main15101-02030i199601-199710

SEM

15103GEAR SET, OIL PUMP

main15103-02030i199601-199710

SEM

main15103-15020i199601-199710

AISIN SEIKI

15104STRAINER SUB-ASSY, OIL

main15104-15090i199601-199710

main15104-64080i199601-199710

main15104-74090i199605-199710

main15104-88380i199601-199605

15115COVER, OIL PUMP

main15115-02030i199601-199710

SEM

main15115-15020i199601-199710

AISIN SEIKI

15131VALVE, OIL PUMP RELIEF

main15131-02030i199601-199710

SEM

main15131-24010i199601-199710

AISIN SEIKI

main15131-64020i199601-199710

15132SPRING, OIL PUMP RELIEF VALVE

main15132-02030i199601-199710

SEM

main15132-40010i199601-199710

AISIN SEIKI

main15132-64012i199601-199710

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-02030i199601-199710

SEM

main15135-15010i199601-199710

AISIN SEIKI

15149GASKET, OIL STRAINER FLANGE

main15149-02020i199601-199710

15193GASKET, OIL PUMP

main15193-64021i199601-199710

main15197-15030i199601-199710

main15197-74040i199601-199710

9008015040

main90080-15040

9008052061

main90080-52061

9011606022

main90116-06022

9011906727

main90119-06727

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

22 parts on this diagram · 3 diagrams in section
