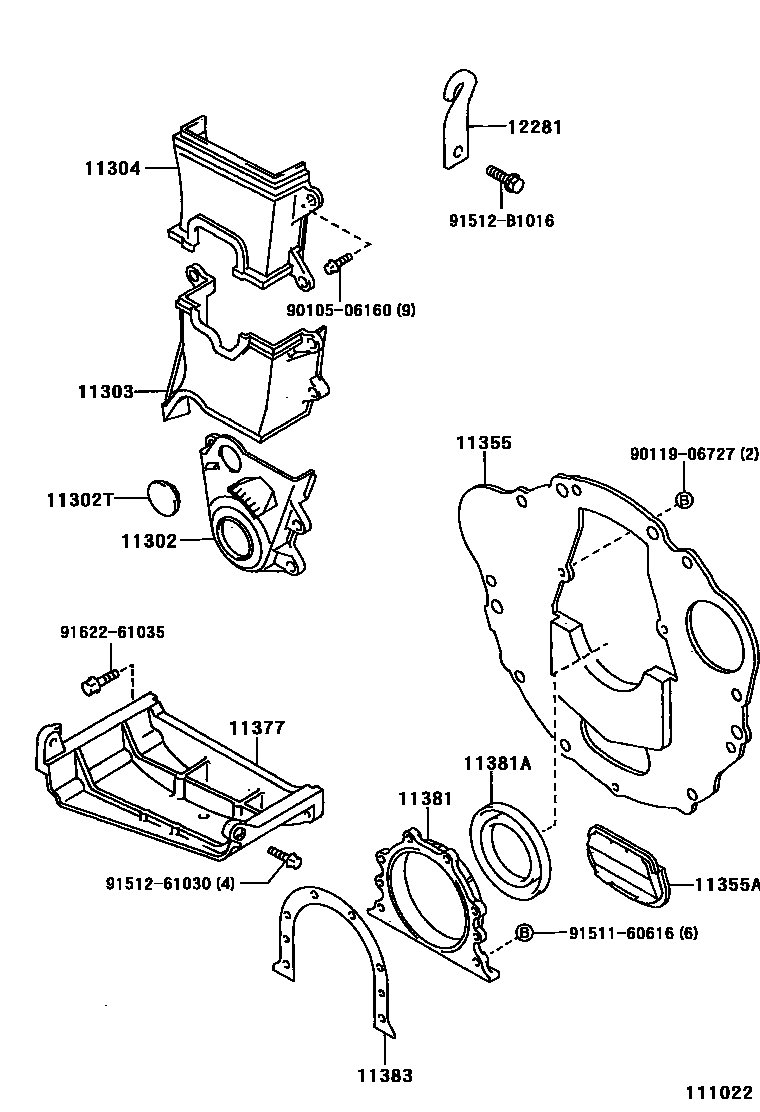

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-02030i4AFE..AT190..UKP199601-199710

main11302-74040i3SFE..ST191..UKP199601-199710

11302TPLUG, HOLE

main90950-01783i4AFE..AT190..UKP199601-199710

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-02030i4AFE..AT190..UKP199601-199710

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74050i3SFE..ST191..UKP199601-199710

main11304-02030i4AFE..AT190..UKP199601-199710

11355PLATE, REAR END

main11355-02020i4AFE..AT190..UKP..MTM199601-199710

main11355-02030i4AFE..AT190..UKP..ATM199601-199710

main11355-64051i2CT..CT190..UKP199601-199710

main11355-74010i3SFE..ST191..UKP199601-199710

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE..AT190..UKP..ATM199601-199710

11377STIFFENER, REAR END PLATE

main11377-02011i4AFE..AT190..UKP199601-199710

main11377-03010i3SFE..ST191..UKP199601-199710

11381RETAINER, ENGINE REAR OIL SEAL

main11381-02020i4AFE..AT190..UKP199601-199710

main11381-63012i3SFE..ST191..UKP199601-199710

main11381-64012i2CT..CT190..UKP199601-199710

11381ASEAL, ENGINE REAR OIL

main90080-31012i4AFE..AT190..UKP199601-199710

main90311-85006i3SFE..ST191..UKP199601-199710

ARS

main90311-85007i3SFE..ST191..UKP199601-199710

NOK

main90311-90008i2CT..CT190..UKP199601-199710

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-02020i4AFE..AT190..UKP199601-199710

main11383-74021i3SFE..ST191..UKP199601-199710

12281HANGER, ENGINE, NO.1

main12281-02020i4AFE..AT190..UKP199601-199710

9010506160

main90105-06160

9011906727

main90119-06727

9151160616

main91511-60616

9151261030

main91512-61030

91512B1016

main91512-B1016

9162261035

main91622-61035

17 parts on this diagram · 3 diagrams in section
