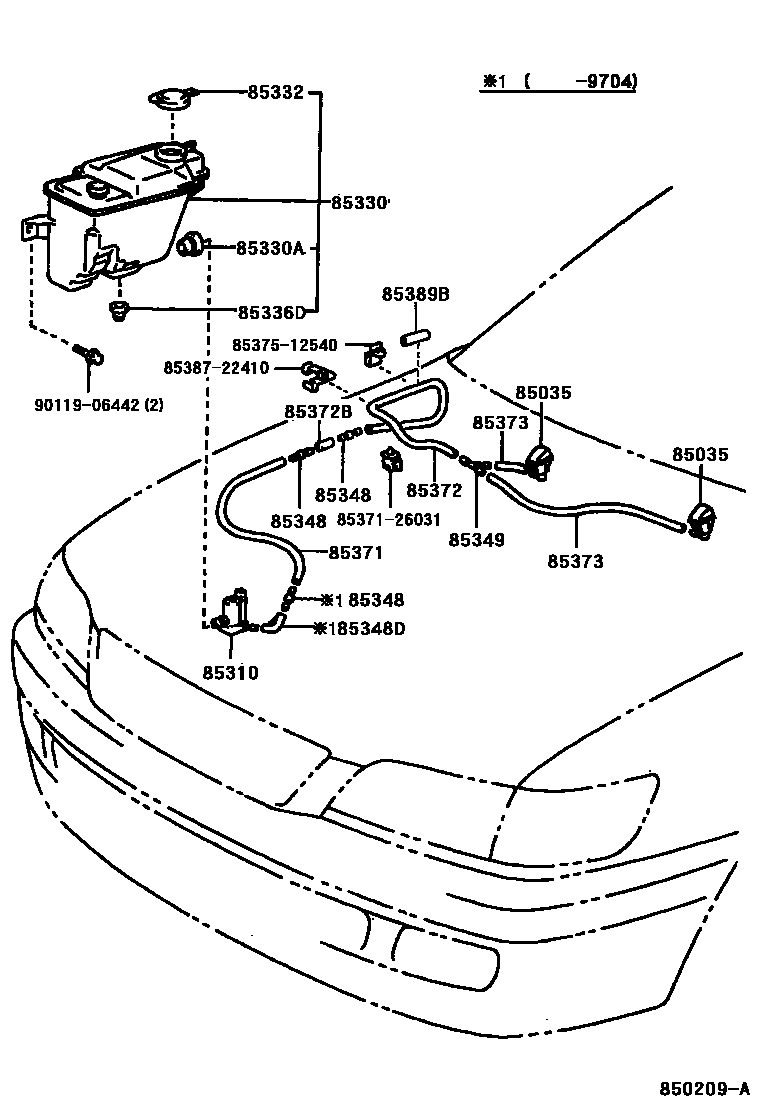

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-20030iAT210,ST210199601-199808

sub85381-12050

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iAT210,ST210199601-199808

85330JAR ASSY, WINDSHIELD WASHER

main85315-20390iAT210,ST210199601-199808

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT210,ST210199601-199808

85332CAP, WINDSHIELD WASHER JAR

main85316-12290iAT210,ST210199601-199808

85336DPACKING, WINDSHIELD WASHER JAR

main85336-20340iAT210,ST210199601-199808

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iAT210,ST210199601-199808

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iAT210,ST210199601-199704

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12250iAT210,ST210199601-199808

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-07001iAT210,ST210199601-199704

L=1800(*H,L=480)

main90446-07001iAT210,ST210199704-199808

L=1800(*H,L=530)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-59003iAT210,ST210199611-199712

L=1800(*H,L=1160)

main90099-59152iAT210,ST210199608-199611

main90099-59174iAT210,ST210199601-199608

L=1200

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iAT210,ST210199608-199808

L=1450(*H,L=30)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iAT210,ST210..ATM199808

L=1450(*H,L=60)

main90099-33080iAT210,ST210199608-199808

L=1450(*H,L=560)

main90099-33299iAT210,ST210199601-199608

L=1000(*H,L=60)

85389BPROTECTOR, WINDSHIELD WASHER

main85389-20840iAT210,ST210199706-199808

8537126031HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26031

8537512540HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-12540

8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410

9011906442

main90119-06442

18 parts on this diagram · 1 diagram in section
