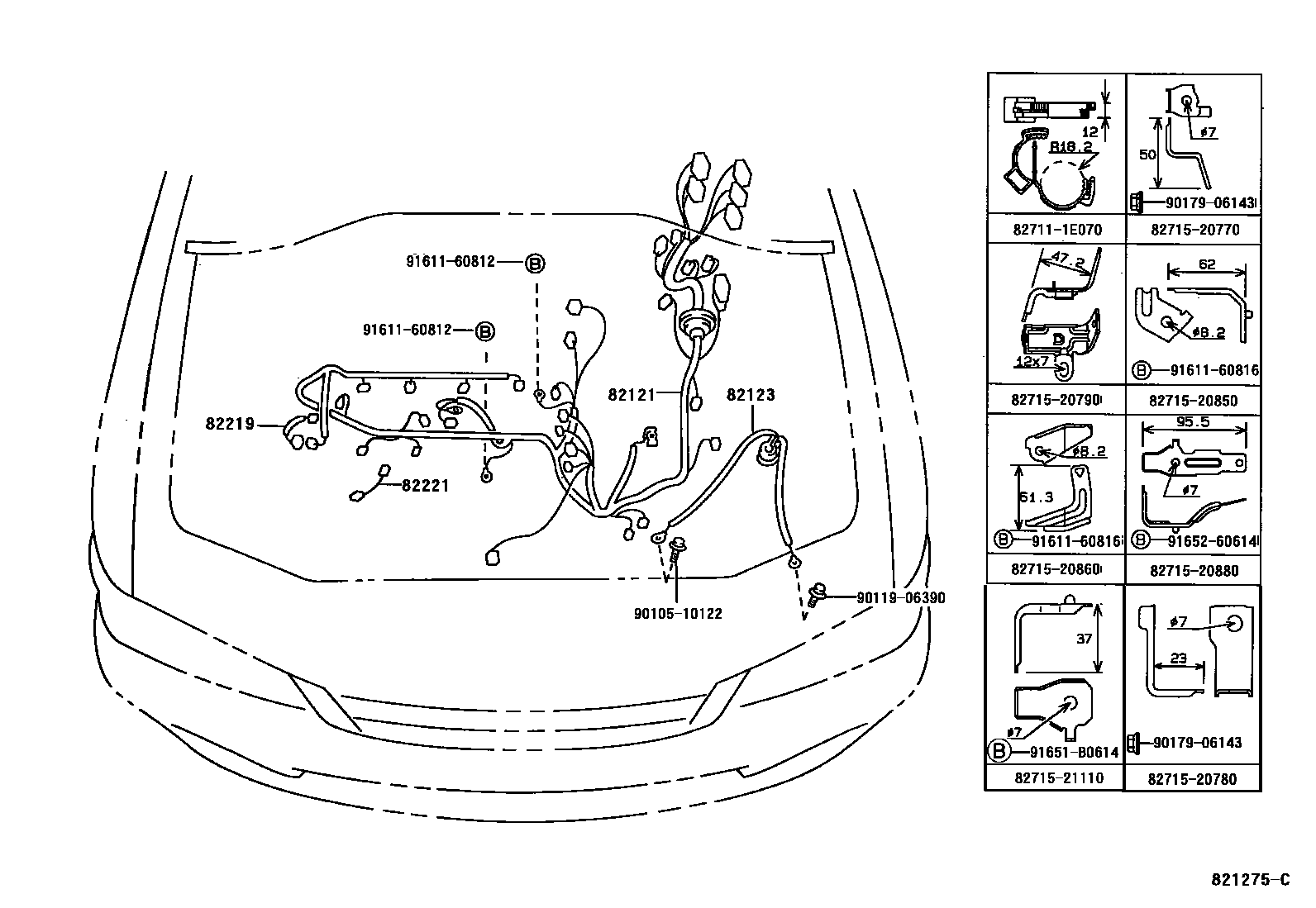

WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE ROOM 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1DOOR & ROOF 0007 1FLOOR & LUGGAGE 0008 1CABLE BOND 0009 1REPAIR

82121WIRE, ENGINE

main82121-21170iAT210..ATM199712-199808

main82121-21180iAT210..MTM199712-199808

main82121-2M010iAT210..ATM199601-199712

main82121-2M020iAT210..MTM199601-199712

main82121-2M030iST210199601-199712

main82121-2M120iST210199601-199712

HONG KONG SPEC

main82121-2M121iST210199712

main82121-2M360iAT210..ATM199808

82123WIRE, ENGINE, NO.3

main82123-20270iAT210..ATM199808

main82123-20300iST210199601

82219WIRE, THERMO SENSOR

main82219-20090iAT210199601-199808

82221WIRE, OIL PRESSURE SWITCH

main82221-20100iAT210199601-199808

main82221-20110iAT210..ATM199808

827111E070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E070

8271520770BRACKET,WIRING HARNESS CLAMP

main82715-20770

8271520780BRACKET,WIRING HARNESS CLAMP

main82715-20780

8271520790BRACKET,WIRING HARNESS CLAMP

main82715-20790

8271520850BRACKET,WIRING HARNESS CLAMP

main82715-20850

8271520860BRACKET,WIRING HARNESS CLAMP

main82715-20860

8271520880BRACKET,WIRING HARNESS CLAMP

main82715-20880

8271521110BRACKET,WIRING HARNESS CLAMP

main82715-21110

9010510122

main90105-10122

9011906390

main90119-06390

9017906143

main90179-06143

9161160812

main91611-60812

9161160816

main91611-60816

91651B0614

main91651-B0614

9165260614

main91652-60614

19 parts on this diagram · 9 diagrams in section
