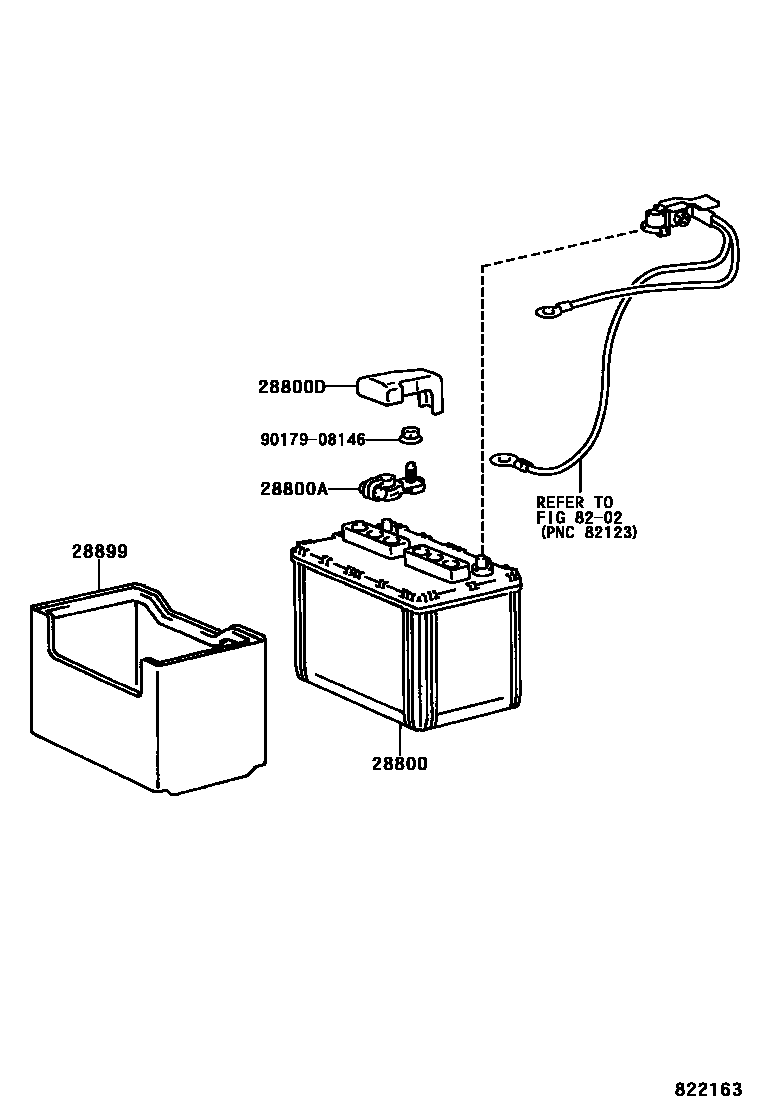

BATTERY & BATTERY CABLE

28800BATTERY

main28800-31101i4AFE,3SFE..AT210,ST210199601-199808

34B19L(S),SINKOBE

main28800-31111i4AFE,3SFE..AT210,ST210..ATM199808-200103

34B19L(S),MATSUSHITA

main28800-31112i4AFE,3SFE..AT210,ST210200103

34B19L(S),MATSUSHITA

main28800-31121i4AFE,3SFE..AT210,ST210..ATM199808-200103

34B19L(S),FURUKAWA

main28800-31122i4AFE,3SFE..AT210,ST210200103

34B19L(S),FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i4AFE,3SFE..AT210,ST210199601-199808

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-20350i4AFE,3SFE..AT210,ST210199601-199808

28899INSULATOR, BATTERY

main28899-74150i3SFE..ST210199601

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

6 parts on this diagram · 1 diagram in section
