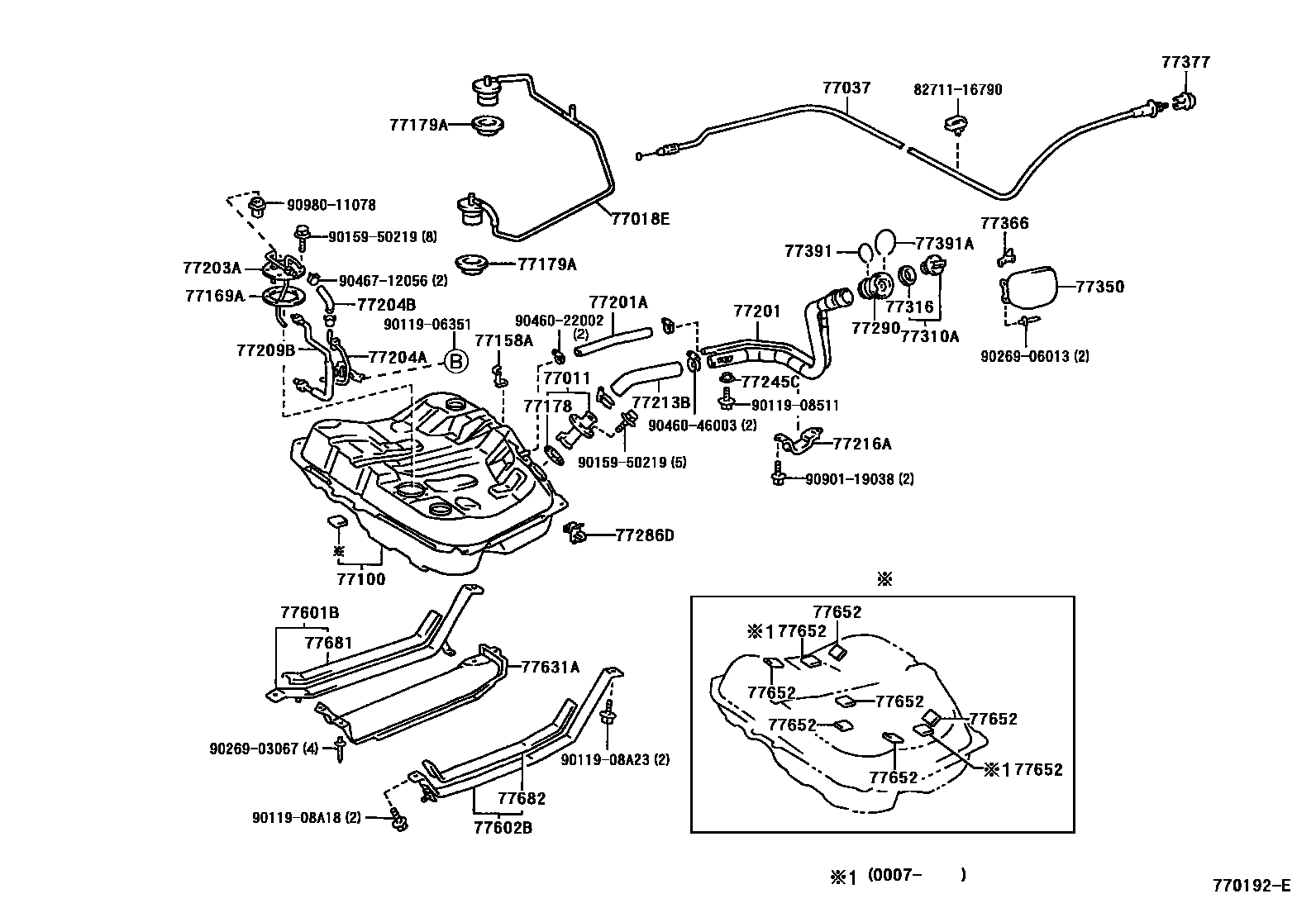

FUEL TANK & TUBE

0001 1 0002 1 0003 1HONG KONG SPEC

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-20100iAT210,ST210199601

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-20140iAT210,ST210199712

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20110iAT210,ST210199601

77100TANK ASSY, FUEL

main77001-20740iAT210,ST210199601

77158ASUPPORT, TANK SUCTION TUBE

main77158-20020×2iAT210,ST210199601

77169AGASKET, FUEL SUCTION TUBE SET

main77169-20050iAT210,ST210199601

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT210,ST210199601

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010×2iAT210,ST210199601

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20540iAT210,ST210199601

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22036iAT210,ST210199601

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-20150iAT210199601-199712

main77203-20170iST210199601-199712

main77203-21090iAT210,ST210199911

77204ATUBE, FUEL TANK RETURN

main77204-20090iAT210,ST210199601

77204BHOSE, FUEL(FOR FUEL RETURN)

main95333-06020iAT210,ST210199601

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-20110iAT210,ST210199601

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-20150iAT210,ST210199601

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20180iAT210,ST210199601

77245CSUPPORT, FUEL TANK

main77245-20120iAT210,ST210199601

77286DCLAMP, FUEL TUBE, NO.2

main77286-20100iAT210,ST210199601

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-20140iAT210,ST210199601

77310ACAP ASSY, FUEL TANK

main77310-16011iAT210,ST210199601-199803

main77310-48010iAT210,ST210199803

77316GASKET, FUEL TANK CAP

main77316-16010iAT210,ST210199601

77350LID ASSY, FUEL FILLER OPENING

main77350-20270iAT210,ST210199601

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAT210,ST210199601

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iAT210,ST210199601

77391RING, FUEL INLET BOX

main77391-12020iAT210,ST210199601

77391ARING, FUEL INLET BOX

main77391-20030iAT210,ST210199601

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20220iAT210,ST210199601

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iAT210,ST210199601

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-20090iAT210,ST210199601

77652CUSHION, FUEL TANK, NO.1

main77651-20090×6iAT210,ST210199601-200007

77681SEAT, FUEL TANK BAND, RH

main77681-32060iAT210,ST210199601

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAT210,ST210199601

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9011906351

main90119-06351

9011908511

main90119-08511

9011908A18

main90119-08A18

9011908A23

main90119-08A23

9015950219

main90159-50219

9026903067

main90269-03067

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046712056

main90467-12056

9090119038

main90901-19038

9098011078

main90980-11078

45 parts on this diagram · 3 diagrams in section
