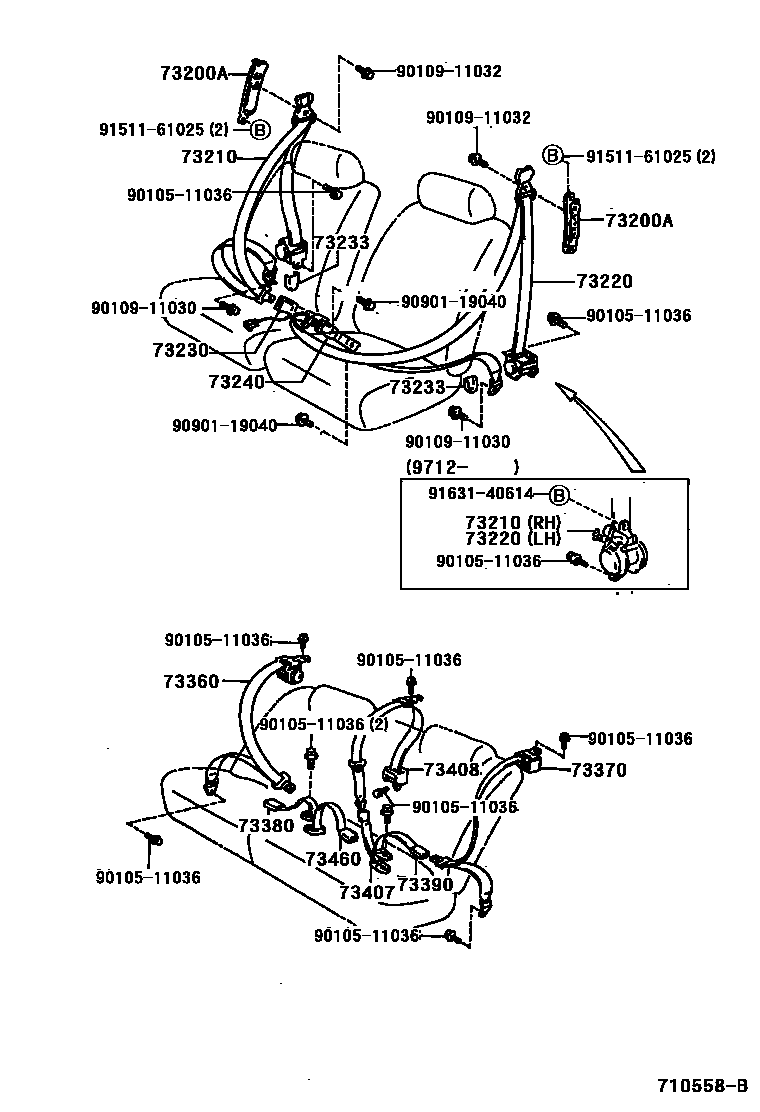

SEAT BELT & CHILD RESTRAINT SEAT

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-20031-B2×2iAT210,ST210199601-199712

LT.GRAY,TRIM1#

main73200-20031-B4×2iAT210,ST210199712

MD.CHARCOAL,TRIM17

main73200-20031-E2×2iAT210,ST210199601-199712

LT.ANTELOPE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-2B030-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73210-2B030-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

main73210-2B120-B0iAT210,ST210199712-199912

SHADOW GRAY,TRIM11

main73210-2B120-B1iAT210,ST210199712-199912

SHADOW GRAY,TRIM17

main73210-2B121-B0iAT210,ST210199912

SHADOW GRAY,TRIM11

main73210-2B121-B1iAT210,ST210199912

SHADOW GRAY,TRIM17

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20740-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73220-20740-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

main73220-20800-B0iAT210,ST210199712-199912

SHADOW GRAY,TRIM11

main73220-20800-B1iAT210,ST210199712-199912

SHADOW GRAY,TRIM17

main73220-20801-B0iAT210,ST210199912

SHADOW GRAY,TRIM11

main73220-20801-B1iAT210,ST210199912

SHADOW GRAY,TRIM17

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20780-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73230-20780-B1iAT210,ST210199712

DK.CHARCOAL,TRIM17

main73230-20780-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-C0×2iAT210,ST210199712

BLACK,TRIM11,17

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20730-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73230-20730-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main73230-21020-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main73230-21020-B1iAT210,ST210199712

DK.CHARCOAL,TRIM17

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-20770-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73360-20770-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

main73360-20790-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main73360-20790-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73360-20770-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73360-20770-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

main73360-20790-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main73360-20790-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-20500-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73380-20500-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

main73380-20500-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-20500-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main73380-20500-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

main73380-20500-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

73407BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER LH

main73407-20010-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73407-20010-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

main73407-20010-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

73408BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER

main73408-20010-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73408-20010-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

main73408-20020-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main73408-20020-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

73460BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER RH

main73460-20010-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main73460-20010-B1iAT210,ST210199712

SHADOW GRAY,TRIM17

main73460-20010-E0iAT210,ST210199601-199712

DK. ROSE,TRIM4#

9010511036

main90105-11036

9010911030

main90109-11030

9010911032

main90109-11032

9090119040

main90901-19040

9151161025

main91511-61025

9163140614

main91631-40614

19 parts on this diagram · 1 diagram in section
