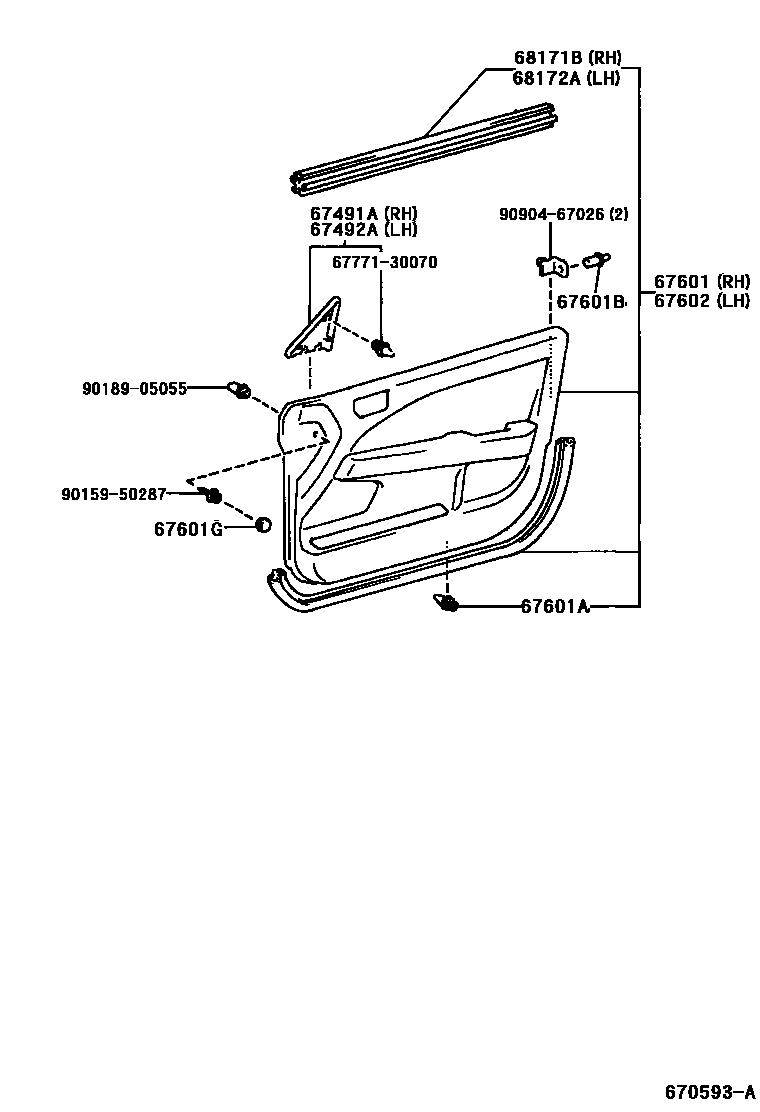

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20300-C0iAT210,ST210199712

BLACK,TRIM11,17

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20360-C0iAT210,ST210199712

BLACK,TRIM11,17

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2G050-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main67610-2G050-B3iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main67610-2G050-B7iAT210,ST210199712

DK. CHARCOAL,TRIM17

main67610-2G050-E3iAT210,ST210199601-199712

ANTELOPE,TRIM4#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-28020×12iAT210,ST210199901

main67771-32140×12iAT210,ST210199601-199901

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-E5×2iAT210,ST210199601-199712

ANTELOPE,TRIM4#

main90467-07066-P0×2iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main90467-07066-P1×2iAT210,ST210199712

DK.CHARCOAL,TRIM17

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B0×2iAT210,ST210199712

SHADOW GRAY,TRIM11

main90950-01800-B5×2iAT210,ST210199712

DK.CHARCOAL,TRIM17

main90950-01800-E3×2iAT210,ST210199601-199712

ANTELOPE,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-2L750-B0iAT210,ST210199712

SHADOW GRAY,TRIM11

main67620-2L750-B3iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main67620-2L750-B6iAT210,ST210199712

DK. CHARCOAL,TRIM17

main67620-2L750-E3iAT210,ST210199601-199712

ANTELOPE,TRIM4#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-20080iAT210,ST210199601

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-20070iAT210,ST210199601

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9015950287

main90159-50287

9018905055

main90189-05055

9090467026

main90904-67026

13 parts on this diagram · 2 diagrams in section
