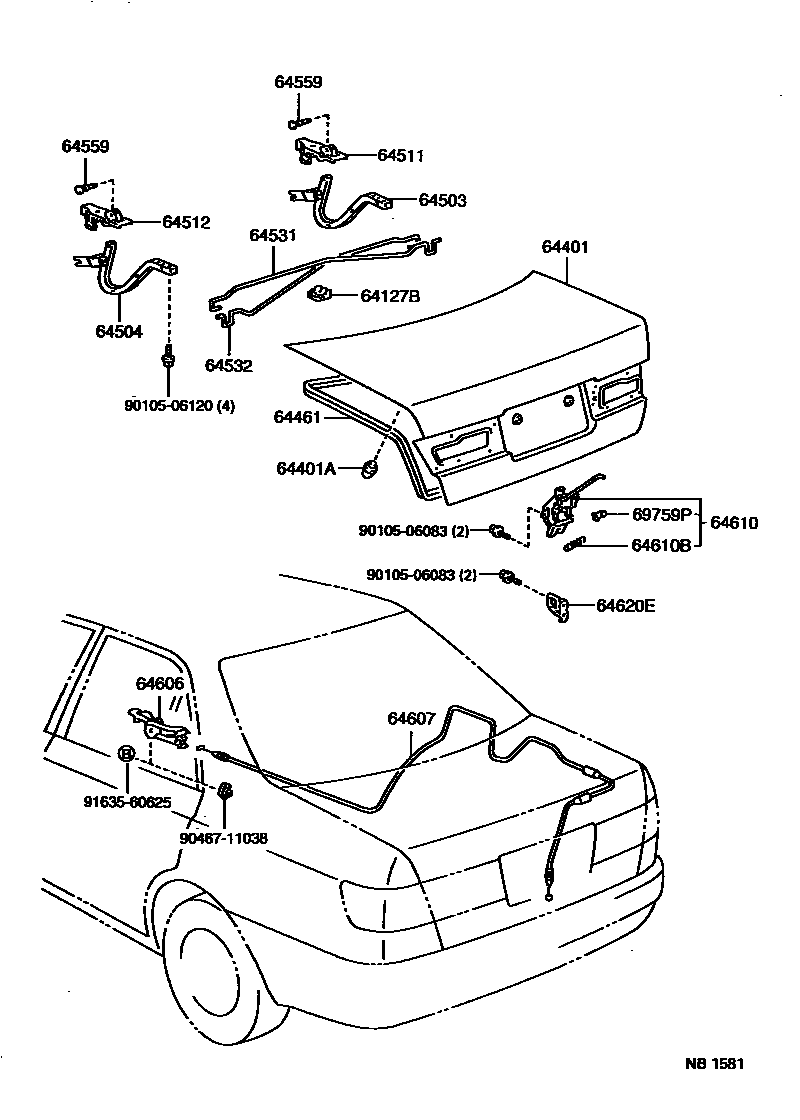

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-20120iAT210,ST210199601

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B580iAT210,ST210199601

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09088×2iAT210,ST210199601

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20390iAT210,ST210199601

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-20100iAT210,ST210199601

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-20100iAT210,ST210199601

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-20230iAT210,ST210199601

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64511-20230iAT210,ST210199601

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20570iAT210,ST210199601

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20570iAT210,ST210199601

64559PIN, LUGGAGE DOOR HINGE

main64559-32020×2iAT210,ST210199601

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20180iAT210,ST210199601

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-2B040iAT210,ST210199601

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20290iAT210,ST210199601

64610BSPRING, TENSION(FOR LOCK)

main90506-05001iAT210,ST210199601

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-12070iAT210,ST210199601

69759PSNAP, DOOR LOCK CONTROL LINK

main69759-24050iAT210,ST210199601

9010506083

main90105-06083

9010506120

main90105-06120

9046711038

main90467-11038

9163560625

main91635-60625

21 parts on this diagram · 1 diagram in section
