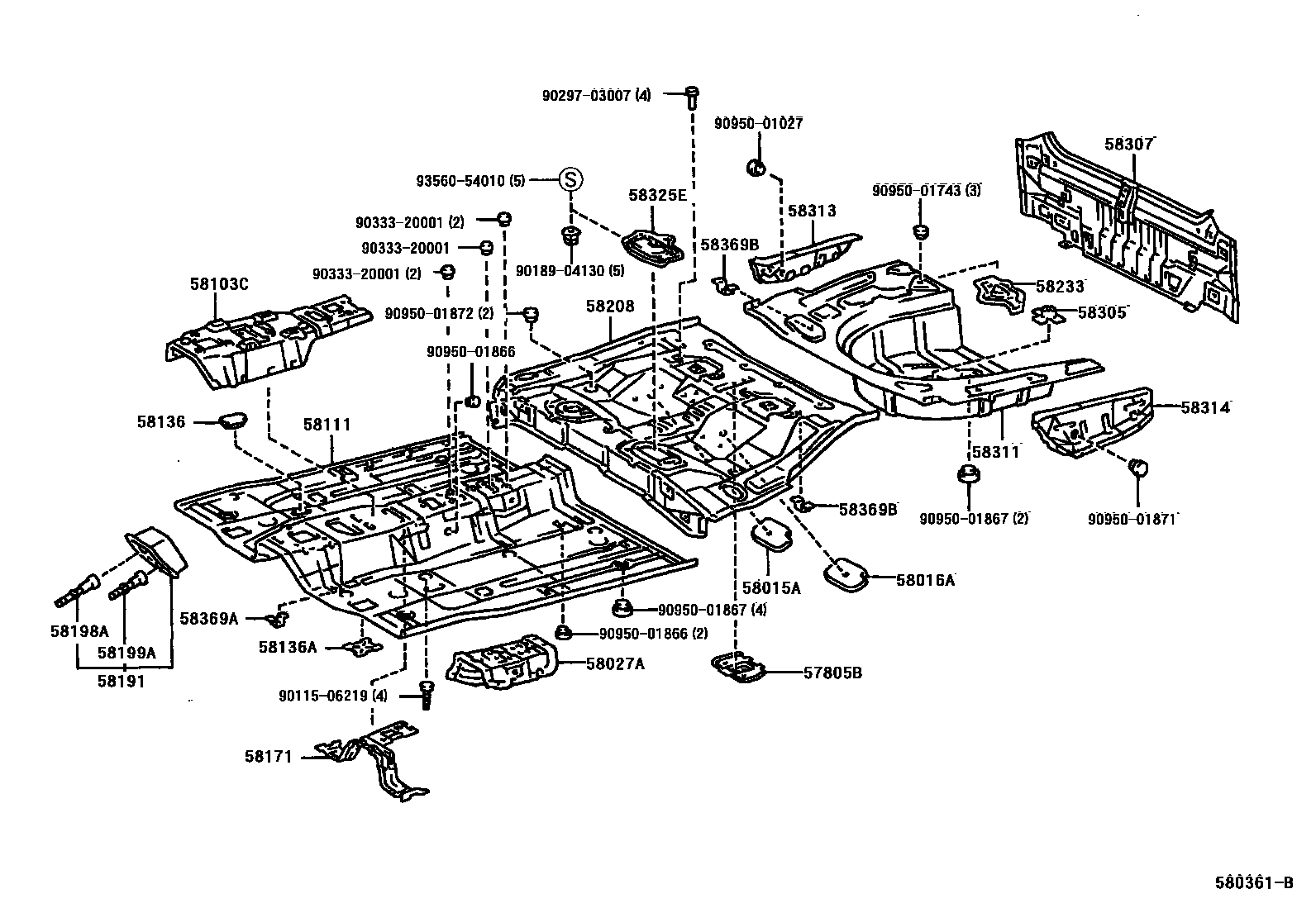

FLOOR PAN & LOWER BACK PANEL
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58136COVER, FRONT FLOOR HOLE
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58233BRACKET, EXHAUST PIPE MOUNTING
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
FOR REAR FLOOR PAN
FOR CENTER FLOOR PAN
9011506219
main90115-06219
9018904130
main90189-04130
9029703007
main90297-03007
9033320001
main90333-20001
9095001027
main90950-01027
9095001743
main90950-01743
9095001866
main90950-01866
9095001867
main90950-01867
9095001871
main90950-01871
9095001872
main90950-01872
9356054010
main93560-54010
33 parts on this diagram · 1 diagram in section
