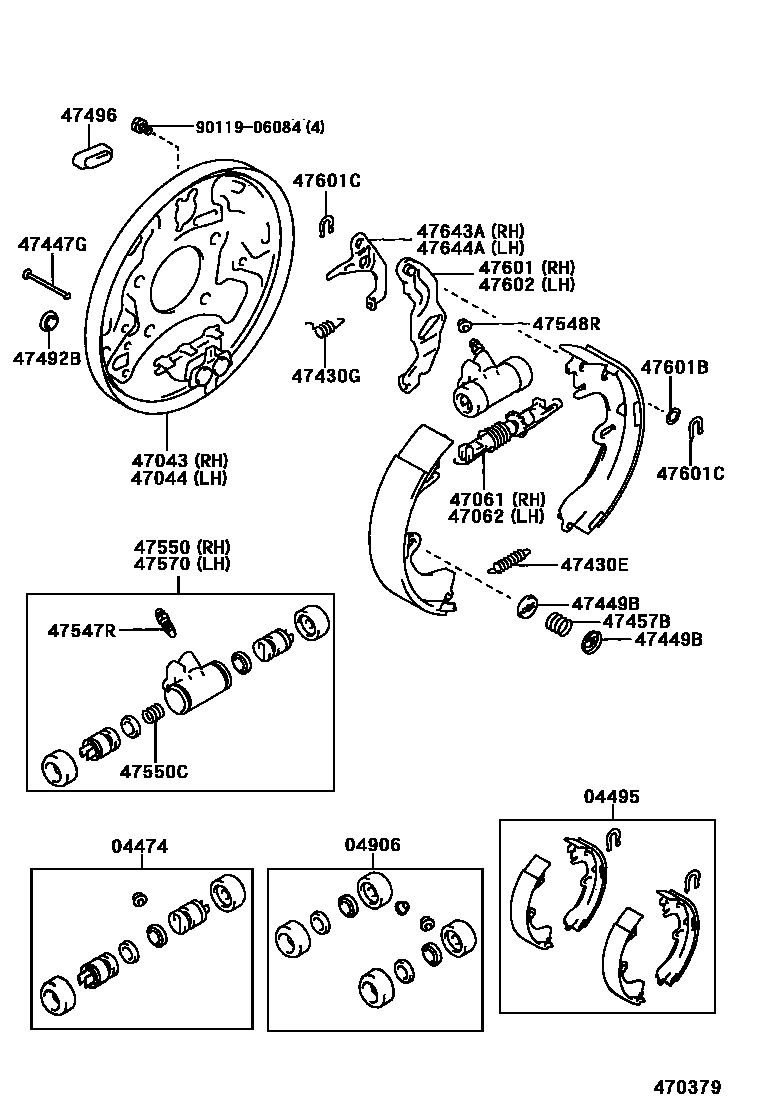

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iAT210,ST210199601-200103

sub04474-63020

main04474-63020iAT210,ST210200103

04495SHOE KIT, REAR BRAKE

main04495-12210iAT210,ST210199601

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iAT210,ST210199601

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20130iAT210,ST210199601-199612

main47043-32010iAT210,ST210199612

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20130iAT210,ST210199601-199612

main47044-32010iAT210,ST210199612

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iAT210,ST210199601

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iAT210,ST210199601

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAT210,ST210199601

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAT210,ST210199601

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iAT210,ST210199601

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iAT210,ST210199601

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iAT210,ST210199601

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAT210,ST210199601

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAT210,ST210199601

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAT210,ST210199601

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAT210,ST210199601

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20150iAT210,ST210199601

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iAT210,ST210200103

main90501-07006iAT210,ST210199601-200103

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20060iAT210,ST210199601

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAT210,ST210199601

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAT210,ST210199601

T=0.3

main90564-08151iAT210,ST210199601

T=0.6

main90564-08152iAT210,ST210199601

T=0.9

main90564-08172iAT210,ST210199601

T=0.2

main90564-08173iAT210,ST210199601

T=0.4

main90564-08174iAT210,ST210199601

T=0.5

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAT210,ST210199601

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAT210,ST210199601

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAT210,ST210199601

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAT210,ST210199601

9011906084

main90119-06084

26 parts on this diagram · 1 diagram in section
