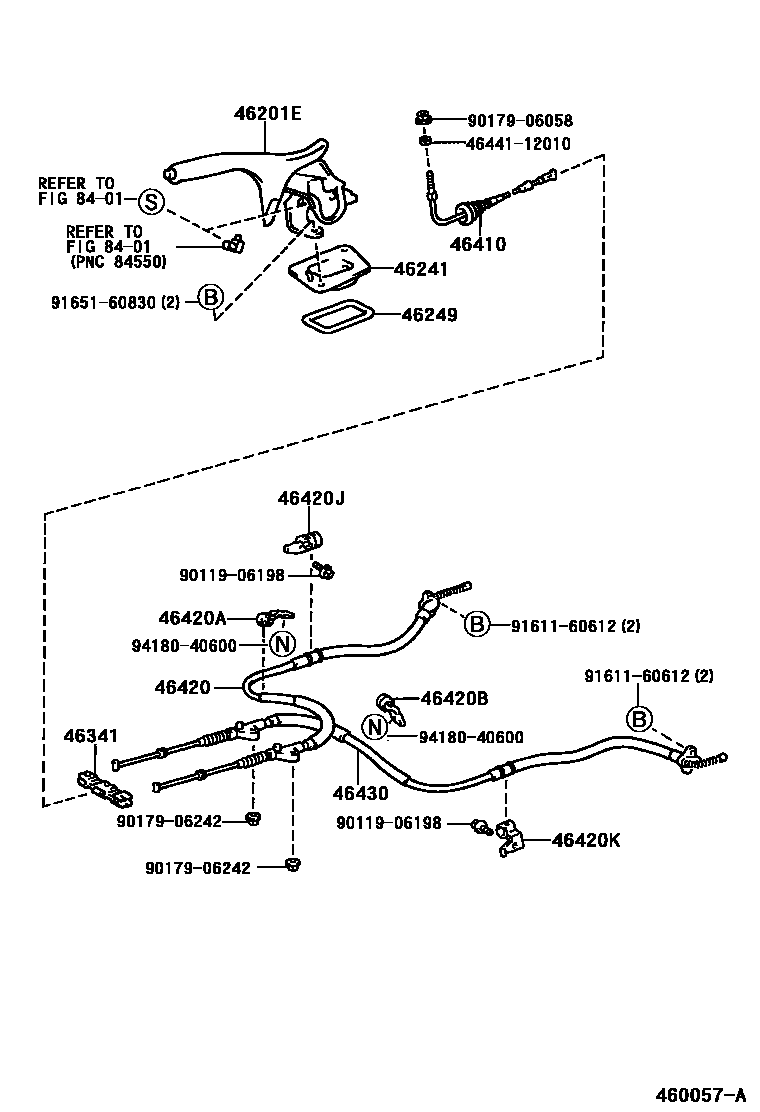

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20340-C0iAT210,ST210199601-199712

BLACK,TRIM1#,4#

46241BOOT, PARKING BRAKE LEVER

main46241-20170iAT210,ST210199601

46249SHIELD, PARKING BRAKE HOLE

main46249-20050iAT210,ST210199601

46341EQUALIZER, PARKING BRAKE

main46341-12020iAT210,ST210199601

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20430iAT210,ST210199601

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20351iAT210,ST210199601

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01771iAT210,ST210199601

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01772iAT210,ST210199601

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46451-20020iAT210,ST210199601

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46451-20030iAT210,ST210199601

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20361iAT210,ST210199601

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

4644112010NUT, WIRE ADJUSTING, NO.1

main46441-12010

9011906198

main90119-06198

9017906058

main90179-06058

9017906242

main90179-06242

9161160612

main91611-60612

9165160830

main91651-60830

9418040600

main94180-40600

19 parts on this diagram · 1 diagram in section
