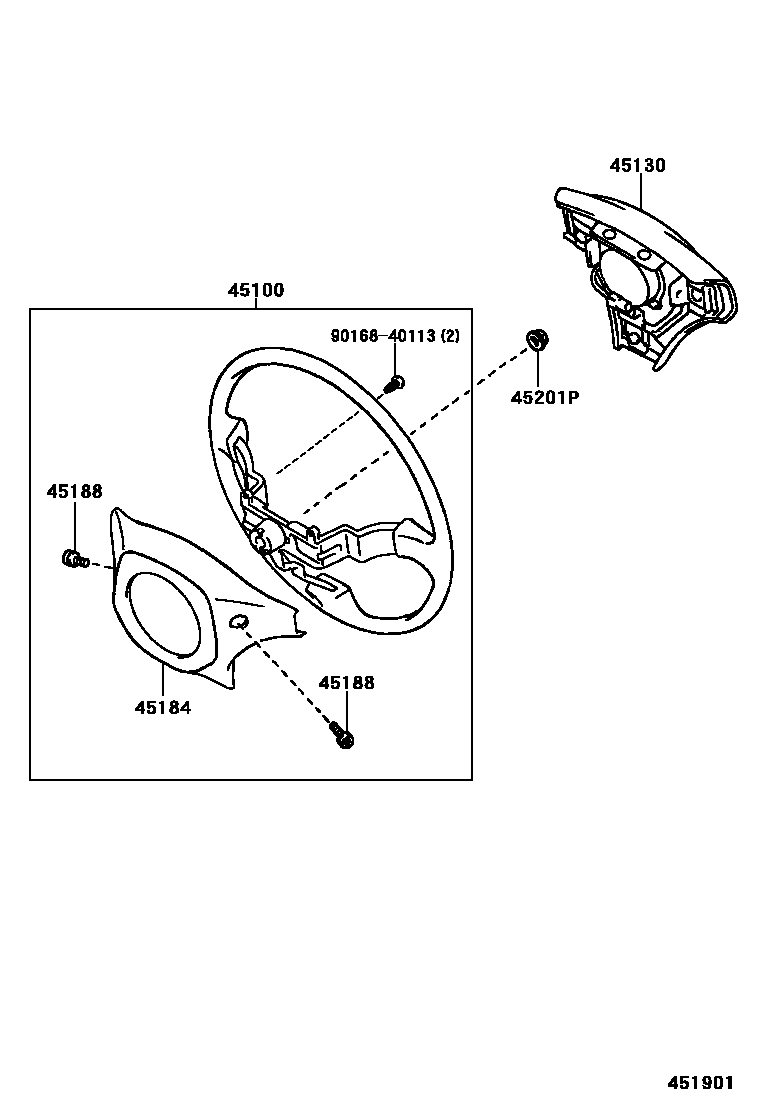

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-21020-B0iAT210,ST210199712

3-SPOKE,URETHANE,SHADOW GRAY,TRIM11

main45100-21020-B2iAT210,ST210199712

3-SPOKE,URETHANE,DK.CHARCOAL,TRIM17

main45100-2B510-B0iAT210,ST210199601-199712

3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

main45100-2B510-E0iAT210,ST210199601-199712

3-SPOKE,URETHANE,ANTELOPE,TRIM4#

45130BUTTON ASSY, HORN

main45130-21010-B0iAT210,ST210199712-199912

SHADOW GRAY,TRIM11

main45130-21010-B2iAT210,ST210199712-199912

DK.CHARCOAL,TRIM17

main45130-21030-B0iAT210,ST210199912

SHADOW GRAY,TRIM11

main45130-21030-B1iAT210,ST210199912

DK.CHARCOAL,TRIM17

main45130-2B360-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main45130-2B360-E0iAT210,ST210199601-199712

ANTELOPE,TRIM4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-20540-B0iAT210,ST210199601-199712

SHADOW GRAY,TRIM1#

main45184-20540-E0iAT210,ST210199612-199712

ANTELOPE,TRIM4#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60026×2iAT210,ST210199601

45201PNUT, STEERING WHEEL SET

main90179-12071iAT210,ST210199601

9016840113

main90168-40113

6 parts on this diagram · 2 diagrams in section
