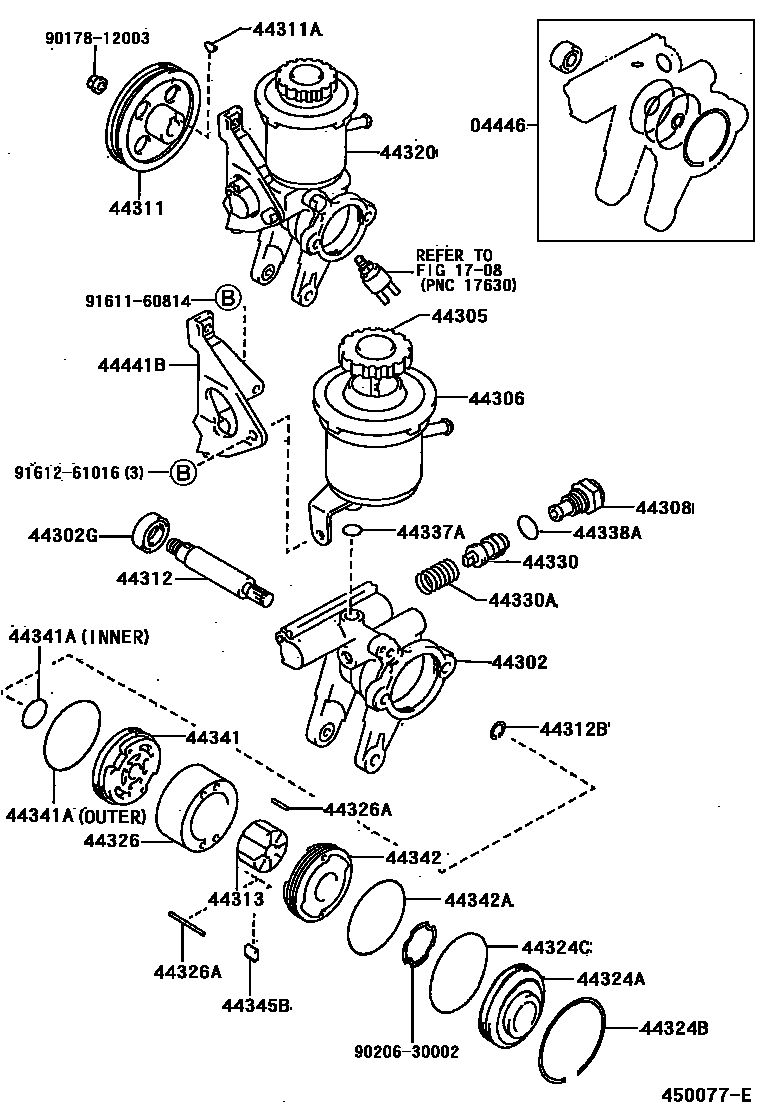

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20031iST210199601

main04446-20120iAT210199601

1708

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-12090iAT210199601

main44302-20030iST210199608-199712

HONG KONG SPEC

main44302-20100iST210199608

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iAT210199601-199608

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-12030iST210199601

sub44305-12040

main44305-22040iAT210199601

sub44305-22060

44306RESERVOIR SUB-ASSY, VANE PUMP OIL

main44306-20160iAT210199601

44308UNION SUB-ASSY, PRESSURE PORT

main44308-20020iAT210,ST210199601

44311PULLEY, VANE PUMP

main44311-12040iAT210199601

main44311-20060iST210199601

44311AKEY, VANE PUMP PULLEY

main90280-05008iAT210,ST210199601

44312SHAFT, VANE PUMP

main44312-12030iAT210,ST210199601

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iAT210,ST210199601

44313ROTOR, VANE PUMP

main44313-22040iAT210,ST210199601

NO MARK

main44313-22050iAT210,ST210199601

MARK 1

main44313-22060iAT210,ST210199601

MARK 2

main44313-22070iAT210,ST210199601

MARK 3

main44313-22080iAT210,ST210199601

MARK 4

44320PUMP ASSY, VANE

main44320-20530iAT210199601

main44320-20540iST210199608-199712

HONG KONG SPEC

main44320-20610iST210199608

44324AHOUSING, PUMP, REAR

main44324-12031iAT210,ST210199601

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iAT210,ST210199601

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-53006iAT210,ST210199601

sub90301-53007

44326RING, CAM(FOR VANE PUMP)

main44325-12110iAT210,ST210199601

NO MARK

main44325-12120iAT210,ST210199601

MARK 1

main44325-12130iAT210,ST210199601

MARK 2

main44325-12140iAT210,ST210199601

MARK 3

main44325-12150iAT210,ST210199601

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iAT210,ST210199601

L=28,OD=4.0

main90250-04049iAT210,ST210199601

L=43,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-20010iAT210199601

MARK A

sub44330-35191

main44330-20020iAT210199601

MARK B

sub44330-35201

main44330-20030iAT210199601

MARK C

sub44330-35211

main44330-20040iAT210199601

MARK D

sub44330-35221

main44330-20050iAT210199601

MARK E

sub44330-35231

main44330-20060iAT210199601

MARK F

sub44330-35241

main44330-20070iST210199601

MARK A

sub44330-32730

main44330-20080iST210199601

MARK B

sub44330-32740

main44330-20090iST210199601

MARK C

sub44330-32750

main44330-20100iST210199601

MARK D

sub44330-32760

main44330-20110iST210199601

MARK E

sub44330-32770

main44330-20120iST210199601

MARK F

sub44330-32780

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iAT210,ST210199601

44337UNION, POWER STEERING SUCTION PORT

main44337-20040iST210199601

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iAT210,ST210199610

main90301-12003iAT210,ST210199601-199610

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iAT210,ST210199601-199610

ID=19.5,OD=22.5

main90301-19013iAT210,ST210199610

ID=19.2,OD=22.3

sub90301-19018

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iAT210,ST210199601

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iAT210,ST210199601

INNER

sub90301-25008

main90301-52001iAT210,ST210199601

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iAT210,ST210199601

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iAT210,ST210199601

44345BPLATE, VANE PUMP

main44345-12010×10iAT210,ST210199601

L=14.997

main44345-12020×10iAT210,ST210199601

L=14.995

main44345-12030×10iAT210,ST210199601

L=14.993

main44345-12040×10iAT210,ST210199601

L=14.991

main44345-12050×10iAT210,ST210199601

L=14.989

44441BBRACKET, PUMP, FRONT

main44441-12040iAT210199601

9017812003

main90178-12003

9020630002

main90206-30002

9161160814

main91611-60814

9161261016

main91612-61016

33 parts on this diagram · 2 diagrams in section
