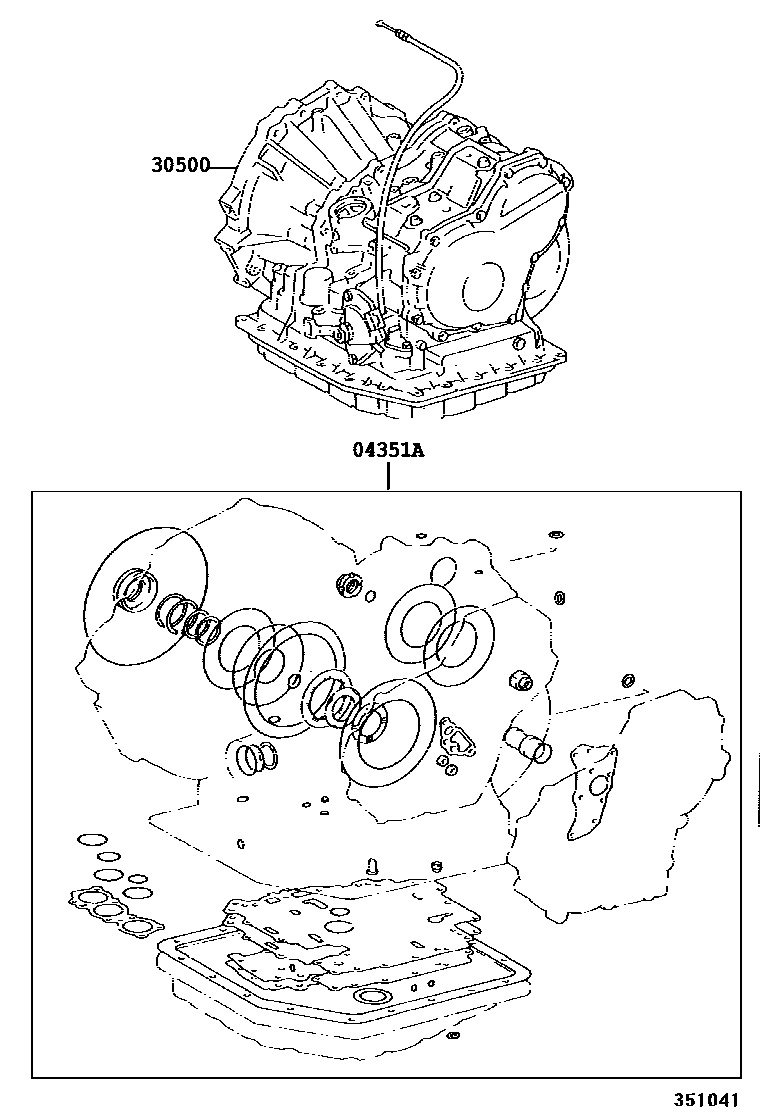

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12100i199808

main04351-12120i199601-199808

main04351-16090i199601-199712

30500TRANSAXLE ASSY, AUTOMATIC

main30500-2B530i199601-199603

main30500-2B531i199603-199712

main30500-2B550i199601-199808

main30500-2B620i199601-199712

AXLE CODE=-04A

main30500-2B710i199712

main30500-2B790i199808

2 parts on this diagram · 2 diagrams in section
