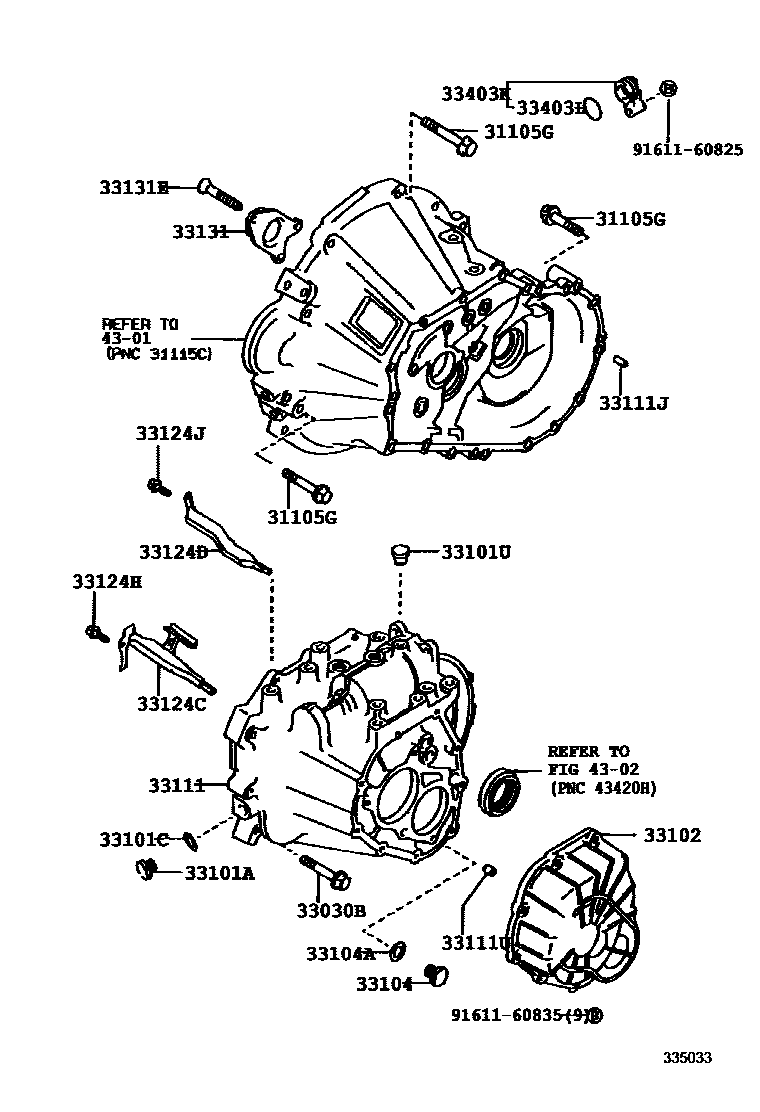

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX43-26
*12-1.25PX75-30
*12-1.25PX55-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
sub90109-12073
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
33124CPIPE, OIL RECEIVER, NO.1(MTM)
sub33124-20050
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
sub91611-G0820
33124JBOLT, W/WASHER
sub91611-G0820
33131RETAINER, BEARING, FRONT(MTM)
33131ESCREW(FOR BEARING RETAINER FRONT)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403LRING, O
4301
4302
9161160825
main91611-60825
9161160835
main91611-60835
23 parts on this diagram · 1 diagram in section
