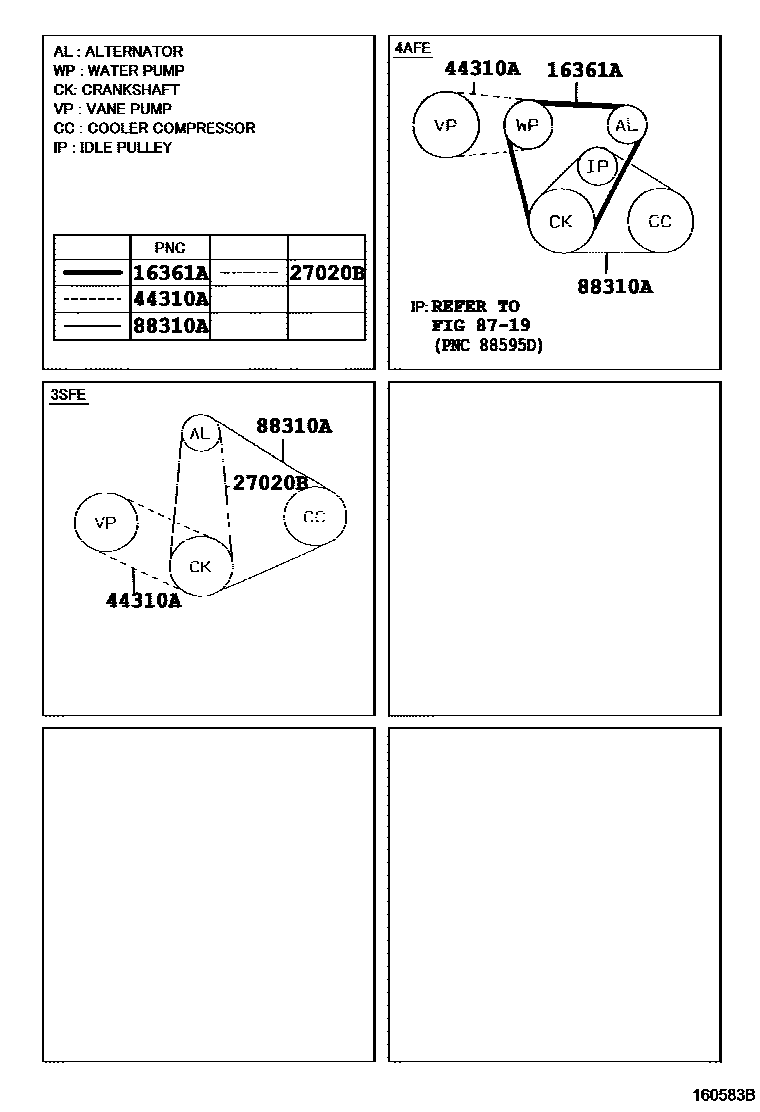

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91055i4AFE..AT210199601

L=970,(L)

main99365-20970i4AFE..AT210199601

L=970,(J)

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i3SFE..ST210199601

44310ABELT, V(FOR VANE PUMP)

main99363-80630iAT210199601-199712

main99363-80760iST210199601-199712

main99363-90630iAT210199712

L=630

main99363-90760iST210199712

L=760

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-20850iAT210199601-199712

L=850,MITSUBOSHI

main99364-30850iAT210199712-199808

L=850,MITSUBOSHI

main99364-90850iAT210..ATM199808

L=850,BANDO

main99365-31110iST210199712

L=1110,MITSUBOSHI

main99365-91110iST210199712

L=1110,BANDO

5 parts on this diagram · 1 diagram in section
