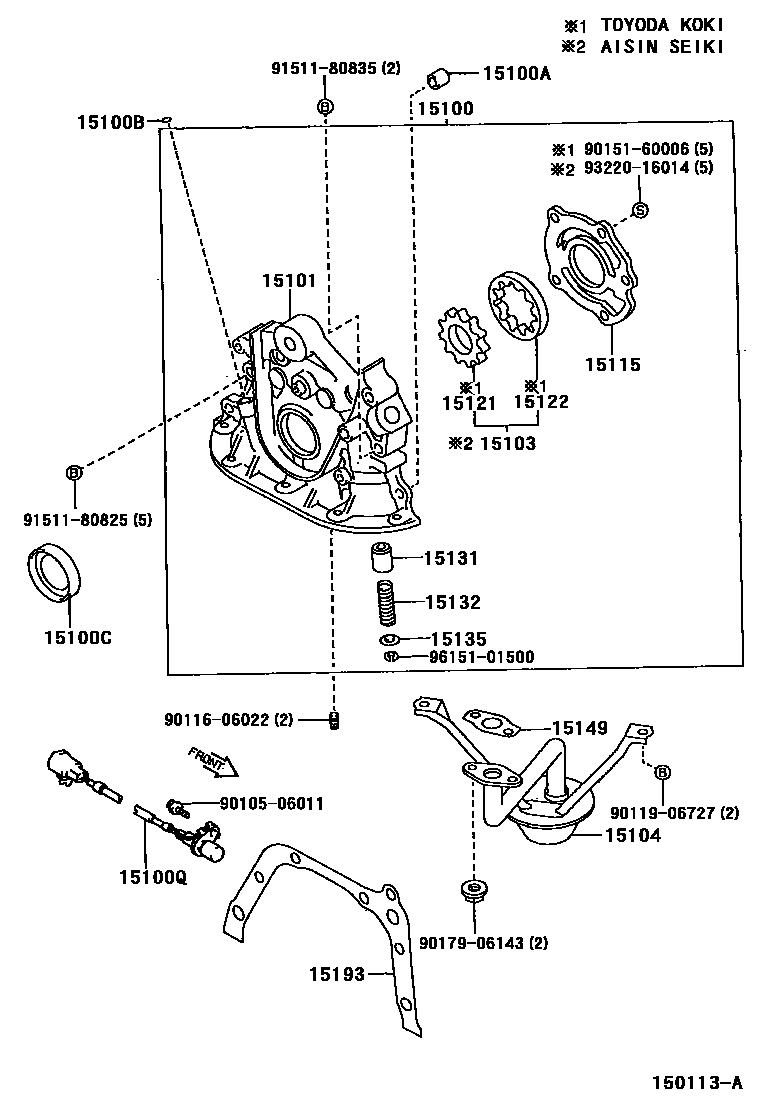

ENGINE OIL PUMP
15100PUMP ASSY, OIL
W(EGR)
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15101BODY SUB-ASSY, OIL PUMP
AISIN SEIKI
TOYODA KOKI
15103GEAR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
W(EGR)
15115COVER, OIL PUMP
TOYODA KOKI
15121GEAR, OIL PUMP DRIVE
15122GEAR, OIL PUMP DRIVEN
15131VALVE, OIL PUMP RELIEF
TOYODA KOKI
AISIN SEIKI
15132SPRING, OIL PUMP RELIEF VALVE
TOYODA KOKI
15135RETAINER, OIL PUMP RELIEF VALVE
AISIN SEIKI
TOYODA KOKI
15149GASKET, OIL STRAINER FLANGE
15193GASKET, OIL PUMP
9010506011
main90105-06011
9011606022
main90116-06022
9011906727
main90119-06727
9015160006
main90151-60006
9017906143
main90179-06143
9151180825
main91511-80825
9151180835
main91511-80835
9322016014
main93220-16014
9615101500
main96151-01500
25 parts on this diagram · 2 diagrams in section
